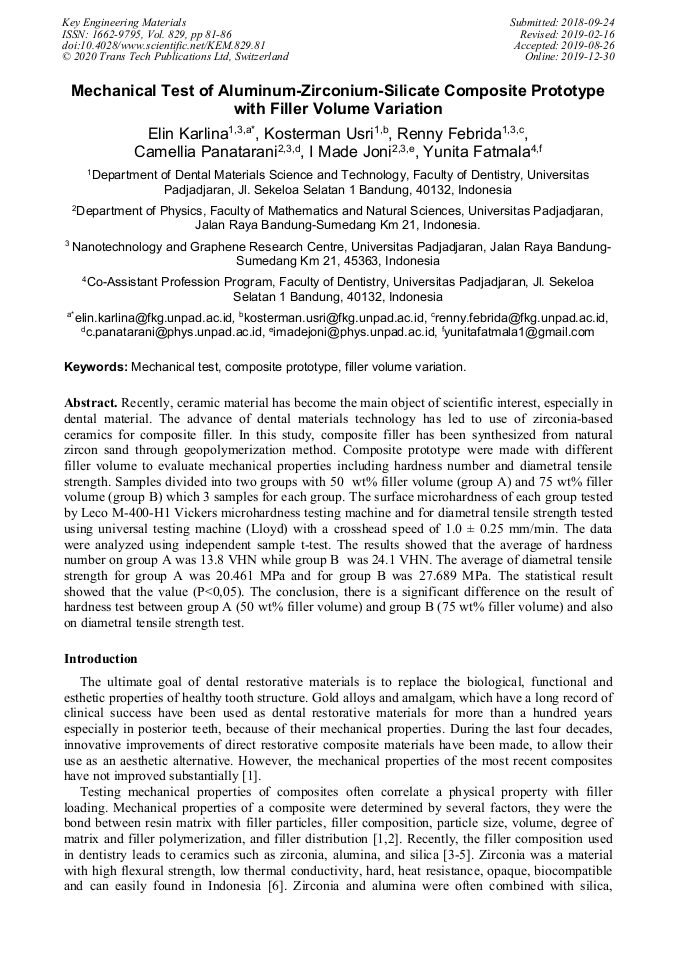

Mechanical Test of Aluminum-Zirconium-Silicate Composite Prototype with Filler Volume Variation

Abstract:

Recently, ceramic material has become a main object of scientific interest especially in dental material. The advance of dental materials technology has led to use of zirconia-based ceramics for composite filler. In this study, composite filler has been synthesized from natural zircon sand through geopolymerization method. Composite prototype were made with different filler volume to evaluate mechanical properties including hardness number and diametral tensile strength. Samples divided into two groups with 50 wt% filler volume (group A) and 75 wt% filler volume (group B) which 3 samples for each group. The surface micro hardness of each group tested by Leco M-400-H1 vickers microhardness testing machine and for diametral tensile strength tested using universal testing machine (Lloyd) with crosshead speed of 1,0 ± 0,25 mm/min. The data were analyzed using independent sample t-test. The results showed that the average of hardness number on group A was 13,8 VHN while for group B was 24,1 VHN. The average of diametral tensile strength for group A was 20,461 MPa and 27,689 MPa for group B. Statistical result showed that the value (P<0,05). The conclusion, there is a signifficant difference on the result of hardness test between group A (50 wt% filler volume) and group B (75 wt% filler volume) and also on diametral tensile strength test.

• Periodical: Key Engineering Materials (Volume 829)
• Pages: 81-86
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.829.81
• Online since: December 2019
• Authors: Elin Karlina*, Kosterman Usri, Renny Febrida, Camellia Panatarani, I Made Joni, Yunita Fatmala
• Keywords: Composite Prototype, Filler Volume Variation, Mechanical Test

References

[1] D.C. Salazar, J. Dennison, P. Yaman, Inorganic and prepolymerized filler analysis of four resin composites, J. Op. Dent. 38 6 (2011) 8-34.

DOI: 10.2341/12-474-l

[2] J. Kleczewska, Material Aspects of Exploitation of Dental Composites Based on Dimethacrylate Resins, Thesis.Technical University of Lodz Departement of Chemistry Institute of Polymer and Dye Technology, 2011, pp.15-39.

[3] Z. Hasratiningsih, A. Cahyanto, V. Takarini, E. Karlina, N. Djustiana, R. Febrida, K. Usri, Y. Faza, A. Hardiansyah, B.S. Purwasasmita, Basic properties of PMMA reinforced using ceramic particles of ZrO2-Al2O3-SiO2 coated with two types of coupling agents, Key Eng. Mater. 696 (2016) 93-98.

DOI: 10.4028/www.scientific.net/kem.696.93

[4] E. Karlina, S. Susra, Y. Fatmala, H. M. Hartoyo, V. Takarini, K. Usri, R. Febrida, N. Djustiana, C. Panatarani, I. M. Joni. Morphological Characterization of ceramic fillers made from Indonesian natural sand as restorative dental materials, AIP Conf. Proc. 1927, 030031 (2018);.

DOI: 10.1063/1.5021224

[5] N. Djustiana, N. Greviana, Y. Faza, Sunarso, Synthesis and characterization of dental composite, AIP Conf. Proc. 1927, 020003 (2018),.

DOI: 10.1063/1.5021191

[6] N. Djustiana, R. Febrida, C. Panatarani, Y. Imarundha, E. Karlina, I. M. Joni. Microstructure analysis of zirconia-alumina-silica particles made from Indonesia natural sand synthesized using spray pyrolysis method, Key Eng. Mater. 720 (2017) 285-289.

DOI: 10.4028/www.scientific.net/kem.720.285

[7] M.A. Abdelaazis, Synthesis of Nanocomposite with Nano-TiO2 Particles and Their Application as Dental Materials, Thesis Magister Degree of Technology Dental Technology. Cape Peninsula University of Technology, 2012, pp.16-20.

[8] S. Hussain, Textbook of Dental Materials. 1st ed., New Delhi. Jaypee, 2004, pp.18-19, 149-152.

[9] T.E. Anfe, et al., Microhardness assessment of different commercial brands of resin composites with different degrees of translucence, J. Braz. Oral Res. 22 4 (2008) 358–363.

DOI: 10.1590/s1806-83242008000400013

[10] G.M. Eduardo, et al., Relationship between filler content and selected mechanical properties of six micro hybrid composites, J. Rev. Odonto. Cienc. 26 2 (2011) 151-155.

DOI: 10.1590/s1980-65232011000200010

[11] K.J. Annusavice., Phillips Science of Dental Material 11th ed., Missouri, Elsevier, 2003, 401-430, 656-657.

[12] C. Onuoha, et al., Effect of filler loading and particle size on the mechanical properties of periwinkle shell-filled recycled polypropylene composites. Am. J. of Engin. Res. (AJER). 6 4 (2017)72-79.

[13] J. F. McCabe, A.W.G. Walls, Applied Dental Materials, Oxford: Blackwell, 2008, pp.110-114.

[14] A.D. Bona, et al., Flexural and diametral tensile strength of composite resins, J. Braz. oral res. 22 (2008) 1.

DOI: 10.1590/s1806-83242008000100015

[15] A.P. Dhartono, et al., Synthesis of alumina stabilized zirconia-white carbon black nanocomposite for direct resin bonded prosthesis application, Indonesian Dental Student Journal, 31 (2015) 19-29.

[16] J. Musil, et al., thermal stability of alumina thin film containing gamma Al2O3 phase prepared by reactive magnetron sputtering, Appl. Surf. Sci. 257 3 (2010) 1058-1062.

DOI: 10.1016/j.apsusc.2010.07.107

[17] I. Denry, J.R. Kelly, State of the art of zirconia for dental application, J. Dent. Mater. 24 (2008) 299-307.

[18] Y. Faza, Z. Hasratiningsih, A. Harmaji, I. M. Joni, Preparation and characterization of zirconia-alumina system via solution and solid phase mixing method, AIP Conf. Proc. 1927, 030030 (2018);.

DOI: 10.1063/1.5021223

[19] K.M. Rode, Y. Kawano, M. L Turbino, Evaluation of curing light distance on resin composite microhardness and polymerization, J. Op. Dent. 32 6 (2007) 571-576.

DOI: 10.2341/06-163

[20] S. Akram, et al., Effect of different irradiation times in microhardness and depth of cure of a nanocomposite resin, J. Coll. Physicians Surg. Pak. 21 7 (2011) 411-414.

[21] S.S Thiab, Q.A.K. Mohammad, A. Mahdi, The effect of shade and curing time on depth of cure (DOC) in two types of composites, polymerized with a halogen light cure system, J. Kufa Med. 13 1(2010) 168-185.
