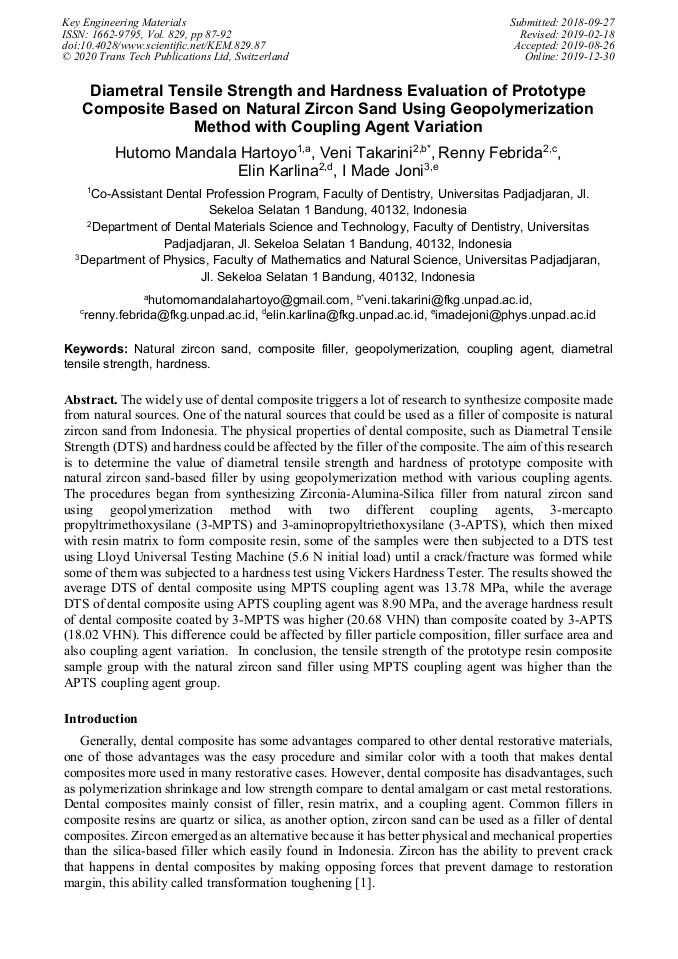

Diametral Tensile Strength and Hardness Evaluation of Prototype Composite Based on Natural Zircon Sand Using Geopolymerization Method with Coupling Agent Variation

Abstract:

The widely use of dental composite triggers a lot of research to synthesize composite made from natural sources. One of the natural sources that could be used as a filler of composite is natural zircon sand from Indonesia. The physical properties of dental composite, such as Diametral Tensile Strength (DTS) and hardness could be affected by the filler of the composite. The aim of this research is to determine the value of diametral tensile strength and hardness of prototype composite with natural zircon sand-based filler by using geopolymerization method with various coupling agents. The procedures began from synthesizing Zirconia-Alumina-Silica filler from natural zircon sand using geopolymerization method with two different coupling agents, 3-mercapto propyltrimethoxysilane (3-MPTS) and 3-aminopropyltriethoxysilane (3-APTS), which then mixed with resin matrix to form composite resin, some of the samples were then subjected to a DTS test using Lloyd Universal Testing Machine (5.6 N initial load) until a crack/fracture was formed while some of them was subjected to a hardness test using Vickers Hardness Tester. The results showed the average DTS of dental composite using MPTS coupling agent was 13.78 MPa, while the average DTS of dental composite using APTS coupling agent was 8.90 MPa, and the average hardness result of dental composite coated by 3-MPTS was higher (20.68 VHN) than composite coated by 3-APTS (18.02 VHN). This difference could be affected by filler particle composition, filler surface area and also coupling agent variation. In conclusion, the tensile strength of the prototype resin composite sample group with the natural zircon sand filler using MPTS coupling agent was higher than the APTS coupling agent group.

• Periodical: Key Engineering Materials (Volume 829)
• Pages: 87-92
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.829.87
• Online since: December 2019
• Authors: Hutomo Mandala Hartoyo, Veni Takarini*, Renny Febrida, Elin Karlina, I Made Joni
• Keywords: Composite Filler, Coupling Agent, Diametral Tensile Strength, Geopolymerization, Hardness, Natural Zircon Sand

References

[1] Z. Hasratiningsih, A. Cahyanto, V. Takarini, et al, Basic properties of PMMA reinforced using ceramics particle of ZrO2-Al2O3-SiO2 coated with two types of coupling agents, Key Eng. Mater. 696 (2016) 93-98.

DOI: 10.4028/www.scientific.net/kem.696.93

[2] K.J. Anusavice, C. Shen, H.R. Rawls, Phillip's Science of Dental Materials, twelfth ed., Saunders Elsevier, Missouri, (2012).

[3] R.L. Sakaguchi and J.M. Powers, Craig's Restorative Dental Materials, thirteenth ed., Elsevier Mosby, Philadelphia, (2012).

[4] Shin-Etsu, Shin-Etsu silicone silane coupling agent, Tokyo, Japan, 2015, pp.18-23.

[5] J.A. Howarter and J.P. Youngblood, Optimization of silica silanization by 3-aminopropyl triethoxy silane, Langmuir 22 (2006) 11142-11147.

DOI: 10.1021/la061240g

[6] Y.L. Li, C.F. Kuan, C.H. Chen, et al, Preparation, thermal stability and electrical properties of PMMA/functionalized graphene oxide nanosheets composites. Mater. Chem. Phys. 134 (2012) 677-685.

DOI: 10.1016/j.matchemphys.2012.03.050

[7] R.M. Pasternack, S.R. Amy, and Y.J. Chabal, Attachment of 3-(aminopropyl) triethoxysilane on silicon oxide surfaces: Dependence on solution temperature, Langmuir 24 (2008) 12963-12971.

DOI: 10.1021/la8024827

[8] M. Hu, S. Noda, T. Okubo, et al, Structure and morphology of self-assembled 3-mercaptopropyltrimethoxy silane layers on silicon oxide, Appl. Surf. Sci. 181 (2001) 307-316.

DOI: 10.1016/s0169-4332(01)00399-3

[9] M.C. Soylu, W.H. Shih, and W.Y. Shih, Insulation by solution 3-mercaptopropyltrimethoxy silane (MPS) coating: Effect of pH, water, and MPS content, Ind. Eng. Chem. Res. 52 (2013) 2590-2597.

DOI: 10.1021/ie302231g

[10] R. Van Noort, Introduction to Dental Materials, third ed., Mosby Elsevier, London, (2007).
