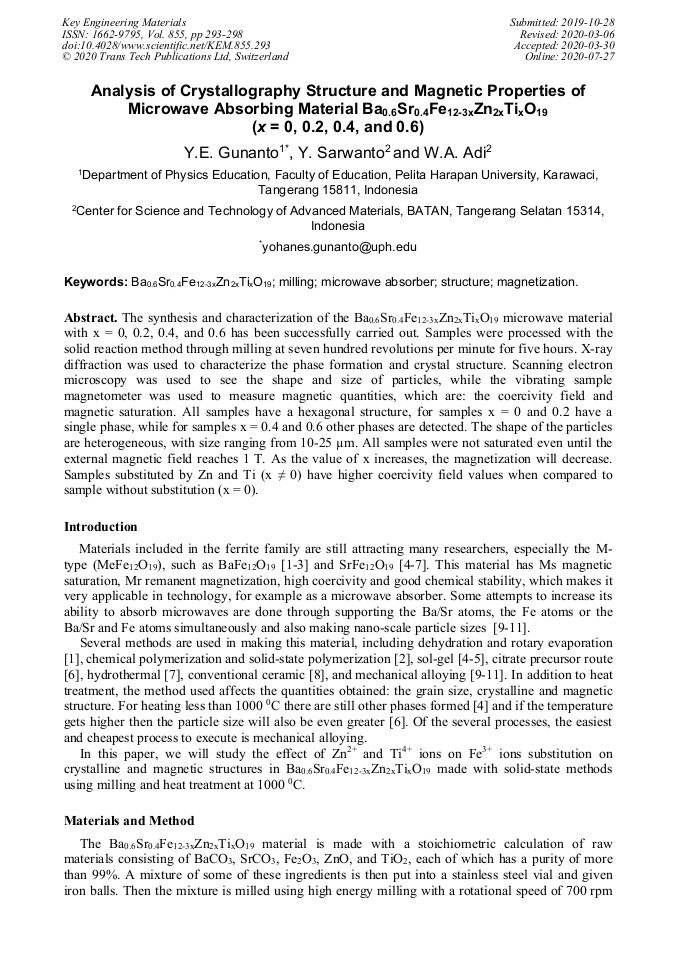

Analysis of Crystallography Structure and Magnetic Properties of Microwave Absorbing Material Ba_0.6Sr_0.4Fe_12-3xZn_2xTi_xO₁₉ (X = 0, 0.2, 0.4, and 0.6)

Abstract:

The synthesis and characterization of the Ba_0.6Sr_0.4Fe_12-3xZn_2xTi_xO₁₉ microwave material with x = 0, 0.2, 0.4, and 0.6 has been successfully carried out. Samples were processed with the solid reaction method through milling at seven hundred revolutions per minute for five hours. X-ray diffraction was used to characterize the phase formation and crystal structure. Scanning electron microscopy was used to see the shape and size of particles, while the vibrating sample magnetometer was used to measure magnetic quantities, which are: the coercivity field and magnetic saturation. All samples have a hexagonal structure, for samples x = 0 and 0.2 have a single phase, while for samples x = 0.4 and 0.6 other phases are detected. The shape of the particles are heterogeneous, with size ranging from 10-25 μm. All samples were not saturated even until the external magnetic field reaches 1 T. As the value of x increases, the magnetization will decrease. Samples substituted by Zn and Ti (x ≠ 0) have higher coercivity field values when compared to sample without substitution (x = 0).

• Periodical: Key Engineering Materials (Volume 855)
• Pages: 293-298
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.855.293
• Online since: July 2020
• Authors: Yohanes Edi Gunanto*, Yosef Sarwanto, Wisnu Ari Adi
• Keywords: Ba_0.6Sr_0.4Fe_12-3xZn_2xTi_xO₁₉, Magnetization, Microwave Absorber, Milling, Structure

References

[1] Z. Durmus, H. Sozeri, M. S. Toprak and A. Baykal, The Effect of Condensation on the Morphology and Magnetic Properties of Modified Barium Hexaferrite (BaFe12O19),, Nano-Micro Lett. 3 (2) (2011) 108-114.

DOI: 10.1007/bf03353659

[2] T. B. Ghzaiel, W. Dhaoui, and F. Mazaleyrat. Magnetic behaviour of Polyani- line/BaFe12O19 composites synthesised by two different pathways. Symposium de Génie Électrique 2014 (Jul 2014) Cachan, France. ‌hal-01065244‌.

[3] H. Belrhazi, M. Y. E. Hafidi and M. E. Hafidi, Permanent Magnets Elaboration from BaFe12O19 Hexaferrite Material: Simulation and Prototype. Res Dev Material Sci. 11(2). RDMS.000757 (2019).

DOI: 10.31031/rdms.2019.11.000757

[4] Y. C. Wong, J. Wang, and G B. The, Structural and magnetic studies of SrFe12O19 by sol-gel method, Procedia Engineering 76 ( 2014 ) 45 – 52.

DOI: 10.1016/j.proeng.2013.09.246

[5] A. Z. Eikeland, M. Stingaciu, A. H. Mamakhel, M. S. Múzquiz, and M. Christensen, Enhancement of magnetic properties through morphology control of SrFe12O19 nanocrystallites, SCIENTIFIC REPORTS (2018) 8:7325.

DOI: 10.1038/s41598-018-25662-8

[6] B. Liu, S. Zhang, B. M. Steenari, and C. Ekberg, Controlling the Composition and Magnetic Properties of Nano-SrFe12O19 Powder Synthesized from Oily Cold Mill Sludge by the Citrate Precursor Method, Materials 12 (2019) 1250.

DOI: 10.3390/ma12081250

[7] M. Stingaciu, A. Z. Eikeland, F. H. Gjørup, S. Deledda, and M. Christensen, Optimization of magnetic properties in fast consolidated SrFe12O19 nanocrystallites, RSC Adv., 9 (2019) 12968.

DOI: 10.1039/c9ra02440a

[8] P. A. Marino, V. A. Lapshinsky, C. Pupo, J. Matilla, and A. Vega, Obtaining and Structural Characterization of M-type Hexaferrites Doped with Two Cations in the Fe3+ Sites" in MEPhI's Section of the Scientific Session on "Breakthrough directions of scientific research at MEPhI: Development prospects within the Strategic Academic Units,, KnE Engineering (2018) 328–335.

DOI: 10.18502/keg.v3i6.3011

[9] Y. E. Gunanto, M. P. Izaak, S. S. Silaban, and W. A. Adi, Effect of milling time on microwave absorption ability on barium-hexaferrite nanoparticles, l of Physics: Conf. Series41011 (2018) 012058.

DOI: 10.1088/1742-6596/1011/1/012058

[10] Y. E. Gunanto, L. Cahyadi, and W. A. Adi, Effect of Mn and Ti substitution on the reflection loss characteristic of Ba0.6Sr0.4Fe11-zMnTizO19 (z = 0, 1, 2 and 3), AIP Conference Proceedings 1725 (2016) 020023.

DOI: 10.1063/1.4945477

[11] A. González-Angeles, J. Lipka, A. Grusková, J. Sláma, V. Jančárik and V. Slugeň, Magnetic Comparison of BaCa and BaSr Substituted Hexaferrite Powders, J. Phys.: Conf. Ser. 217 (2010) 012137.

DOI: 10.1088/1742-6596/217/1/012137

[12] Vaishali V. Soman, V. M. Nanoti, D. K. Kulkarni, and Vijay V. Soman, Effect of substitution of Zn-Ti on magnetic and dielectric properties of BaFe12O19, Physics Procedia 54 (2014) 30 – 37.

DOI: 10.1016/j.phpro.2014.10.033

[13] K. Watanabe, K. Kakizaki, and K. Kamishima, Synthesis and Magnetic Properties of (Zn2+Ti4+ ) Substituted W-type and Y-type Ferrites, J. Magn. Soc. Jpn., 41 (2017) 127-131.

DOI: 10.3379/msjmag.1710r001
