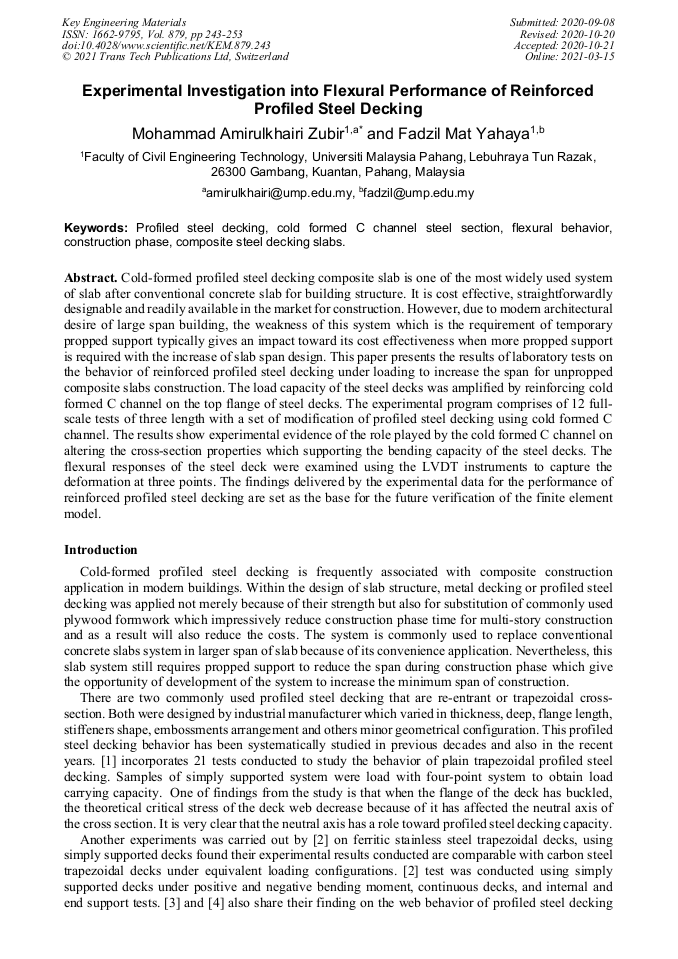

Experimental Investigation into Flexural Performance of Reinforced Profiled Steel Decking

Abstract:

Cold-formed profiled steel decking composite slab is one of the most widely used system of slab after conventional concrete slab for building structure. It is cost effective, straightforwardly designable and readily available in the market for construction. However due to modern architectural desire of large span building, this system weakness that is the requirement of temporary propped support may have an impact toward its cost effectiveness. Generally more propped support are required with the increase of slab span design.This paper present the result of laboratory test on the behavior of reinforced profiled steel decking under loading to increase the span for unpropped composite slabs construction. The load capacity of the steel decks was amplified by reinforcing cold formed C channel on the top flange of steel decks. The experimental program comprises 12 full-scale tests of three length with a set of modification of profiled steel decking using cold formed C channel.The result shown experimental evidence of the role played by the cold formed C channel on altering the cross section properties which supporting the bending capacity of the steel decks. The flexural response of the steel deck was examined using the LVDT instruments to capture the deformation at three points. The finding delivered by the experimental data for the performance of reinforced profiled steel decking are set as the base for the future verification of finite element model.

• Periodical: Key Engineering Materials (Volume 879)
• Pages: 243-253
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.879.243
• Online since: March 2021
• Authors: Mohammad Amirulkhairi Zubir*, Fadzil Mat Yahaya
• Keywords: Cold Formed C Channel Steel Section, Composite Steel Decking Slabs, Construction Phase, Flexural Behavior, Profiled Steel Decking

References

[1] A. Bergfelt, B. Edlund, Experiments on trapezoidal steel sheets in experiment bending, Third International Specialty conference on cold-formed steel structures, St Louis, Missouri, USA, 1975, pp.285-315.

[2] I. Arrayago, E. Real, E. Mirambell, F. Marimon, M. Ferrer, Experimental study on ferritic stainless steel trapezoidal decks for composite slabs in construction stage, Thin-Walled Structures, 134 (2019), 255-267.

DOI: 10.1016/j.tws.2018.10.012

[3] W.T. Tse, K.F. Chung, Web crippling behaviour of laterally restrained cold-formed steel re-entrant profiled deckings, J. Constr. Steel Res., 64 (7–8) (2008), 785-801.

DOI: 10.1016/j.jcsr.2008.01.033

[4] H. Hofmeyer, J.G.M. Kerstens, H.H. Snijder, M.C.M. Bakker, Combined web crippling and bending moment failure of first-generation trapezoidal steel sheeting, J. Constr. Steel Res., 58(12) (2002), 1509-1529.

DOI: 10.1016/s0143-974x(02)00004-4

[5] C. H. Raebel, J. A. Schultz, B.Whitsell, Experimental investigation into acceptable design methods for cold-formed metal deck, J. Constr. Steel Res., 172 (2020), Article 106176.

DOI: 10.1016/j.jcsr.2020.106176

[6] F. Nader, R. Payman, Analytical Shape Optimization of Metal Deck with respect to Bending Capacity, 3rd International Conference on Steel & Structure, Tehran, Iran, (2018).

[7] H. Hofmeyer, J.G.M. Kerstens, H.H. Snijder, M.C.M. Bakker, New prediction model for failure of steel sheeting subject to concentrated load (web crippling) and bending, Thin-Walled Structures, 39 (2001), 773-796.

DOI: 10.1016/s0263-8231(01)00032-5

[8] R. Landolfo, F.M. Mazzolani, Ultimate behaviour of trapezoidal steel sheets in bending, 12th International Speciality Conference on Recent Research and Developments in Cold-Formed Steel Design and Construction, St Louis, Missouri, USA, (1994).

[9] V.V. Degtyarev, Concentrated load distribution in corrugated steel decks: a parametric finite element study, Eng. Struct., 206 (2020).

DOI: 10.1016/j.engstruct.2019.110158

[10] J.M. Davies, C. Jiang, Design procedures for profiled metal sheeting and decking, Thin-Walled Structures, 27 (1997), 43-53.

DOI: 10.1016/0263-8231(96)00019-5

[11] J.M.S. Franco, E. Batista, Buckling behavior and strength of thin-walled stiffened trapezoidal CFS under flexural bending, Thin-Walled Struct., 117 (2017), pp.268-281.

DOI: 10.1016/j.tws.2016.11.027

[12] V. V.Degtyarev, Flexural strength of steel decks with square and rectangular holes: Numerical studies, J. Constr. Steel Res., 172 (2020), Article 106241.

DOI: 10.1016/j.jcsr.2020.106241

[13] Eurocode 4 : Design of composite steel and concrete structures, Part 1-1: General rules and rules for buildings, EN 1994-1-1:2004, European Committee for Standardization, Brussels, Belgium, (2004).

DOI: 10.1680/dgte4.31517

[14] ANSI C-2017, Standard for Composite Steel Floor Deck-Slabs, American National Standards Institute/Steel Deck Institute, United State of America, (2017).

[15] Eurocode 3 : Design of steel structures, Part 1-3: General rules. Supplementary rules for cold-formed members and sheeting, EN 1993-1-3:2006, European Committee for Standardization, Brussels, Belgium, (2006).

DOI: 10.3403/02338401u
