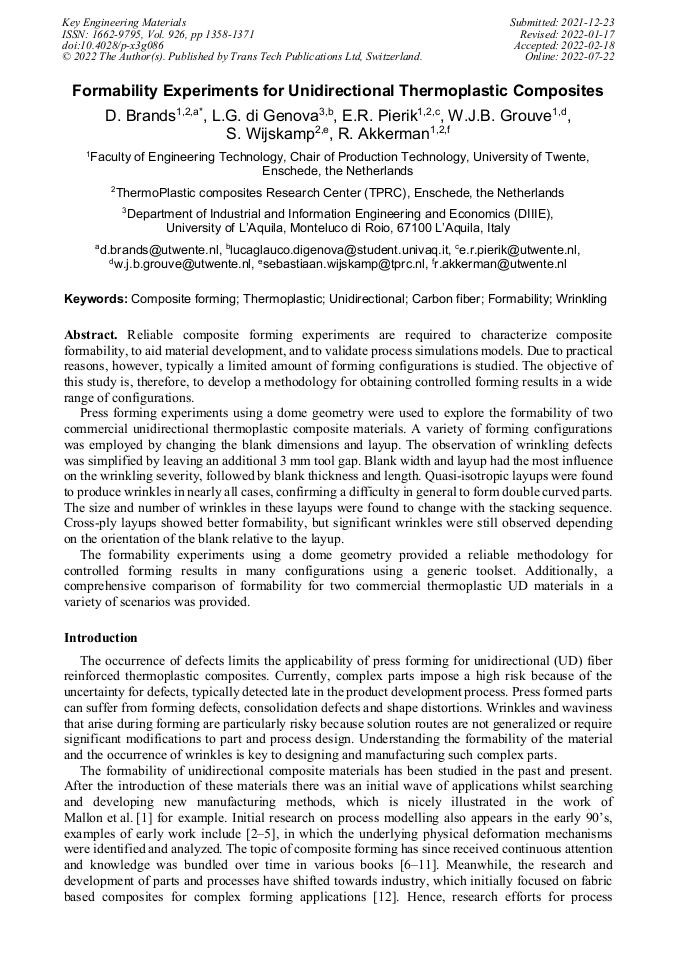

Formability Experiments for Unidirectional Thermoplastic Composites

Abstract:

Reliable composite forming experiments are required to characterize composite formability, to aid material development, and to validate process simulations models. Due to practical reasons, however, typically a limited amount of forming configurations is studied. The objective of this study is, therefore, to develop a methodology for obtaining controlled forming results in a wide range of configurations. Press forming experiments using a dome geometry were used to explore the formability of two commercial unidirectional thermoplastic composite materials. A variety of forming configurations was employed by changing the blank dimensions and layup. The observation of wrinkling defects was simplified by leaving an additional 3 mm tool gap. Blank width and layup had the most influence on the wrinkling severity, followed by blank thickness and length. Quasi-isotropic layups were found to produce wrinkles in nearly all cases, confirming a difficulty in general to form double curved parts. The size and number of wrinkles in these layups were found to change with the stacking sequence. Cross-ply layups showed better formability, but significant wrinkles were still observed depending on the orientation of the blank relative to the layup. The formability experiments using a dome geometry provided a reliable methodology for controlled forming results in many configurations using a generic toolset. Additionally, a comprehensive comparison of formability for two commercial thermoplastic UD materials in a variety of scenarios was provided.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 1358-1371
• DOI: https://doi.org/10.4028/p-x3g086
• Online since: July 2022
• Authors: Dennis Brands*, Luca G. di Genova, E. Rens Pierik, Wouter Johannes Bernardus Grouve, Sebastiaan Wijskamp, Remko Akkerman
• Keywords: Carbon Fiber, Composite Forming, Formability, Thermoplastic, Unidirectional, Wrinkling

References

[1] Mallon PJ, O'Brádaigh CM, Pipes RB. Polymeric diaphragm forming of complex-curvature thermoplastic composite parts. Composites 1989;20:48–56. https://doi.org/10.1016/0010-4361(89)90682-4.

DOI: 10.1016/0010-4361(89)90682-4

[2] de Luca P, Lefébure P, Pickett AK. Numerical and experimental investigation of some press forming parameters of two fibre reinforced thermoplastics: APC2-AS4 and PEI-CETEX. Compos Part A Appl Sci Manuf 1998;29:101–10. https://doi.org/10.1016/S1359-835X(97)00060-2.

DOI: 10.1016/s1359-835x(97)00060-2

[3] Ó Brádaigh CM, McGuinness GB, Pipes RB. Numerical analysis of stresses and deformations in composite materials sheet forming: central indentation of a circular sheet. Compos Manuf 1993;4:67–83. https://doi.org/10.1016/0956-7143(93)90074-I.

DOI: 10.1016/0956-7143(93)90074-i

[4] Tam AS, Gutowski TG. The kinematics for forming ideal aligned fibre composites into complex shapes. Compos Manuf 1990;1:219–28. https://doi.org/10.1016/0956-7143(90)90044-W.

DOI: 10.1016/0956-7143(90)90044-w

[5] Golden K, Rogers TG, Spencer AJM. Forming kinematics of continuous fibre reinforced laminates. Compos Manuf 1991;2:267–77. https://doi.org/10.1016/0956-7143(91)90149-B.

DOI: 10.1016/0956-7143(91)90149-b

[6] Advani SG, Sozer EM. Process Modeling in Composites Manufacturing. Marcel Dekker, Inc.; (2003).

[7] Cogswell FN. Thermoplastic aromatic polymer composites. Butterworth-Heinemann Ltd; (1992).

[8] Bhattacharyya D. Composite Sheet Forming. Elsevier; (1997).

[9] Long AC. Composite forming technologies. 1st ed. Woodhead Publishing Limited; (2007).

[10] Boisse P. Advances in Composites Manufacturing and Process Design. Woodhead Publishing Ltd.; (2015).

[11] Advani SG, Hsiao K-T. Manufacturing Techniques for Polymer Matrix Composites (PMCs). Elsevier; (2012).

DOI: 10.1533/9780857096258.1.1

[12] Offringa AR. Thermoplastic applications composites-rapid processing applications. Compos Part A 1996;27:329–36.

[13] Lamers EAD. Shape distortions in fabric reinforced composite products due to processing induced fibre reorientation. University of Twente, (2004).

[14] Dörr D, Henning F, Kärger L. Nonlinear hyperviscoelastic modelling of intra-ply deformation behaviour in finite element forming simulation of continuously fibre-reinforced thermoplastics. Compos Part A Appl Sci Manuf 2018;109:585–96. https://doi.org/10.1016/j.compositesa.2018.03.037.

DOI: 10.1016/j.compositesa.2018.03.037

[15] Dörr D, Brymerski W, Ropers S, Leutz D, Joppich T, Kärger L, et al. A Benchmark Study of Finite Element Codes for Forming Simulation of Thermoplastic UD-Tapes. Procedia CIRP 2017;66:101–6. https://doi.org/10.1016/j.procir.2017.03.223.

DOI: 10.1016/j.procir.2017.03.223

[16] Larberg YR. Forming of Stacked Unidirectional Prepreg Materials 2012:1–31.

[17] Hallander P, Akermo M, Mattei C, Petersson M, Nyman T. An experimental study of mechanisms behind wrinkle development during forming of composite laminates. Compos Part A Appl Sci Manuf 2013;50:54–64. https://doi.org/10.1016/j.compositesa.2013.03.013.

DOI: 10.1016/j.compositesa.2013.03.013

[18] Johnson KJ, Butler R, Loukaides EG, Scarth C, Rhead AT. Stacking sequence selection for defect-free forming of uni-directional ply laminates. Compos Sci Technol 2019;171:34–43. https://doi.org/10.1016/j.compscitech.2018.11.048.

DOI: 10.1016/j.compscitech.2018.11.048

[19] Haanappel SP, Thije RHW, Sachs U, Rietman B, Akkerman R. Formability analyses of uni-directional and textile reinforced thermoplastics. Compos Part A 2014;56:80–92. https://doi.org/10.1016/j.compositesa.2013.09.009.

DOI: 10.1016/j.compositesa.2013.09.009

[20] Haanappel SP. Forming of UD fibre reinforced thermoplastics. University of Twente, (2013).

[21] Sachs U. Friction and bending in thermoplastic composites forming processes. 2014. https://doi.org/10.3990/1.9789462594838.

DOI: 10.3990/1.9789462594838

[22] Dangora LM, Mitchell CJ, Sherwood J, Parker JC. Deep-Drawing Forming Trials on a Cross-Ply Thermoplastic Lamina for Helmet Preform Manufacture. J Manuf Sci Eng 2016;139. https://doi.org/10.1115/1.4034791.

DOI: 10.1115/1.4034791

[23] Slange TK, Buser YM, Warnet LL, Grouve WJB, Akkerman R, Wijskamp S. Rapid manufacturing of a tailored spar by AFP and stamp forming. JEC Compos Mag No 126 2019:56–9.

DOI: 10.1063/1.5034832

[24] Lessard H, Lebrun G, Benkaddour A, Pham X-T. Influence of process parameters on the thermostamping of a [0/90]12 carbon/polyether ether ketone laminate. Compos Part A Appl Sci Manuf 2015;70:59–68. https://doi.org/10.1016/j.compositesa.2014.12.009.

DOI: 10.1016/j.compositesa.2014.12.009

[25] Benkaddour A, Lebrun G, Laberge-Lebel L. Thermostamping of [0/90]n carbon/peek laminates: Influence of support configuration and demolding temperature on part consolidation. Polym Compos 2018;39:3341–52. https://doi.org/10.1002/pc.24354.

DOI: 10.1002/pc.24354

[26] Harrison P, Gomes R, Curado-Correia N. Press forming a 0/90 cross-ply advanced thermoplastic composite using the double-dome benchmark geometry. Compos Part A Appl Sci Manuf 2013;54:56–69. https://doi.org/10.1016/j.compositesa.2013.06.014.

DOI: 10.1016/j.compositesa.2013.06.014

[27] Liu K, Zhang B, Xu X, Ye J, Liu C. Simulation and Analysis of Process-Induced Distortions in Hemispherical Thermostamping for Unidirectional Thermoplastic Composites. Polym Compos 2019;40:1786–800. https://doi.org/10.1002/pc.24936.

DOI: 10.1002/pc.24936

[28] Wolthuizen DJ, Schuurman J, Akkerman R. Forming limits of thermoplastic composites. Key Eng Mater 2014;611–612:407–14.

DOI: 10.4028/www.scientific.net/kem.611-612.407

[29] Solvay. Solvay APC product datasheet (2021).

[30] Toray Cetex ® TC1225 product datasheet (2021).

[31] Slange TK, Warnet LL, Grouve WJB, Akkerman R. Deconsolidation of C/PEEK blanks: on the role of prepreg, blank manufacturing method and conditioning. Compos Part A Appl Sci Manuf 2018;113:189–99. https://doi.org/10.1016/j.compositesa.2018.06.034.

DOI: 10.1016/j.compositesa.2018.06.034
