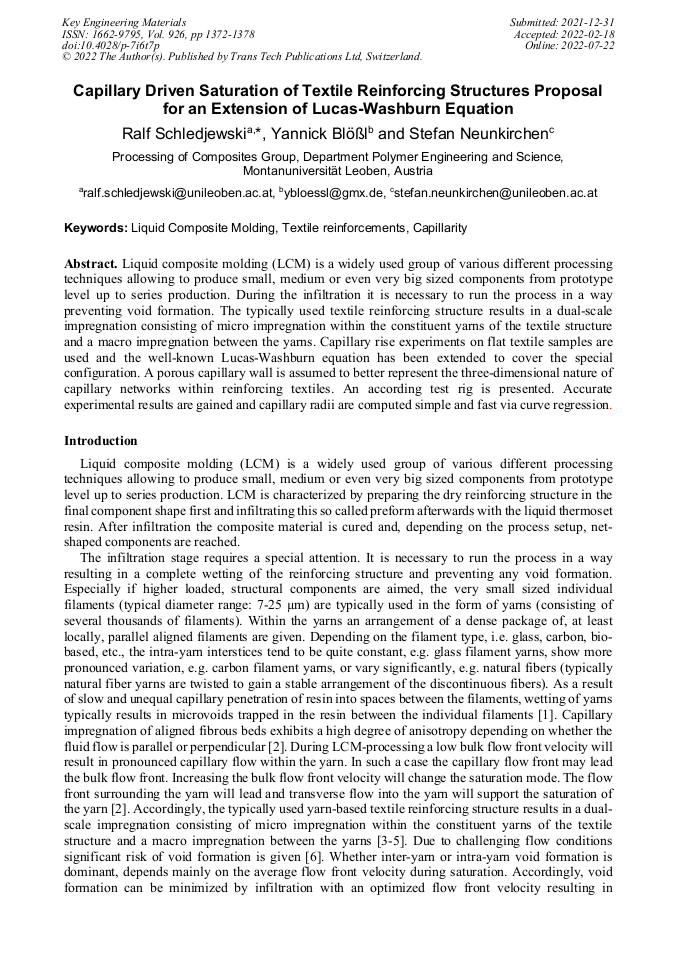

Capillary Driven Saturation of Textile Reinforcing Structures Proposal for an Extension of Lucas-Washburn Equation

Abstract:

Liquid composite molding (LCM) is a widely used group of various different processing techniques allowing to produce small, medium or even very big sized components from prototype level up to series production. During the infiltration it is necessary to run the process in a way preventing void formation. The typically used textile reinforcing structure results in a dual-scale impregnation consisting of micro impregnation within the constituent yarns of the textile structure and a macro impregnation between the yarns. Capillary rise experiments on flat textile samples are used and the well-known Lucas-Washburn equation has been extended to cover the special configuration. A porous capillary wall is assumed to better represent the three-dimensional nature of capillary networks within reinforcing textiles. An according test rig is presented. Accurate experimental results are gained and capillary radii are computed simple and fast via curve regression.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 1372-1378
• DOI: https://doi.org/10.4028/p-7i6t7p
• Online since: July 2022
• Authors: Ralf Schledjewski*, Yannick Blößl, Stefan Neunkirchen
• Keywords: Capillarity, Liquid Composite Molding, Textile Reinforcements

References

[1] W.D. Bascon, J.B. Romans, Microvoids in Glass-Resin Composites. Their Origin and Effect on Composite Strength, Ind. Eng. Chem. Prod. Res. Dev. 7-3 (1968) 172–178.

[2] L.B. Batch, Y.-T. Chen, Ch.W. Macosko, Capillary impregnation of aligned fibrous beds: Experiments and Model, J. Reinf. Plast. and Comp. 15 (1996) 1027-1051.

DOI: 10.1177/073168449601501004

[3] A.W. Chan, R.J. Morgan, Tow impregnation during resin transfer molding of bi-directional nonwoven fabrics, Polym. Comp., 14/4 (1993) 335-340.

DOI: 10.1002/pc.750140409

[4] C. Lekakou, M.G. Bader, Mathematical modelling of macro- and micro-infiltration in resin transfer moulding (RTM). Comp. Part A, 29A (1998) 29-37.

DOI: 10.1016/s1359-835x(97)00030-4

[5] L. Zingraff, V. Michaud, P.E. Bourban, J.-A.E. Månson, Resin transfer moulding of anionically polymerized polyamide 12, Comp. Part A, 36 (2005) 1675-1686.

DOI: 10.1016/j.compositesa.2005.03.023

[6] V. Michaud, A review of non-saturated resin flow in liquid composite moulding processes, Transp. Porous Med. 115 (2016) 581-601.

DOI: 10.1007/s11242-016-0629-7

[7] P. Hergan, E. Fauster, D.Perkonigg, G. Pinter, R. Schledjewski, Flow-speed-controlled quality optimization for one-shot-hybrid RTM parts, Adv. Manufact: Polym.&Comp. Sci., 6/1 (2020) 29-37.

DOI: 10.1080/20550340.2020.1722910

[8] Y. Blößl, R. Schledjewski, Analysis of the capillary driven wetting behaviour in reinforcing textile structures. Proc. 14th International Conference on Flow Processes in Composite Materials, Luleå, Sweden, 30.05-01.06.2018, Paper 48, https://www.ltu.se/research/subjects/Stromningslara/Konferenser/FPCM-14?l=en.

[9] Y. Blößl, Impregnation of natural fiber reinforcements in liquid composite molding processes, PhD thesis, Montanuniversitaet Leoben (2021), https://pure.unileoben.ac.at/portal/en/.

[10] R. Lucas, Über das Zeitgesetz des kapillaren Aufstiegs von Flüssigkeiten, Kolloid-Zeitschrift 23/1 (1918) 15–22.

DOI: 10.1007/bf01461107

[11] E.W. Washburn, The Dynamics of Capillary Flow. Phys. Rev. 17/3 (1921) 273–83.

[12] J. II. Jurin, An account of some experiments shown before the Royal Society; with an enquiry into the cause of the ascent and suspension of water in capillary tubes. Phil. Trans. R. Soc. 30/355 (1719) 739–747.

DOI: 10.1098/rstl.1717.0026

[13] F. LeBel, A.E. Fanaei, E. Ruiz, F. Trochu. Experimental characterization by fluorescence of capillary flows in dual-scale engineering fabrics. Text. Res. J. 83/15 (2013) 1634–1659.

DOI: 10.1177/0040517512471742

[14] C. Ravey, E. Ruiz, F. Trochu, Determination of the optimal impregnation velocity in Resin Transfer Molding by capillary rise experiments and infrared thermography. Compos. Sci. Technol. 99 (2014) 96–102.

DOI: 10.1016/j.compscitech.2014.05.019

[15] N. Fries, Capillary transport processes in porous materials - experiment and model. (PhD thesis, University of Bremen, 2010), 1st ed. Cuvillier, Göttingen, (2010).

[16] W.M. Deen, Introduction to chemical engineering fluid mechanics. Cambridge University Press, Cambridge (2016).
