Determination of Forming Limit Curves - Strain Path and Failure Analysis

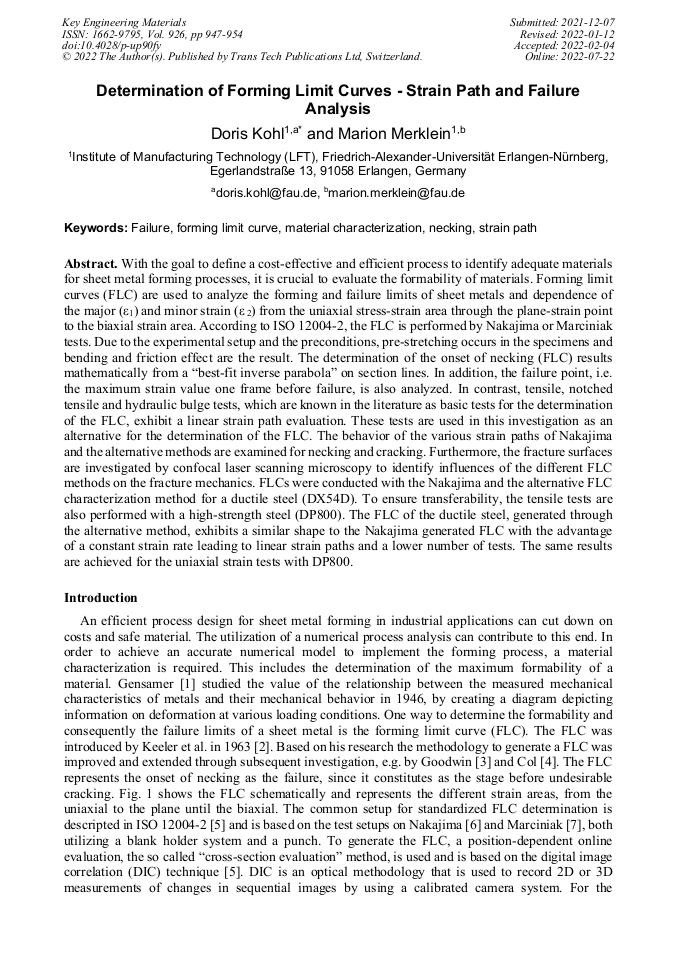

Abstract:

With the goal to define a cost-effective and efficient process to identify adequate materials for sheet metal forming processes, it is crucial to evaluate the formability of materials. Forming limit curves (FLC) are used to analyze the forming and failure limits of sheet metals and dependence of the major (φ₁) and minor strain (φ₂) from the uniaxial stress-strain area through the plane-strain point to the biaxial strain area. According to ISO 12004-2, the FLC is performed by Nakajima or Marciniak tests. Due to the experimental setup and the preconditions, pre-stretching occurs in the specimens and bending and friction effect are the result. The determination of the onset of necking (FLC) results mathematically from a “best-fit inverse parabola” on section lines. In addition, the failure point, i.e. the maximum strain value one frame before failure, is also analyzed. In contrast, tensile, notched tensile and hydraulic bulge tests, which together have a potential to map an alternative FLC, exhibits a linear strain path evolution. The behavior of the various strain paths of Nakajima and the alternative methods are examined for necking and cracking. Furthermore, the fracture surfaces are investigated by confocal laser scanning microscopy to identify influences of the different FLC methods on the fracture mechanics. FLCs were conducted with the Nakajima and the alternative FLC characterization method for a ductile steel (DX54D). To ensure transferability, the tensile tests are also performed with a high-strength steel (DP800). The FLC of the ductile steel, generated through the alternative method, exhibits a similar shape to the Nakajima generated FLC with the advantage of a constant strain rate leading to linear strain paths and a lower number of tests. The same results are achieved for the uniaxial strain tests with DP800.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 947-954
• DOI: https://doi.org/10.4028/p-up90fy
• Online since: July 2022
• Authors: Doris Kohl*, Marion Merklein
• Keywords: Failure, Forming Limit Curve, Material Characterization, Necking, Strain Path

References

[1] M. Gensamer, Strength and Ductility, 1946, Transactions of the American Society for Metals, 36, pp.30-60.

[2] S.P. Keeler, W.A, Backofen, Plastic instability and fracture in sheets stretched over rigid punches, 1963, ASM Trans Q., p.25–48.

[3] G.M. Goodwin, Application of Strain Analysis to Sheet Metal Forming Problems in the Press Shop, 1968, SAE Technical Paper Series.

DOI: 10.4271/680093

[4] A. Col, FLCs: past, present and future, Japanese Deep Drawing Researg Group, Japan Society for Technology of Plasticity, Iron and Steel Institute of Japan, IDDRG 2002, Global Enviroment and Sheet Metal Forming, 2002, p.107–125.

[5] International standard ISO 12004-2:2021, Metallic materials –Determination of forming-limit curves for sheet and strip – part 2: Determination of forming-limit curves in the laboratory.

DOI: 10.3403/30150423u

[6] K. Nakajima, T. Kikuma and K. Hasuka, Study on the formability of Steel Sheets, 1968, Yawata Tech Report 264, pp.8517-5830.

[7] Z. Marciniak, Stability of plastics shells under tension with kinematic boundary condition, Arciwum mechaniki stosowanej, 1965, p.577–592.

[8] E. Affronti, Evaluation of failure behaviour of sheet metals, Erlangen: FAU Studien aus dem Maschinenbau, vol 342, (2020).

[9] W. Müschenborn, H.-M. Sonne, Einfluß des Formänderungsweges auf die Grenzformänderungen des Feinblechs, Steel Research International, vol.46, 1975, p.597–602.

DOI: 10.1002/srin.197503686

[10] A. Kuppert, Erweiterung und Verbesserung von Versuchs- und Auswertetechniken für die Bestimmung von Grenzformänderungskurven, Erlangen: FAU Studien aus dem Maschinenbau, vol. 267, (2015).

[11] C.C. Tasan, J.P.M. Hoefnagels, C.H.L.J. ten Horn, M.G.D. Geers, Experimental analysis of strain path dependent ductile damage mechanics and forming limits, in Mechanics of Materials 41, 2009, pp.1264-1276.

DOI: 10.1016/j.mechmat.2009.08.003

[12] E. Affronti, M. Merklein, Metallographic analysis of Nakajima tests for the evaluation of the failure developments, 17th International Conference on Sheet Metal, (2017).

[13] D. Kohl, M. Merklein, Alternative characterization method for the failure behaviour of sheet metals derived from Nakajima test, IDDRG, Germany, (2021).

[14] Stahlinstitut VDEh. Prüf- und Dokumentationsrichtlinie für die experimentelle Ermittlung mechanischer Kennwerte von Feinblechen aus Stahl für die CAE-Berechnung(1240). Düssel-dorf: Stahleisen GmbH, (2006).

[15] Bragard A, Baret J C and H. Bonnarens, Simplified Technique to Determine the FLD on the Onset of Necking, 1972, C.R.M, pp.53-63.
