Enhanced Device Performance with Vertical SiC Gate-All-Around Nanowire Power MOSFETs

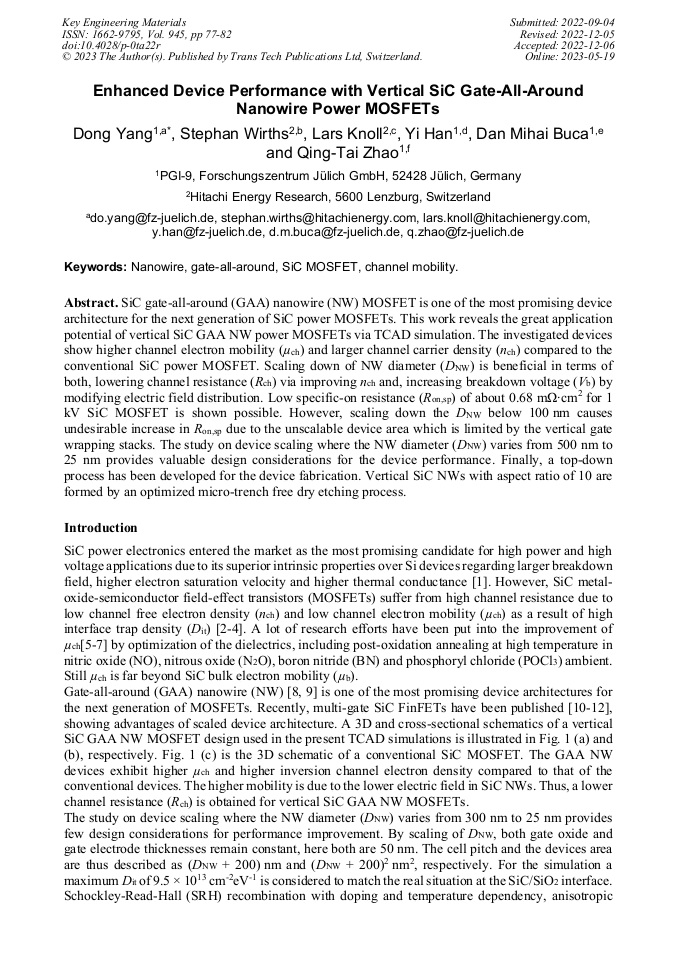

Abstract:

SiC gate-all-around (GAA) nanowire (NW) MOSFET is one of the most promising device architectures for the next generation of SiC power MOSFETs. This work reveals the great application potential of vertical SiC GAA NW power MOSFETs via TCAD simulation. The investigated devices show higher channel electron mobility (µ_ch) and larger channel carrier density (n_ch) compared to the conventional SiC power MOSFET. Scaling down of NW diameter (D_NW) is beneficial in terms of both, lowering channel resistance (R_ch) via improving n_ch and, increasing breakdown voltage (V_b) by modifying electric field distribution. Low specific-on resistance (R_on,sp) of about 0.68 mΩ∙cm² for 1 kV SiC MOSFET is shown as possible. However, scaling down the D_NW below 100 nm causes an undesirable increase in R_on,sp due to the unscalable device area which is limited by the vertical gate wrapping stacks. The study on device scaling where the NW diameter (D_NW) varies from 500 nm to 25 nm provides valuable design considerations for the device's performance. Finally, a top-down process has been developed for the device fabrication. Vertical SiC NWs with an aspect ratio of 10 are formed by an optimized micro-trench free dry etching process.

• Periodical: Key Engineering Materials (Volume 945)
• Pages: 77-82
• DOI: https://doi.org/10.4028/p-0ta22r
• Online since: May 2023
• Authors: Dong Yang*, Stephan Wirths, Lars Knoll, Yi Han, Dan Mihai Buca, Qing Tai Zhao
• Keywords: Channel Mobility, Gate-All-Around, Nanowire, SiC MOSFET

References

[1] L. S. Ramsdell, Studies on silicon carbide, Journal of Earth and Planetary Materials, vol. 32, pp.64-82, 1947.

[2] J. N. Shenoy, G. L. Chindalore, M. R. Melloch, J. A. Cooper, J. W. Palmour, and K. G. Irvine, Characterization and optimization of the SiO2/SiC metal-oxide semiconductor interface, Journal of electronic materials, vol. 24, pp.303-309, 1995.

DOI: 10.1007/bf02659691

[3] A. Siddiqui, E. Hazem, and S. Shakti, The current status and the future prospects of surface passivation in 4H-SiC transistors, IEEE Transactions on Device and Materials Reliability, vol. 16, no. 3, pp.419-428, 2016.

DOI: 10.1109/tdmr.2016.2587160

[4] G.Y. Chung, C.C. Tin, J.H. Won, J.R. Williams, K. McDonald, R.A. Weller, S.T. Pantelides, L.C. Feldman, Interface state densities near the conduction band edge in n-type 4H-and 6H-SiC, 2000 IEEE Aerospace Conference, vol. 5, 2000.

DOI: 10.1109/aero.2000.878515

[5] G. Gudjonsson, H.O. Olafsson, F. Allerstam, P. A. Nilsson, E.O. Sveinbjornsson, H. Zirath, T. Rodle; R. Jos, High field-effect mobility in n-channel Si face 4H-SiC MOSFETs with gate oxide grown on aluminum ion-implanted material, IEEE Electron Device Lett., vol. 26, no. 5, pp.96-98, Feb. 2005.

DOI: 10.1109/led.2004.841191

[6] A. Modic, G. Liu, A. C. Ahyi, Y. Zhou, P. Xu, M. C. Hamilton, J. R. Williams, L. C. Feldman, S. Dhar, High Channel Mobility 4H-SiC MOSFETs by Antimony Counter-Doping, IEEE Electron Device Lett., vol. 35, no. 9, pp.894-896, Sept. 2014.

DOI: 10.1109/led.2014.2336592

[7] D. Okamoto, M. Sometani, S. Harada, R. Kosugi, Y. Yonezawa, H. Yano, Improved Channel Mobility in 4H-SiC MOSFETs by Boron Passivation, IEEE Electron Device Lett., vol. 35, no. 12, pp.1176-1178, Oct. 2014.

DOI: 10.1109/led.2014.2362768

[8] H. Lee, L. E. Yu, S. W. Ryu, et al, Sub-5nm all-around gate FinFET for ultimate scaling, 2006 Symposium on VLSI Technology, June 2006.

DOI: 10.1109/vlsit.2006.1705215

[9] J. P. Colinge, C. W. Lee, A. Afzalian, N. D. Akhavan, R. Yan, I. Ferain, P. Razavi, B. O'Neill, A. Blake, M. White, A. M. Kelleher, B. McCarthy, and R. Murphy, Nanowire transistors without junctions, Nature nanotechnology, vol. 5, no. 3, pp.225-229, Feb. 2010.

DOI: 10.1038/nnano.2010.15

[10] F. Udrea, K. Naydenov, H. Kang, T. Kato, E. Kagoshima, T. Nishiwaki, H. Fujiwara, and T. Kimoto, The FinFET effect in Silicon Carbide MOSFETs, IEEE 33rd International Symposium on Power Semiconductor Devices and ICs (ISPSD), Jun. 2021.

DOI: 10.23919/ispsd50666.2021.9452282

[11] K. Naydenov, N. Donato, and F. Udrea, Operation and performance of the 4H-SiC junctionless FinFET, Eng. Res. Express, vol. 3, 035008, 2021.

DOI: 10.1088/2631-8695/ac12bc

[12] Rahul P. Ramamurthy, N. Islam, M. Sampath, Dallas T. Morisette, and James A. Cooper, The tri-gate MOSFET: a new vertical power transistor in 4H-SiC, IEEE Electron Device Lett., vol. 42, issue 1, pp.90-93, 2020.

DOI: 10.1109/led.2020.3040239

[13] B. J. Baliga, SiC power devices: From conception to social impact, 2016 46th European Solid-State Device Research Conference (ESSDERC), issue 2378-6558, Sept. 2016.

DOI: 10.1109/essderc.2016.7599619
