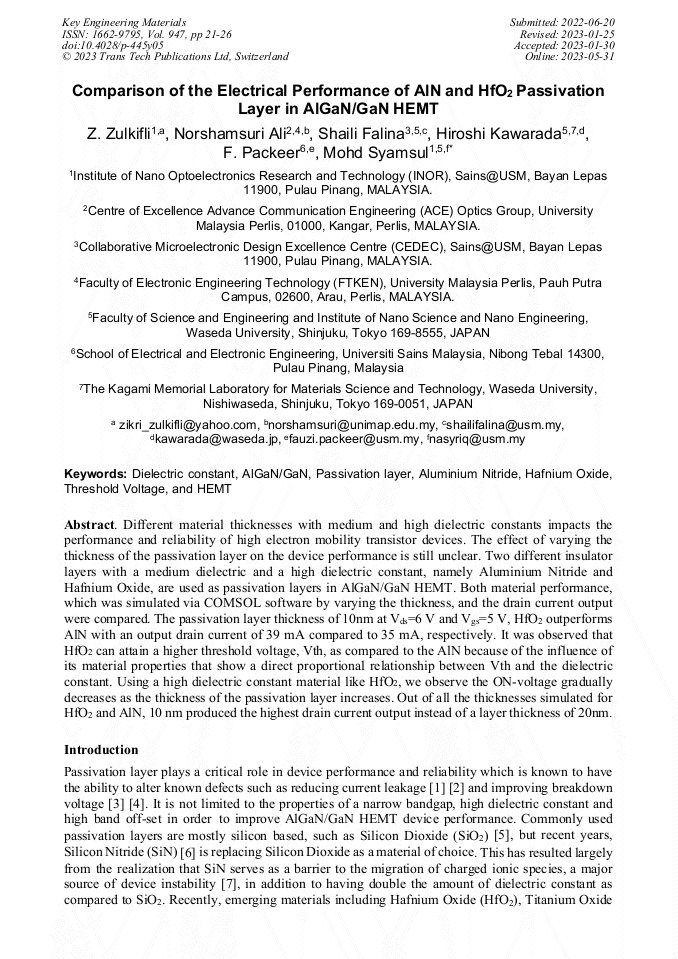

Comparison of the Electrical Performance of AlN and HfO₂ Passivation Layer in AlGaN/GaN HEMT

Abstract:

Different material thickness with medium and high dielectric constant can impact the performance and reliability of high electron mobility transistor device. With varying the thickness of the passivation layer, the effect of it towards the device performance is still unclear. Two different insulator layers with a medium dielectric and a high dielectric constant namely Aluminium Nitride and Hafnium Oxide are used as passivation layer in AlGaN/GaN HEMT. Both material performance was simulated via COMSOL software by varying the thickness and the drain current output were compared. The passivation layer thickness of 10nm at V_ds=6 V and V_gs=5 V, HfO₂ outperforms AlN with the output drain current of 39 mA compared to 35 mA respectively. It was observed that HfO₂ can attain higher threshold voltage, V_th as compared to the AlN because of the influence of its material properties that shows a direct proportional relationship between V_th and dielectric constant. Using high dielectric constant material like HfO₂, we observe the ON-voltage gradually decreases as the thickness of the passivation layer increased. Out of all the thickness simulated for HfO₂ and AlN, 10nm produced the highest drain current output instead of layer thickness of 20nm.

• Periodical: Key Engineering Materials (Volume 947)
• Pages: 21-26
• DOI: https://doi.org/10.4028/p-445y05
• Online since: May 2023
• Authors: Zikri Zulkifli, Norshamsuri Ali, Shaili Falina, Hiroshi Kawarada, Mohamed Fauzi Packeer Mohamed, Mohd Syamsul*
• Keywords: AlGaN/GaN, Aluminium Nitride, Dielectric Constant, Hafnium Oxide, HEMT, Passivation Layer, Threshold Voltage

References

[1] S. Mazumder, S. H. Li, Z. G. Wu, and Y. H. Wang, "Combined implications of UV/O3 interface modulation with HfSiOx surface passivation on AlGaN/AlN/GaN MOS-HEMT," Crystals, vol. 11, no. 2. 2021.

DOI: 10.3390/cryst11020136

[2] R. S. Low et al., "GaN-based MIS-HEMTs with Al2O3 dielectric deposited by low-cost and environmental-friendly mist-CVD technique," Appl. Phys. Express, vol. 14, no. 3, p.31004, 2021.

DOI: 10.35848/1882-0786/abe19e

[3] S. X. SUN et al., "The Effect of High-K Passivation Layer on Off-State Breakdown Voltage of AlGaAs/InGaAs HEMT.," J. Ovonic Res., vol. 17, no. 2, 2021.

[4] R. Tomita, S. Ueda, T. Kawada, H. Mitsuzono, and K. Horio, "Analysis of Dependence of Breakdown Voltage on Gate–Drain Distance in AlGaN/GaN HEMTs With High-k Passivation Layer," IEEE Trans. Electron Devices, vol. 68, no. 4, p.1550–1556, 2021.

DOI: 10.1109/ted.2021.3060353

[5] K. Geng, D. Chen, Q. Zhou, and H. Wang, "AlGaN/GaN MIS-HEMT with PECVD SiNx, SiON, SiO2 as gate dielectric and passivation layer," Electronics, vol. 7, no. 12, p.416, 2018.

DOI: 10.3390/electronics7120416

[6] J.X.J. Zhang and K. Hoshino, "Fundamentals of nano/microfabrication and scale effect," Mol. Sensors Nanodevices; Zhang, JXJ, Hoshino, K., Eds, p.43–111, 2019.

DOI: 10.1016/b978-0-12-814862-4.00002-8

[7] J.T. Milek, "Passivation," in Silicon Nitride for Microelectronic Applications, Springer, 1972, p.24–38.

DOI: 10.1007/978-1-4615-9609-7_4

[8] C.-H. Lee, S.-H. Hur, Y.-C. Shin, J.-H. Choi, D.-G. Park, and K. Kim, "Charge-trapping device structure of Si O 2∕ Si N∕ high-k dielectric Al 2 O 3 for high-density flash memory," Appl. Phys. Lett., vol. 86, no. 15, p.152908, 2005.

DOI: 10.1063/1.1897431

[9] F. Léonard, "Chapter 4 - Electronic Devices," in Micro and Nano Technologies, F. B. T.-T. P. of C. N. D. Léonard, Ed. Norwich, NY: William Andrew Publishing, 2009, p.75–136.

[10] Y. Fu, Z. Li, and Q. Wang, "Investigating electrical performance and breakdown characteristic of graphene field-effect transistor with different oxides structure," Phys. Lett. A, vol. 391, p.127139, 2021.

DOI: 10.1016/j.physleta.2021.127139

[11] H. Birey, "Thickness dependence of the dielectric constant and resistance of Al2O3 films," J. Appl. Phys., vol. 48, no. 12, p.5209–5212, 1977.

DOI: 10.1063/1.323603

[12] M. Rahman, J.-G. Kim, D.-H. Kim, and T.-W. Kim, "Characterization of Al incorporation into HfO2 dielectric by atomic layer deposition," Micromachines, vol. 10, no. 6, p.361, 2019.

DOI: 10.3390/mi10060361

[13] V. Dimitrova, D. Manova, and E. Valcheva, "Optical and dielectric properties of dc magnetron sputtered AlN thin films correlated with deposition conditions," Mater. Sci. Eng. B, vol. 68, no. 1, p.1–4, 1999.

DOI: 10.1016/s0921-5107(99)00221-4

[14] M. Li and Y. Wang, "2-D analytical model for current–voltage characteristics and transconductance of AlGaN/GaN MODFETs," IEEE Trans. Electron Devices, vol. 55, no. 1, p.261–267, 2007.

DOI: 10.1109/ted.2007.911076
