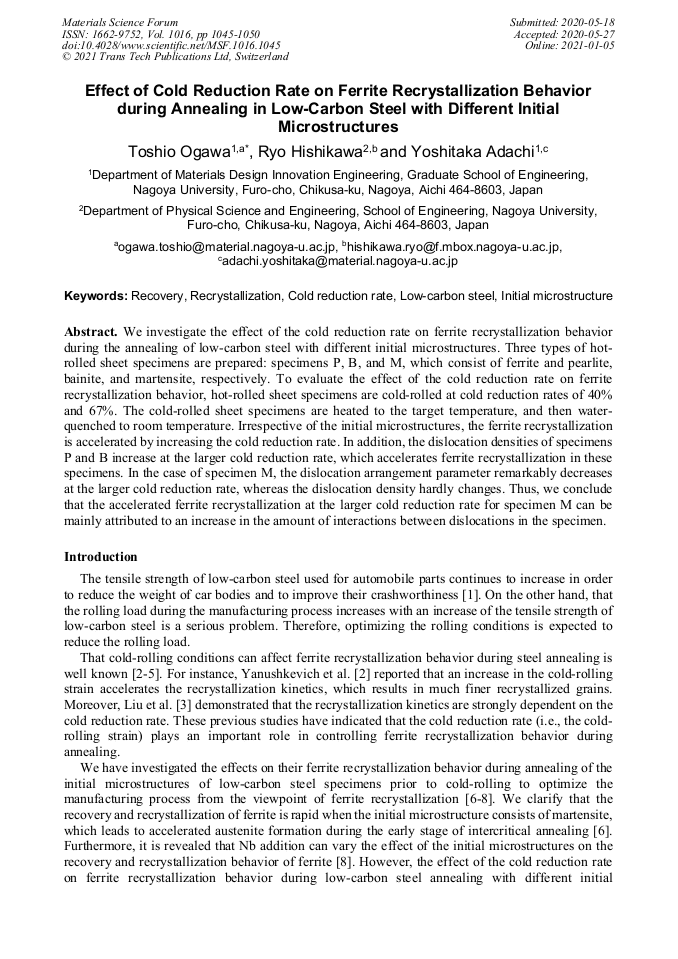

Effect of Cold Reduction Rate on Ferrite Recrystallization Behavior during Annealing in Low-Carbon Steel with Different Initial Microstructures

Abstract:

We investigate the effect of the cold reduction rate on ferrite recrystallization behavior during the annealing of low-carbon steel with different initial microstructures. Three types of hot-rolled sheet specimens are prepared: specimens P, B, and M, which consist of ferrite and pearlite, bainite, and martensite, respectively. To evaluate the effect of the cold reduction rate on ferrite recrystallization behavior, hot-rolled sheet specimens are cold-rolled at cold reduction rates of 40% and 67%. The cold-rolled sheet specimens are heated to the target temperature, and then water-quenched to room temperature. Irrespective of the initial microstructures, the ferrite recrystallization is accelerated by increasing the cold reduction rate. In addition, the dislocation densities of specimens P and B increase at the larger cold reduction rate, which accelerates ferrite recrystallization in these specimens. In the case of specimen M, the dislocation arrangement parameter remarkably decreases at the larger cold reduction rate, whereas the dislocation density hardly changes. Thus, we conclude that the accelerated ferrite recrystallization at the larger cold reduction rate for specimen M can be mainly attributed to an increase in the amount of interactions between dislocations in the specimen.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1045-1050
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1045
• Online since: January 2021
• Authors: Toshio Ogawa*, Ryo Hishikawa, Yoshitaka Adachi
• Keywords: Cold Reduction Rate, Initial Microstructure, Low-Carbon Steel, Recovery, Recrystallization

References

[1] M. Takahashi, Sheet steel technology for the last 100 years: Progress in sheet steels in hand with the automotive industry, Tetsu-to-Hagané 100 (2014) 82-93.

DOI: 10.2355/tetsutohagane.100.82

[2] Z. Yanushkevich, A. Belyakov, R. Kaibyshev, C. Haase, D.A. Molodov, Effect of cold rolling on recrystallization and tensile behavior of a high-Mn steel, Mater. Charact. 112 (2016) 180-187.

DOI: 10.1016/j.matchar.2015.12.021

[3] Z. Liu, R. O. Olivares, Y. Lei, C. I. Garcia, G. Wang, Microstructural characterization and recrystallization kinetics modeling of annealing cold-rolled vanadium microalloyed HSLA steels, J. Alloys Compd. 679 (2016) 293-301.

DOI: 10.1016/j.jallcom.2016.04.057

[4] M. Janošec, I. Schindler, J. Palát, L. Čížek, V. Vodárek, E. Místecký, M. Růžička, L. A. Dobrzański, S. Rusz, P. Suchánek, Properties of a Nb-V-Ti microalloyed steel influenced by cold rolling and annealing, J. Achiev. Mater. Manuf. Eng., 20 (2007) 251-254.

DOI: 10.4028/www.scientific.net/msf.567-568.345

[5] W. Ye, R. L. Gall, G. Saindrenan, A study of the recrystallization of an IF steel by kinetics models, Mater. Sci. Eng. A, 332 (2002) 41-46.

[6] T. Ogawa, H. Dannoshita, K. Maruoka, K. Ushioda, Microstructural evolution during cold rolling and subsequent annealing in low-carbon steel with different initial microstructures, J. Mater. Eng. Perform. 26 (2017) 3821-3830.

DOI: 10.1007/s11665-017-2849-6

[7] H. Dannoshita, T. Ogawa, K. Maruoka, K. Ushioda, Effect of initial microstructures on austenite formation behavior during intercritical annealing in low-carbon steel, Mater. Trans. 50 (2019) 165-168.

DOI: 10.2320/matertrans.m2018298

[8] T. Ogawa, H. Dannoshita, Y. Adachi, K. Ushioda, Effect of initial microstructures prior to cold-rolling and intercritical annealing on ferrite recrystallization and ferrite-to-austenite phase transformation in Nb bearing low-carbon steels, J. Phys.: Conf. Ser. 1270 (2019) 012016.

DOI: 10.1088/1742-6596/1270/1/012016

[9] T. Ungár, A. Borbély, The effect of dislocation contrast on x-ray line broadening: A new approach to line profile analysis, Appl. Phys. Lett., 69 (1996) 3173-3175.

DOI: 10.1063/1.117951

[10] T. Ungár, S. Ott, P. G. Sanders, A. Borbély, J. R. Weertman, Dislocations, grain size and planar faults in nanostructured copper determined by high resolution X-ray diffraction and a new procedure of peak profile analysis, Acta Mater., 46 (1998) 3693-3699.

DOI: 10.1016/s1359-6454(98)00001-9

[11] H. S. Zurob, C. R. Hutchinson, Y. Brechet, G. Purdy, Modeling recrystallization of microalloyed austenite: effect of coupling recovery, precipitation and recrystallization, Acta Mater., 50 (2002) 3075-3092.

DOI: 10.1016/s1359-6454(02)00097-6

[12] H. Yaguchi, T. Tsuchida, Y. Matsushima, S. Abe, K. Iwasaki and A. Inada, Effect of microstructures on the fatigue behavior of V-added ferrite-pearlite type microalloyed steels, Kobe Steel Engineering Reports, 50 (2000) 53-56.

[13] N. Narasaiah and K. K. Ray, Small crack formation in a low carbon steel with banded ferrite-pearlite structure, Mater. Sci. Eng. A, 392 (2005) 269-277.

DOI: 10.1016/j.msea.2004.09.058

[14] M. Wilkens, The determination of density and distribution of dislocations in deformed single crystals from broadened X-ray diffraction profiles, Phys. Status Solidi, 2 (1970) 359-370.

DOI: 10.1002/pssa.19700020224

[15] Y. Tomota, S. Sato, S. Harjo, Recent progress of line-profile analyses for neutron or X-ray Diffraction, Tetsu-to-Hagané 103 (2017) 73-85.

DOI: 10.2355/tetsutohagane.tetsu-2016-085

[16] S. Takaki, S. Iizuka, K. Tomimura and Y. Tokunaga, Influence of cold working on recovery and recrystallization of lath martensite in 0.2%C steel, J. Jpn. Inst. Met. Mater., 55 (1991) 1151-1158.

DOI: 10.2320/matertrans1989.33.577

[17] M. Tokizane, N. Matsumura, K. Tsuzaki, T. Maki, I. Tamura, Recrystallization and formation of austenite in deformed lath martensitic structure of low carbon steels, Metall. Trans. A, 13A (1982) 1379-1388.

DOI: 10.1007/bf02642875
