Unmixed Joint of A1050 and C1020 by Friction Stir Butt Welding

Toru Nagaoka; Takeshi Kyouda; Shao Tongge; Hua Zhang

doi:10.4028/www.scientific.net/MSF.1016.1784

Paper Titles

Metallic Composites, Prepared by Deformation Processing
p.1759

The Effect of Deformation Strain on Texture Uniformity in Tantalum Sheet during Asymmetric Cross Rolling
p.1765

Effects of Powder Microscopic Defects on Densification and Mechanical Properties of WC via Spark Plasma Sintering
p.1770

Three-Dimensional Characterization of Morphology and Crystallography of a Gold Nanoisland Film
p.1778

Unmixed Joint of A1050 and C1020 by Friction Stir Butt Welding
p.1784

Spark Plasma Sintering of Paper-Derived Ti₃AlC₂-Based Composites: Influence of Sintering Temperature
p.1790

Fabrication of Be-Ta Ti Alloys without Pre-Alloyed Powders via SLM
p.1797

Martensitic Transformation of High-Entropy and Medium-Entropy Shape Memory Alloys
p.1802

Suppression of Intergranular Fracture in 7000 Series Aluminum Alloys
p.1811

HomeMaterials Science ForumMaterials Science Forum Vol. 1016Unmixed Joint of A1050 and C1020 by Friction Stir...

Unmixed Joint of A1050 and C1020 by Friction Stir Butt Welding

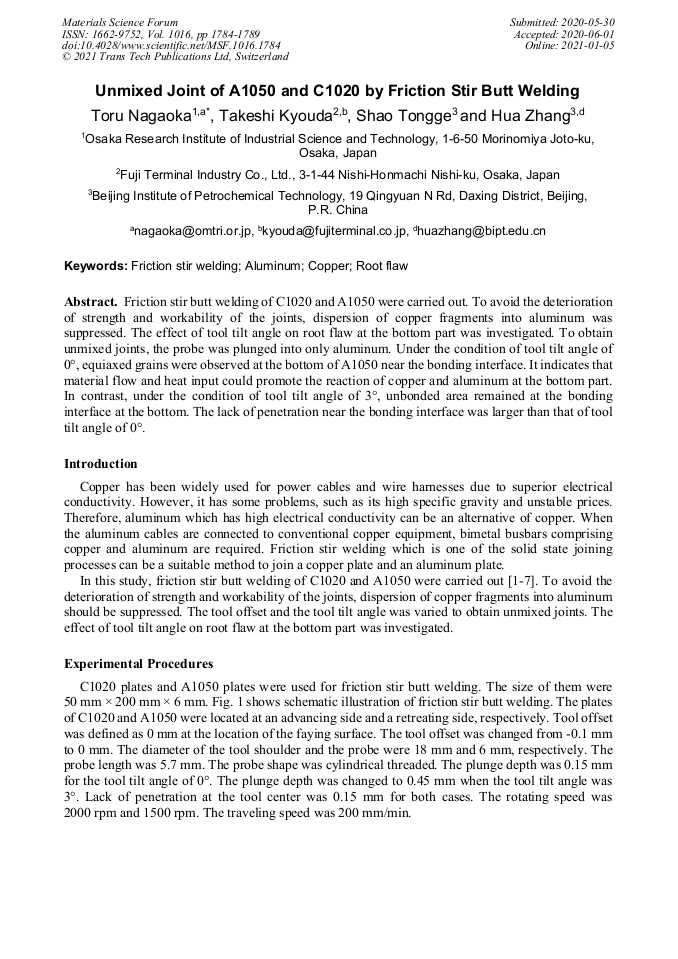

Abstract:

Friction stir butt welding of C1020 and A1050 were carried out. To avoid the deterioration of strength and workability of the joints, dispersion of copper fragments into aluminum was suppressed. The effect of tool tilt angle on root flaw at the bottom part was investigated. To obtain unmixed joints, the probe was plunged into only aluminum. Under the condition of tool tilt angle of 0°, equiaxed grains were observed at the bottom of A1050 near the bonding interface. It indicates that material flow and heat input could promote the reaction of copper and aluminum at the bottom part. In contrast, under the condition of tool tilt angle of 3°, unbonded area remained at the bonding interface at the bottom. The lack of penetration near the bonding interface was larger than that of tool tilt angle of 0°.
