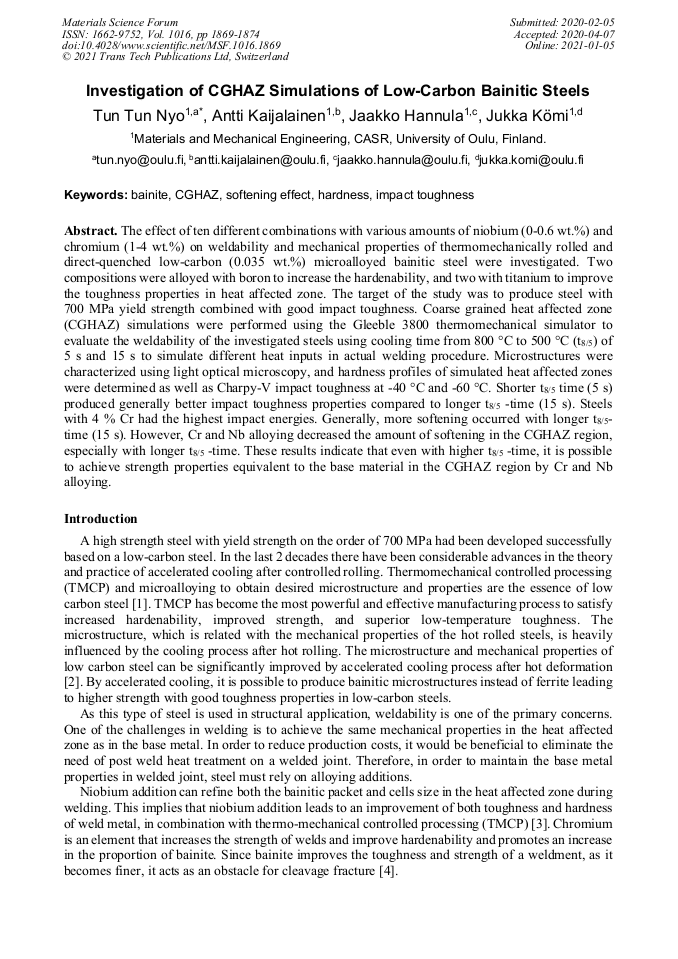

Investigation of CGHAZ Simulations of Low-Carbon Bainitic Steels

Abstract:

The effect of ten different combinations with various amounts of niobium (0-0.6 wt.%) and chromium (1-4 wt.%) on weldability and mechanical properties of thermomechanically rolled and direct-quenched low-carbon (0.035 wt.%) microalloyed bainitic steel were investigated. Two compositions were alloyed with boron to increase the hardenability, and two with titanium to improve the toughness properties in heat affected zone. The target of the study was to produce steel with 700 MPa yield strength combined with good impact toughness. Coarse grained heat affected zone (CGHAZ) simulations were performed using the Gleeble 3800 thermomechanical simulator to evaluate the weldability of the investigated steels using cooling time from 800 °C to 500 °C (t_8/5) of 5 s and 15 s to simulate different heat inputs in actual welding procedure. Microstructures were characterized using light optical microscopy, and hardness profiles of simulated heat affected zones were determined as well as Charpy-V impact toughness at-40 °C and-60 °C. Shorter t_8/5 time (5 s) produced generally better impact toughness properties compared to longer t_8/5 -time (15 s). Steels with 4 % Cr had the highest impact energies. Generally, more softening occurred with longer t_8/5-time (15 s). However, Cr and Nb alloying decreased the amount of softening in the CGHAZ region, especially with longer t_8/5 -time. These results indicate that even with higher t_8/5 -time, it is possible to achieve strength properties equivalent to the base material in the CGHAZ region by Cr and Nb alloying.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1869-1874
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1869
• Online since: January 2021
• Authors: Tun Nyo*, Antti Kaijalainen, Jaakko Hannula, Jukka I. Kömi
• Keywords: Bainite, CGHAZ, Hardness, Impact Toughness, Softening Effect

References

[1] H. Xie, L.X. Du, J. Hu, R.D.K. Misra, Microstructure and mechanical properties of a novel 1000 MPa grade TMCP low carbon microalloyed steel with combination of high strength and excellent toughness, Mater. Sci. Eng. A 612 (2014) 123-130.

DOI: 10.1016/j.msea.2014.06.033

[2] P.S. Bandyopadhyay, S.K. Ghosh, S. Kundu, S. Chatterjee, Evolution of microstructure and mechanical properties of thermomechanically processed ultrahigh-strength steel, Metall. Mater. Trans. A 42 (2011) 2742-2752.

DOI: 10.1007/s11661-011-0711-2

[3] M. Hardy, Metallurgical effects of niobium and molybdenum on heat-affected zone toughness in low-carbon steel, Appl. Sci. 9 (2019) 1847.

DOI: 10.3390/app9091847

[4] D. Ormston, V. Schwinn, K. Hulka, Development of low carbon microalloyed bainitic steels for structural plate applications, Mater. Sci. Forum 500 (2005) 573-580.

DOI: 10.4028/www.scientific.net/msf.500-501.573

[5] Metallic materials - Charpy pendulum impact test - Part 1: Test method. ISO 148-12016 (2016).

[6] E. Lopez-Martínez, O. Vazquez-Gomez, H.J. Vergara-Hernández, S. Serna, B. Campillo, Mechanical characterization of the welding of two experimental HSLA steels by microhardness and nanoindentation test, Met. Mater. Int. 22 (2016) 987–994.

DOI: 10.1007/s12540-016-6271-7

[7] M. Gaspar, Effect of welding heat input on simulated HAZ areas in S960QL high strength steel, Metals 9 (2019) 1226.

DOI: 10.3390/met9111226

[8] R. Wei, L. Cheng, K.M. Wu, Weldability of a low carbon high strength Ti-containing bainitic steel produced by CSP, Mater. Sci. Forum, 652 (2010) 275–278. https://doi.org/10.4028/www.scientific.net/msf.652.275.

DOI: 10.4028/www.scientific.net/msf.652.275

[9] W. Yan, Y.Y. Shan, K. Yang, Effect of TiN inclusions on the impact toughness of low-carbon microalloyed steels, Metall. Mater. Trans. A 37 (2006) 2147-2158. https://doi.org/10.1007/BF02586135.

DOI: 10.1007/bf02586135
