Grain Refinement of Fe-X Alloys Fabricated by Laser Powder Bed Fusion

Abstract:

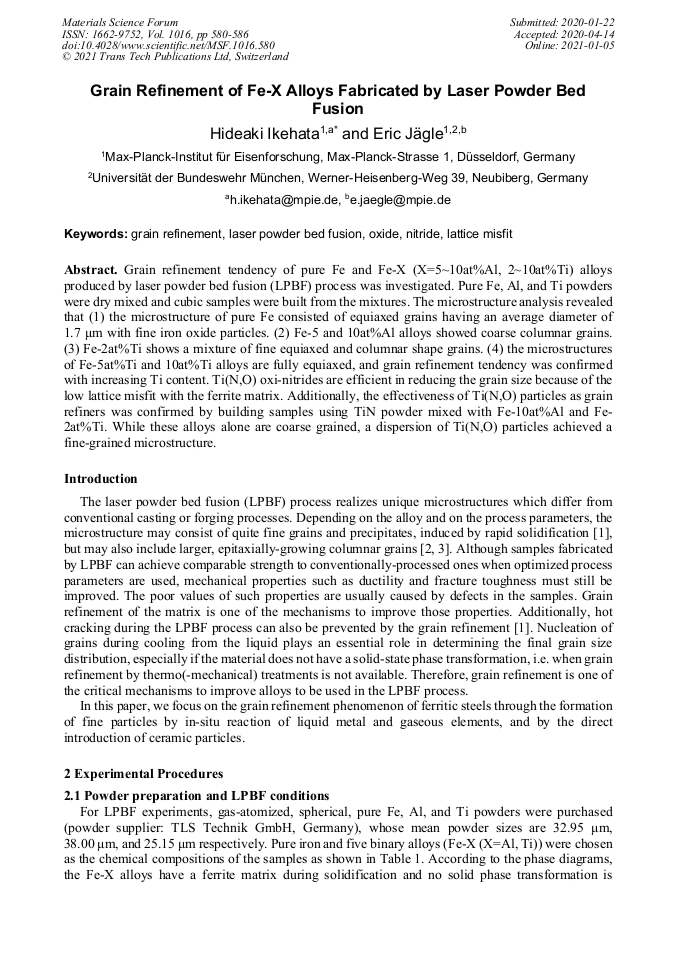

Grain refinement tendency of pure Fe and Fe-X (X=5~10at%Al, 2~10at%Ti) alloys produced by laser powder bed fusion (LPBF) process was investigated. Pure Fe, Al, and Ti powders were dry mixed and cubic samples were built from the mixtures. The microstructure analysis revealed that (1) the microstructure of pure Fe consisted of equiaxed grains having an average diameter of 1.7 μm with fine iron oxide particles. (2) Fe-5 and 10at%Al alloys showed coarse columnar grains. (3) Fe-2at%Ti shows a mixture of fine equiaxed and columnar shape grains. (4) the microstructures of Fe-5at%Ti and 10at%Ti alloys are fully equiaxed, and grain refinement tendency was confirmed with increasing Ti content. Ti(N,O) oxi-nitrides are efficient in reducing the grain size because of the low lattice misfit with the ferrite matrix. Additionally, the effectiveness of Ti(N,O) particles as grain refiners was confirmed by building samples using TiN powder mixed with Fe-10at%Al and Fe-2at%Ti. While these alloys alone are coarse grained, a dispersion of Ti(N,O) particles achieved a fine-grained microstructure.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 580-586
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.580
• Online since: January 2021
• Authors: Hideaki Ikehata*, Eric Jägle
• Keywords: Grain Refinement, Laser Powder Bed Fusion, Lattice Misfit, Nitride, Oxide

References

[1] H. Zhang, H, Zhu, X. Nie, J. Yin, Z. Hu, X. Zeng, Effect of Zirconium addition on crack, microstructure and mechanical behavior of selective laser melted Al-Cu-Mg alloys, Scripta Materialia, 134 (2017) 6-10.

DOI: 10.1016/j.scriptamat.2017.02.036

[2] M. L. Montero-Sistiaga, R. Mertens, B. Vrancken, X. Wang, B. V. Hooreweder, J. P. Kruth, J. B. Humbeeck, Changing the alloy composition of Al7075 for better processability by selective laser melting, J. of Material Processing Te chnology, 238 (2016) 437-445.

DOI: 10.1016/j.jmatprotec.2016.08.003

[3] I. Yadroitsev, P. Krakhmalev, I. Yadroitsava, S. Johansson, I. Smurov, Energy input effect on morphology and microstructure of selective laser melting single track from metallic powder, Journal of Materials Processing Technology, 213 (2013) 606-613.

DOI: 10.1016/j.jmatprotec.2012.11.014

[4] B. L. Bramfitt, The Effect of Carbide and Nitride Additions on the heterogeneous Nucleation Behavior of Liquid Iron, Metallurgical Transactions, 1 (1988) 1970-1987.

DOI: 10.1007/bf02642799

[5] Z.-G. Yang, M. Enomoto, Discrete lattice plane analysis of Baker-Nutting related B1 compound/ferrite interfacial energy, Materials Science & Engineering A, A332 (2002) 184-192.

DOI: 10.1016/s0921-5093(01)01729-4
