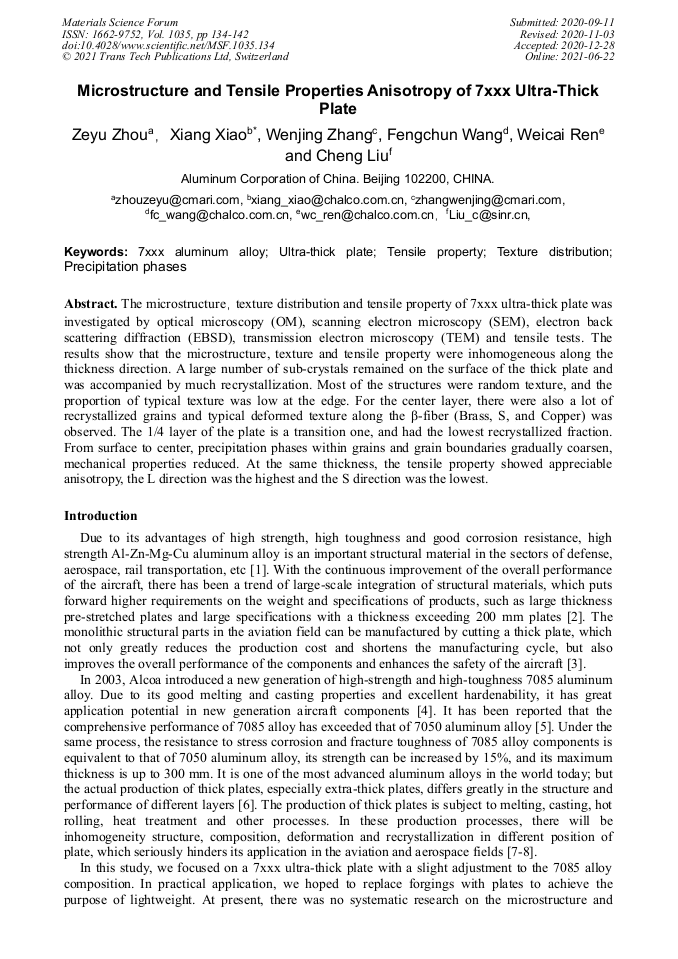

Microstructure and Tensile Properties Anisotropy of 7xxx Ultra-Thick Plate

Abstract:

The microstructure，texture distribution and tensile property of 7xxx ultra-thick plate was investigated by optical microscopy (OM), scanning electron microscopy (SEM), electron back scattering diffraction (EBSD), transmission electron microscopy (TEM) and tensile tests. The results show that the microstructure, texture and tensile property were inhomogeneous along the thickness direction. A large number of sub-crystals remained on the surface of the thick plate and was accompanied by much recrystallization. Most of the structures were random texture, and the proportion of typical texture was low at the edge. For the center layer, there were also a lot of recrystallized grains and typical deformed texture along the β-fiber (Brass, S, and Copper) was observed. The 1/4 layer of the plate is a transition one, and had the lowest recrystallized fraction. From surface to center, precipitation phases within grains and grain boundaries gradually coarsen, mechanical properties reduced. At the same thickness, the tensile property showed appreciable anisotropy, the L direction was the highest and the S direction was the lowest.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 134-142
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.134
• Online since: June 2021
• Authors: Ze Yu Zhou, Xiang Xiao*, Wen Jing Zhang, Feng Chun Wang, Wei Cai Ren, Cheng Liu
• Keywords: 7xxx Aluminum Alloy, Precipitation Phases, Tensile Properties, Texture Distribution, Ultra-Thick Plate

References

[1] H. Fang, K. Chen, Z. Zhang, et al. Effect of Yb additions on microstructures and properties of 7A60 aluminum alloy[J]. Transactions of Nonferrous Metals Society of China. 18 (2008) 28-32.

DOI: 10.1016/s1003-6326(08)60006-0

[2] E. Schwarzenböck, E. Ollivier, A. Garner, et al. Environmental cracking performance of new generation thick plate 7000-T7x series alloys in humid air[J]. Corrosion Science. 171 (2020) 108701.

DOI: 10.1016/j.corsci.2020.108701

[3] J. Burns, J. Boselli. Effect of plate thickness on the environmental fatigue crack growth behavior of AA7085-T7451[J]. International Journal of Fatigue. 83 (2016) 253-268.

DOI: 10.1016/j.ijfatigue.2015.10.020

[4] Y. Wang, L. Cao, X. Wu, et al. Effect of retrogression treatments on microstructure, hardness and corrosion behaviors of aluminum alloy 7085[J]. Journal of Alloys and Compounds. (814) 2020 152264.

DOI: 10.1016/j.jallcom.2019.152264

[5] C. Li, S. Wang, D. Zhang, et al. Effect of Zener-Hollomon parameter on quench sensitivity of 7085 aluminum alloy[J]. Journal of Alloys and Compounds. 688 (2016) 456-462.

DOI: 10.1016/j.jallcom.2016.07.089

[6] C. Li , K. He, F. Song, et al. Inhomogeneity of microstructure and properties of 7085-T651 aluminum alloy extra-thick plate[J]. Journal of Aeronautical Materials. (36) 2016 15-22.

[7] J. Robinson, R. Cudd, D. Tanner, et al. Quench sensitivity and tensile property inhomogeneity in 7010 forgings[J]. Journal of Materials Processing Technology. 119 (2001) 261-267.

DOI: 10.1016/s0924-0136(01)00927-x

[8] X. Zhang, N. Han, S. Liu , et al. Inhomogeneity of texture, tensile property and fracture toughness of 7050 aluminum alloy thick plate[J]. Chinese Journal of Nonferrous Metals. 20 (2010) 202-208.

[9] X. Ren, Y. Huang, Y. Liu, et al. Evolution of microstructure, texture, and mechanical properties in a twin-roll cast AA6016 sheet after asymmetric rolling with various velocity ratios between top and bottom rolls[J]. Materials Science and Engineering: A. (2020) 139448.

DOI: 10.1016/j.msea.2020.139448

[10] F. Shen, Z. Sun, W. Li , et al. Texture evolution in hot-rolled Al–Cu–Mg sheets using direction streamline approach and texture index[J]. Journal of Alloys and Compounds. (816) 2020 152415.

DOI: 10.1016/j.jallcom.2019.152415

[11] C. Sellars, Q. Zhu. Microstructural modelling of aluminium alloys during thermomechanical processing[J]. Materials Science & Engineering A. 280 (2000) 1-7.

DOI: 10.1016/s0921-5093(99)00648-6

[12] H. Ahmed, M. Wells, D. Maijer. Modelling of microstructure evolution during hot rolling of AA5083 using an internal state variable approach integrated into an FE model[J]. Materials Science & Engineering A Structural Materials. A390 (2005) 278-290.

DOI: 10.1016/j.msea.2004.08.045

[13] H. Ashtiani, H. Bisadi, M. Parsa. Inhomogeneity of temperature distribution through thickness of the aluminium strip during hot rolling[J]. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering ence. 225 (2011) 2938-2952.

DOI: 10.1177/0954406211408951

[14] X. Duan, T. Sheppard. Influence of forming parameters on static recrystallization behaviour during hot rolling aluminium alloy 5083[J]. Modelling & Simulation in Materials Science & Engineering. 10 (2002) 363-380.

DOI: 10.1088/0965-0393/10/4/301

[15] Y. Wang, M. Liu, W. Xiao, et al. Effects of multi-stage aging treatments on the precipitation behavior and properties of 7136 aluminum alloy[J]. Journal of Alloys and Compounds.814 ( 2020) 152256.

DOI: 10.1016/j.jallcom.2019.152256

[16] H. Huang, F. Jiang, X. Liu , et al. Effects of Al3(Sc, Zr) particles and shear bands on recrystallization and fracture behaviors of Al-Mg-Sc-Zr alloy[J]. Chinese Journal of Nonferrous Metals. 25 (2015) 1117-1127.

DOI: 10.1007/s11665-015-1748-y

[17] M. Starink, S. Wang . A model for the yield strength of overaged Al–Zn–Mg–Cu alloys[J]. Acta Materialia. 51 (2003) 5131-5150.

DOI: 10.1016/s1359-6454(03)00363-x

[18] H. She, D. Shu, J. Wang, B. Sun. Influence of multi-microstructural alterations on tensile property inhomogeneity of 7055 aluminum alloy medium thick plate[J]. Materials Characterization. 113 (2016) 189-197.

DOI: 10.1016/j.matchar.2016.01.020

[19] S. Choi, J. Brem , F. Barlat, et al. MACROSCOPIC ANISOTROPY IN AA50l9A SHEETS[J]. Acta Materialia. 48 (2000) 1853-1863.

DOI: 10.1016/s1359-6454(99)00470-x

[20] F. Roters, P. Eisenlohr, L. Hantcherli, et al. Overview of constitutive laws, kinematics, homogenization and multiscale methods in crystal plasticity finite-element modeling: Theory, experiments, applications[J]. Acta Materialia. 58 (2010) 1152-1211.

DOI: 10.1016/j.actamat.2009.10.058

[21] P. Bate, Y. An. Plastic anisotropy in AA5005 Al–1Mg: predictions using crystal plasticity finite element analysis[J]. Scripta materialia. 51 (2004) 973-977.

DOI: 10.1016/j.scriptamat.2004.07.018

[22] S. Choi, J. Brem, F. Barlat, et al. Macroscopic anisotropy in AA5019A sheets[J]. Acta materialia. 48 (2000) 1853-1863.

DOI: 10.1016/s1359-6454(99)00470-x
