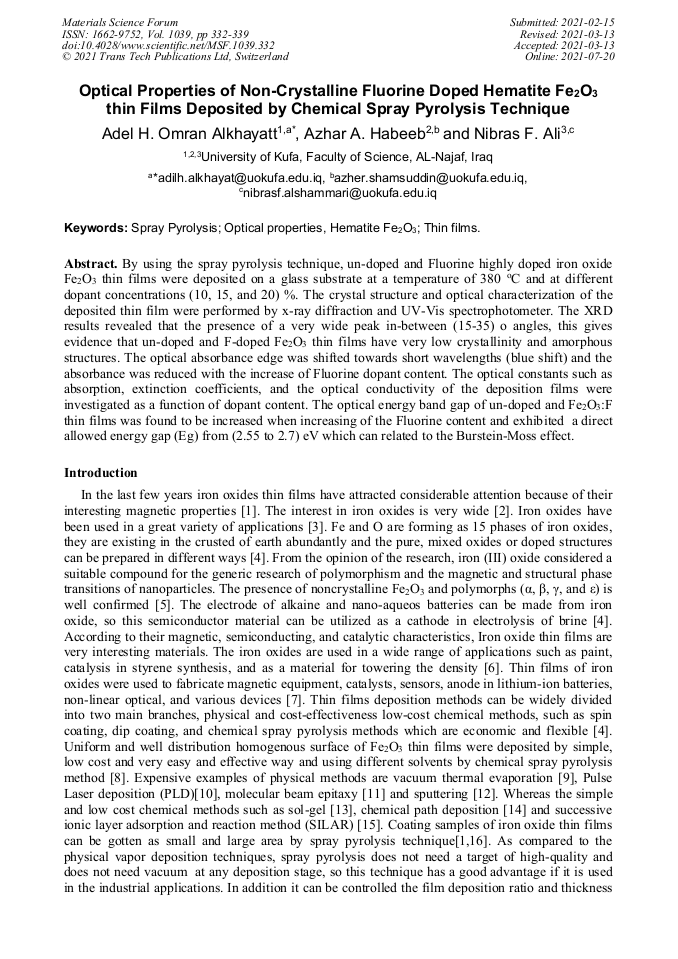

Optical Properties of Non-Crystalline Fluorine Doped Hematite Fe₂O₃ Thin Films Deposited by Chemical Spray Pyrolysis Technique

Abstract:

By using the spray pyrolysis technique, un-doped and Fluorine highly doped iron oxide Fe2O3 thin films were deposited on a glass substrate at a temperature of 380 oC and at different dopant concentrations (10, 15, and 20) %. The crystal structure and optical characterization of the deposited thin film were performed by x-ray diffraction and UV-Vis spectrophotometer. The XRD results revealed that the presence of a very wide peak in-between (15-35) o angles, this gives evidence that un-doped and F-doped Fe2O3 thin films have very low crystallinity and amorphous structures. The optical absorbance edge was shifted towards short wavelengths (blue shift) and the absorbance was reduced with the increase of Fluorine dopant content. The optical constants such as absorption, extinction coefficients, and the optical conductivity of the deposition films were investigated as a function of dopant content. The optical energy band gap of un-doped and Fe2O3:F thin films was found to be increased when increasing of the Fluorine content and exhibited a direct allowed energy gap (Eg) from (2.55 to 2.7) eV which can related to the Burstein-Moss effect.

• Periodical: Materials Science Forum (Volume 1039)
• Pages: 332-339
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1039.332
• Online since: July 2021
• Authors: Adel H. Omran Alkhayatt*, Azhar A. Habeeb, Nibras Fadhil Ali
• Keywords: Hematite Fe₂O₃, Optical Properties, Spray Pyrolysis, Thin Films

References

[1] R.N. Goyal, D. Kaur, A. K. Pandey,Materials Chemistry and Physics, 116, 638–644 (2009).

[2] M.A. Garcia-Lobato, A.I. Martinez, M.Castro-Roman, C.Falcony and L.Escobar-Alarcon", Physica B, 406 , 1496–1500 (2011).

DOI: 10.1016/j.physb.2011.01.056

[3] M.A. Garcia-Lobato, A.I. Martinez, D.L. Perry, M. Castro-Roman, R.A. Zarate and L.Escobar-Alarcon, Solar Energy Materials & Solar Cells, 95, 751–758 (2011).

DOI: 10.1016/j.solmat.2010.10.017

[4] J.D. Desai, H.M. Pathan, S.K. Min, Kwang-Deog Jung and Oh-Shim Joo, Applied Surface Science, 252, 2251–2258 (2006).

[5] M. Chirita, and I. Grozescu, Chem. Bull. POLITEHNICA, Univ. (Timisoara), 54(68), 1-8, (2009).

[6] J.D. Desai, H.M. Pathan, S.K. Min, Kwang-Deog Jung and Oh-Shim Joo, Applied Surface Science, 252 ,8039–8042 ((2006).

[7] A.A. Akl, Applied Surface Science ,256 ,7496-7503 (2010).

[8] B. Ouertani, J. Ouerfelli, M. Saadoun, H. Ezzaouia and B. Bessaïs, Thin Solid Films, 516, 8584-8586 (2008).

DOI: 10.1016/j.tsf.2008.06.015

[9] A.Z. Moshfegh, R. Azimirad and O. Akhavan, Thin Solid Films, 484, 124 – 131(2005).

DOI: 10.1016/j.tsf.2005.02.019

[10] T. Tepper and C. A. Ross, J. Appl. Phys., 91(7), 4453-4456 (2002).

[11] Y. Gao, Y.J. Kim, S. Thevuthasan, S.A. Chambers, and P. Lubitz, J. Appl. Phys. 81(7), 3253-3256 (1997);.

[12] L. Ji, K. Harbauer, P. Bogdanoff, K. Ellmer and S. Fiechter, Journal of Materials Science & Technology, 31, 655-659 (2015(.

DOI: 10.1016/j.jmst.2014.10.007

[13] U. Khan, A. Akbar, H. Yousaf, S. Riaz and S. Naseem, Materials Today: Proceedings, 2, 5415-5420 (2015).

DOI: 10.1016/j.matpr.2015.11.061

[14] Hayoung Choi, Yaejin Hong, Hyukhyun Ryu and Won-Jae Lee, Photoelectrochemical properties of hematite thin films grown by MW-CBD, Surface and Coating Technology, 33, 259-266, (2018).

DOI: 10.1016/j.surfcoat.2017.11.018

[15] M.R. Belkhedkar, A.U. Ubale, Y.S. Sakhare, Naushad Zubair, M. Musaddique, Characterization and antibacterial activity of nanocrystalline Mn doped Fe2O3 thin films grown by successive ionic layer adsorptionand reaction method, Journal of the Association of Arab Universities for Basic and Applied Sciences 21, 38–44, (2016).

DOI: 10.1016/j.jaubas.2015.03.001

[16] M.García-Lobato, A. Hernández-V, H. M. Hdz-García, A. I. Martinez and M.I. Pech-Canul., Materials Science Forum, 644, 105–108(2010).

DOI: 10.4028/www.scientific.net/msf.644.105

[17] A.A. Akl, Applied Surface Science, 221, 319–329, (2004).

[18] X. Qian, X. Zhang, Y. Bai, T. Li, X. Tang, E. Wang and S. Dong, Journal of Nanoparticle Research, 2 ,191–198, (2000).

[19] A.A. Tahir, K.G. Upul Wijayantha, S. Saremi-Yarahmadi, M.Mazhar, and V. McKee, Chem. Mater, 21, 3763–3772 ( 2009).

DOI: 10.1021/cm803510v

[20] A.H. Omran.Alkhayatt, Al- Qadisyah Journal for Science, 14(2), 76-88 (2009).

[21] A.H. Omran and S.K. Hussian, Journal of Kufa- Physics, 5(1), 69-78 (2013).

[22] S.A. Hussain, A.H. Omran Al- lkhayatt and E.A. Mahdi, IOSR Journal of Applied Physics (IOSR-JAP), 8 (5) Ver. I 44-49 (2016).

[23] A.F. Qasrawi and A.A. Hamamdah., Microw. Opt. Technol. Lett., 62(4),1453-1458 (2020).

[24] N.F.Al.Shammary, J. Kufa-Phys., 2,22–27 (2010).

[25] F.Souza, K.P. Lopes, P.A.P. Nascente and E.R. Leite, Solar Energy Materials & Solar Cells, 93, 362–368 (2009).

DOI: 10.1016/j.solmat.2008.11.049

[26] G.M. Hussein Al-Haddad,Structural and Some Optical Characteristics of Sol-Gel Coated Nanocrystalline CdS: F Thin Film,, MSc. Thesis, College of Science, Kufa Univercity, (2016).

[27] A. H. Omran Alkhayatta and S. K. Hussian, Surfaces and Interfaces 81,76–181 (2017).

[28] L. Dghoughi, B. Elidrissi, C. Berne`de, M. Addou, M. Alaoui Lamrani, M. Regragui and H. Erguig, Applied Surface Science, 253,1823–1829 (2006).

DOI: 10.1016/j.apsusc.2006.03.021
