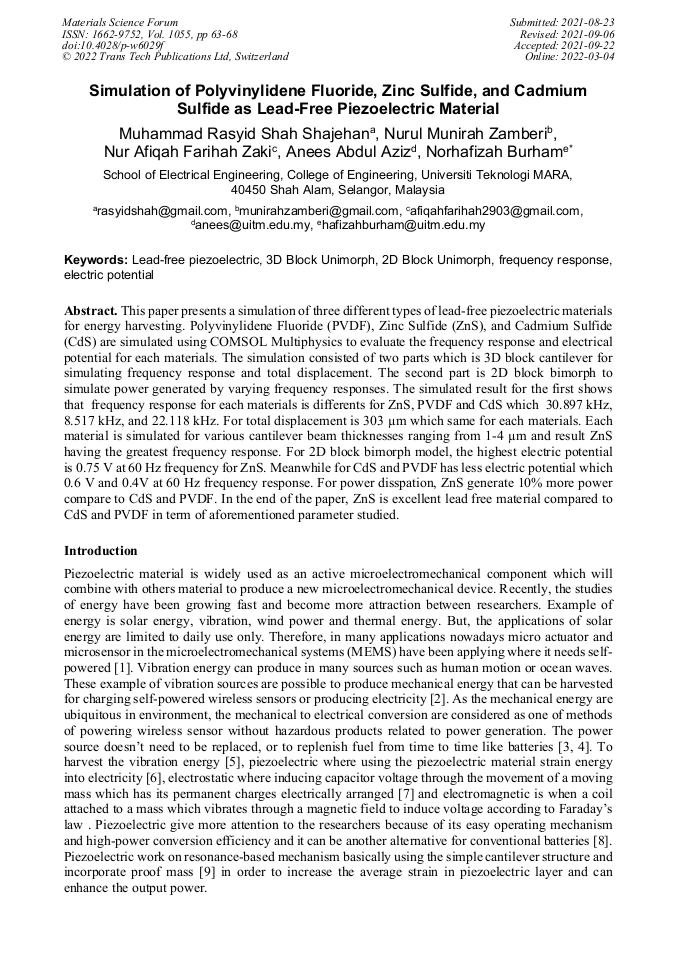

Simulation of Polyvinylidene Fluoride, Zinc Sulfide, and Cadmium Sulfide as Lead-Free Piezoelectric Material

Abstract:

This paper presents a simulation of three different types of lead-free piezoelectric materials for energy harvesting. Polyvinylidene Fluoride (PVDF), Zinc Sulfide (ZnS), and Cadmium Sulfide (CdS) are simulated using COMSOL Multiphysics to evaluate the frequency response and electrical potential for each materials. The simulation consisted of two parts which is 3D block cantilever for simulating frequency response and total displacement. The second part is 2D block bimorph to simulate power generated by varying frequency responses. The simulated result for the first shows that frequency response for each materials is differents for ZnS, PVDF and CdS which 30.897 kHz, 8.517 kHz, and 22.118 kHz. For total displacement is 303 µm which same for each materials. Each material is simulated for various cantilever beam thicknesses ranging from 1-4 µm and result ZnS having the greatest frequency response. For 2D block bimorph model, the highest electric potential is 0.75 V at 60 Hz frequency for ZnS. Meanwhile for CdS and PVDF has less electric potential which 0.6 V and 0.4V at 60 Hz frequency response. For power disspation, ZnS generate 10% more power compare to CdS and PVDF. In the end of the paper, ZnS is excellent lead free material compared to CdS and PVDF in term of aforementioned parameter studied.

• Periodical: Materials Science Forum (Volume 1055)
• Pages: 63-68
• DOI: https://doi.org/10.4028/p-w6029f
• Online since: March 2022
• Authors: Muhammad Rasyid Shah Shajehan, Nurul Munirah Zamberi, Nur Afiqah Farihah Zaki, Anees Abdul Aziz, Norhafizah Burham*
• Keywords: 2D Block Unimorph, 3D Block Unimorph, Electric Potential, Frequency Response, Lead-Free Piezoelectric

References

[1] Pan, C., et al., Design and fabrication of flexible piezo-microgenerator by depositing ZnO thin films on PET substrates. Sensors and Actuators A: Physical, 2010. 159(1): pp.96-104.

DOI: 10.1016/j.sna.2010.02.023

[2] Wei, C. and X. Jing, A comprehensive review on vibration energy harvesting: Modelling and realization. Renewable and Sustainable Energy Reviews, 2017. 74: pp.1-18.

DOI: 10.1016/j.rser.2017.01.073

[3] Feng, G.-H. and J.-C. Hung, Development of wide frequency range-operated micromachined piezoelectric generators based on figure-of-merit analysis. Microsystem Technologies, 2008. 14(3): pp.419-425.

DOI: 10.1007/s00542-007-0538-3

[4] Burham, N., et al. Development of Piezoelectric Energy Harvesting via Vehicle Movements. in 2019 IEEE 13th International Conference on Telecommunication Systems, Services, and Applications (TSSA). 2019. IEEE.

DOI: 10.1109/tssa48701.2019.8985469

[5] Dhakar, L., et al., A new energy harvester design for high power output at low frequencies. Sensors and Actuators A: Physical, 2013. 199: pp.344-352.

DOI: 10.1016/j.sna.2013.06.009

[6] Kim, S.-I., et al., Low frequency properties of micro power generator using a gold electroplated coil and magnet. Current Applied Physics, 2008. 8(2): pp.138-141.

DOI: 10.1016/j.cap.2007.06.005

[7] Giordano, C., et al., AlN on polysilicon piezoelectric cantilevers for sensors/actuators. Microelectronic Engineering, 2009. 86(4-6): pp.1204-1207.

DOI: 10.1016/j.mee.2008.12.075

[8] Saha, C., et al., Electromagnetic generator for harvesting energy from human motion. Sensors and Actuators A: Physical, 2008. 147(1): pp.248-253.

DOI: 10.1016/j.sna.2008.03.008

[9] Cook-Chennault, K.A., N. Thambi, and A.M. Sastry, Powering MEMS portable devices—a review of non-regenerative and regenerative power supply systems with special emphasis on piezoelectric energy harvesting systems. Smart materials and structures, 2008. 17(4): p.043001.

DOI: 10.1088/0964-1726/17/4/043001

[10] Talib, N., et al., Comprehensive review on effective strategies and key factors for high performance piezoelectric energy harvester at low frequency. International Journal of Automotive and Mechanical Engineering, 2019. 16(4): pp.7181-7210.

DOI: 10.15282/ijame.16.4.2019.03.0537

[11] Safaei, M., H.A. Sodano, and S.R. Anton, A review of energy harvesting using piezoelectric materials: state-of-the-art a decade later (2008–2018). Smart Materials and Structures, 2019. 28(11): p.113001.

DOI: 10.1088/1361-665x/ab36e4

[12] Zaki, N.A.F., et al. Simulation of Zinc Oxide, Barium Sodium Niobate, and Barium Titanate as Lead-Free Piezoelectric Materials. in 2021 IEEE Regional Symposium on Micro and Nanoelectronics (RSM). (2021).

DOI: 10.1109/rsm52397.2021.9511615

[13] Chaudhuri, D., S. Kundu, and N. Chattoraj. Harvesting energy with zinc oxide bio-compatible piezoelectric material for powering cochlear implants. in 2017 Innovations in Power and Advanced Computing Technologies (i-PACT). 2017. IEEE.

DOI: 10.1109/ipact.2017.8245043

[14] Guo, L., et al., Electroconductive textiles and textile-based electromechanical sensors—integration in as an approach for smart textiles, in Smart textiles and their applications. 2016, Elsevier. pp.657-693.

DOI: 10.1016/b978-0-08-100574-3.00028-x

[15] Cauda, V., et al., Nanoconfinement: an Effective Way to Enhance PVDF Piezoelectric Properties. ACS Applied Materials & Interfaces, 2013. 5(13): pp.6430-6437.

DOI: 10.1021/am4016878

[16] Lin, Y.-F., et al., Piezoelectric nanogenerator using CdS nanowires. Applied Physics Letters, 2008. 92(2): p.022105.
