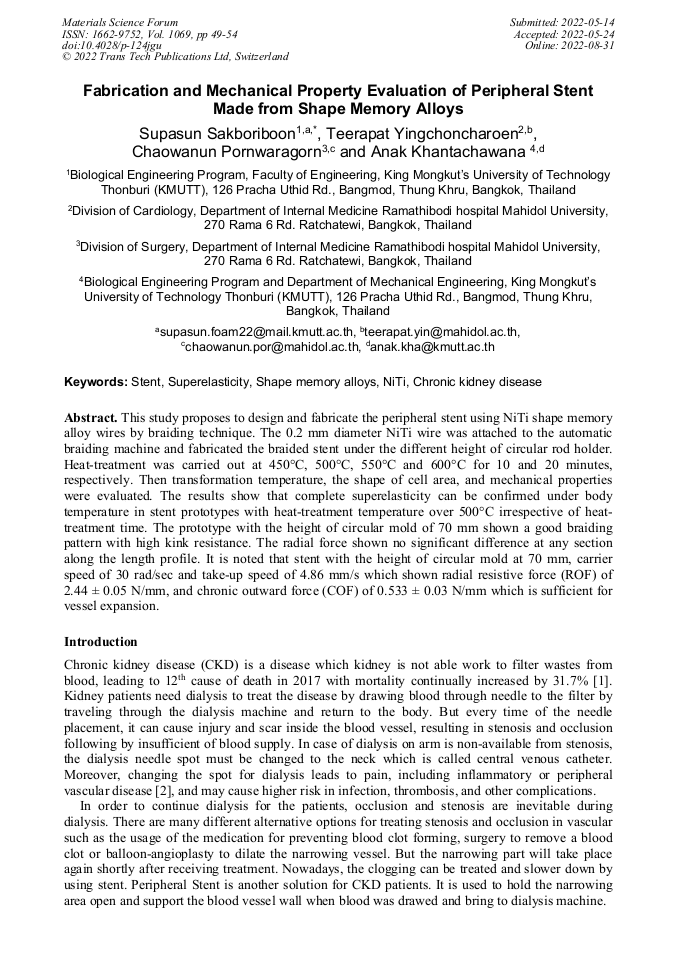

Fabrication and Mechanical Property Evaluation of Peripheral Stent Made from Shape Memory Alloys

Abstract:

This study proposes to design and fabricate the peripheral stent using NiTi shape memory alloy wires by braiding technique. The 0.2 mm diameter NiTi wire was attached to the automatic braiding machine and fabricated the braided stent under the different height of circular rod holder. Heat-treatment was carried out at 450°C, 500°C, 550°C and 600°C for 10 and 20 minutes, respectively. Then transformation temperature, the shape of cell area, and mechanical properties were evaluated. The results show that complete superelasticity can be confirmed under body temperature in stent prototypes with heat-treatment temperature over 500°C irrespective of heat-treatment time. The prototype with the height of circular mold of 70 mm shown a good braiding pattern with high kink resistance. The radial force shown no significant difference at any section along the length profile. It is noted that stent with the height of circular mold at 70 mm, carrier speed of 30 rad/sec and take-up speed of 4.86 mm/s which shown radial resistive force (ROF) of 2.44 ± 0.05 N/mm, and chronic outward force (COF) of 0.533 ± 0.03 N/mm which is sufficient for vessel expansion.

You might also be interested in these eBooks

Materials Science, Manufacturing and Civil Engineering

View Preview

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1069)

Pages:

49-54

DOI:

https://doi.org/10.4028/p-124jgu

Citation:

Cite this paper

Online since:

August 2022

Authors:

Supasun Sakboriboon*, Teerapat Yingchoncharoen, Chaowanun Pornwaragorn, Anak Khantachawana

Keywords:

Chronic Kidney Disease, NiTi, Shape Memory Alloys, Stent, Superelasticity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Global, regional, and national life expectancy, all-cause mortality, and cause-specific mortality for 249 causes of death, 1990–2015: a systematic analysis for the Global Burden of Disease Study 2015. The Lancet, Vol. 388 (2016), p.1459–1544.

DOI: 10.1016/s0140-6736(14)61682-2

Google Scholar

[2] Sara N Davison: Pain in hemodialysis patients' prevalence, cause, severity, and management, Vol. 42 (2003), p.1239–1247.

DOI: 10.1053/j.ajkd.2003.08.025

Google Scholar

[3] Takao Hanawa: Materials for metallic stents, Vol .12 (2009), p.73–79.

Google Scholar

[4] Levent Oncel, M. Ercan Acma: Effect of Heat Treatment Temperature and Heat Treatment Time on Properties and use of NiTi Shape Memory Implant Material, Vol.4 (2017), pp.64-69.

DOI: 10.17148/iarjset.2017.4115

Google Scholar

[5] Dr. Ayman Al-Sibaie, LINC ME 2015 [Online], Available: https://lincme2015.cncptdlx.com/media/lid15t_1449_AlSibaie.pdf.

Google Scholar

[6] PMA P120020: FDA Summary of Safety and Effectiveness Data [Online], Available: https://www.accessdata.fda.gov/cdrh_docs/pdf12/P120020b.pdf.

Google Scholar

[7] Kitahara, H., Okada, K., Kimura, T., Yock, P. G., Lansky, A. J., Popma, J. J., Honda, Y.: Impact of Stent Size Selection on Acute and Long-Term Outcomes After Drug-Eluting Stent Implantation in De Novo Coronary Lesions. Circulation, Cardiovascular Interventions, Vol.10 (2017), No.10.

DOI: 10.1161/circinterventions.116.004795

Google Scholar
