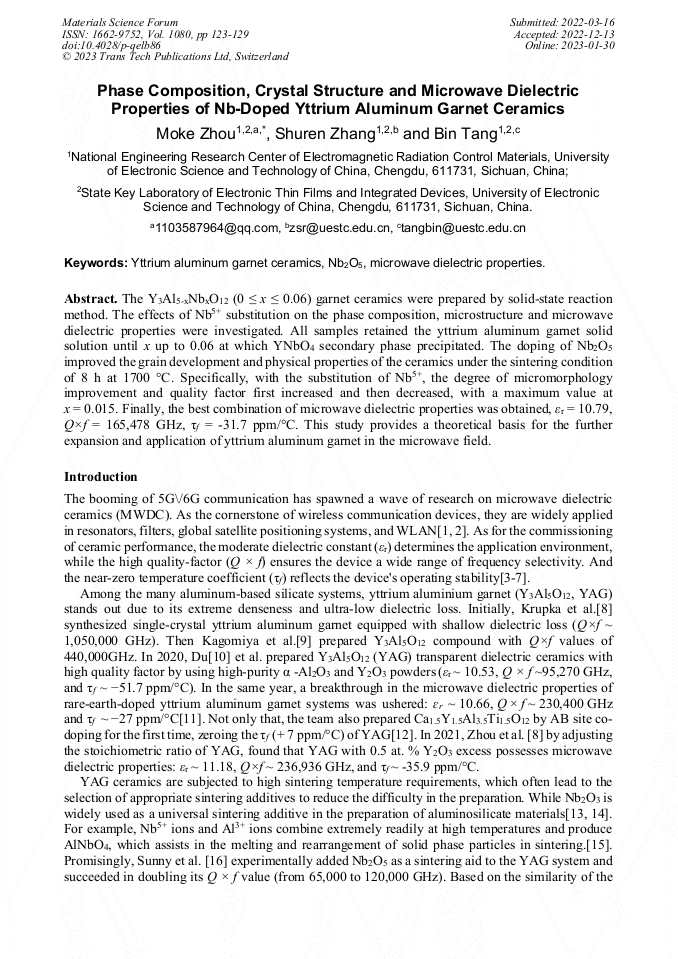

Phase Composition, Crystal Structure and Microwave Dielectric Properties of Nb-Doped Yttrium Aluminum Garnet Ceramics

Abstract:

The Y₃Al_5-xNb_xO₁₂ (0 ≤ x ≤ 0.06) garnet ceramics were prepared by solid-state reaction method. The effects of Nb⁵⁺ substitution on the phase composition, microstructure and microwave dielectric properties were investigated. All samples retained the yttrium-aluminum garnet solid solution form until x up to 0.06 at which YNbO₄ secondary phase precipitated. The doping of Nb₂O₅ improved the grain development and enhanced the physical properties of the ceramics under the sintering condition of 8 h at 1700 °C. Specifically, with the substitution of Nb⁵⁺, the degree of micromorphology improvement and quality factor first increased and then decreased, with a maximum value at x = 0.015. Finally, the best combination of microwave dielectric properties was obtained, i.e., ε_r = 10.79, Q×f = 165,478 GHz, τ_f = -31.7 ppm/°C. This study provides a theoretical basis for the further expansion and application of yttrium aluminum garnet in the microwave field. Keywords: Yttrium Aluminum Garnet ceramics, Nb₂O₅, microwave dielectric properties.

• Periodical: Materials Science Forum (Volume 1080)
• Pages: 123-129
• DOI: https://doi.org/10.4028/p-qelb86
• Online since: January 2023
• Authors: Mo Ke Zhou*, Shu Ren Zhang, Bin Tang
• Keywords: Microwave Dielectric Properties, Nb₂O₅, Yttrium Aluminum Garnet Ceramics

References

[1] A.J. Moulson, J.M. Herbert, Electroceramics: materials, properties, applications, John Wiley & Sons2003.

[2] M.T. Sebastian, R. Ubic, H. Jantunen, Microwave materials and applications, John Wiley & Sons2017.

[3] M. Zhou, H. Chen, X. Zhang, B. Tang, Phase composition, microstructure, and microwave dielectric properties of non-stoichiometric yttrium aluminum garnet ceramics, Journal of the European Ceramic Society, 42 (2022) 472-477.

DOI: 10.1016/j.jeurceramsoc.2021.10.040

[4] X. Zhang, X. Zhang, Z. Fang, Z. Xiong, H. Yang, S. Zhang, B. Tang, Effects of Lattice Evolution and Ordering on the Microwave Dielectric Properties of Tin-Modified Li3Mg2NbO6-Based Ceramics, The Journal of Physical Chemistry C, 124 (2020) 22069-22081.

DOI: 10.1021/acs.jpcc.0c04762

[5] M.T. Sebastian, Dielectric materials for wireless communication, Elsevier2010.

[6] F.-F. Wu, D. Zhou, C. Du, B.-B. Jin, C. Li, Z.-M. Qi, S. Sun, T. Zhou, Q. Li, X.-Q. Zhang, Design of a Sub-6 GHz Dielectric Resonator Antenna with Novel Temperature-Stabilized (Sm1–xBix)NbO4 (x = 0–0.15) Microwave Dielectric Ceramics, ACS Applied Materials & Interfaces, 14 (2022) 7030-7038.

DOI: 10.1021/acsami.1c24307

[7] H.-H. Guo, D. Zhou, W.-F. Liu, L.-X. Pang, D.-W. Wang, J.-Z. Su, Z.-M. Qi, Microwave dielectric properties of temperature-stable zircon-type (Bi, Ce)VO4 solid solution ceramics, Journal of the American Ceramic Society, 103 (2020) 423-431.

DOI: 10.1111/jace.16759

[8] J. Krupka, K. Derzakowski, M. Tobar, J. Hartnett, R.G. Geyer, Complex permittivity of some ultralow loss dielectric crystals at cryogenic temperatures, Measurement Science Technology, 10 (1999) 387.

DOI: 10.1088/0957-0233/10/5/308

[9] I. Kagomiya, Y. Matsuda, K. Kakimoto, H. Ohsato, Microwave dielectric properties of YAG ceramics, Ferroelectrics, 387 (2009) 1-6.

DOI: 10.1080/00150190902966016

[10] C. Du, M.S. Fu, D. Zhou, H.H. Guo, H.T. Chen, J. Zhang, J.P. Wang, S.F. Wang, H.W. Liu, W.F. Liu, Dielectric resonator antenna with Y3Al5O12 transparent dielectric ceramics for 5G millimeter‐wave applications, Journal of the American Ceramic Society, (2021).

DOI: 10.1111/jace.17878

[11] S. Yu, W. Jing, W. Yin, M. Tang, T. Xu, B. Kang, Microwave dielectric properties of Nd:YAG transparent ceramics, Journal of Materials Science: Materials in Electronics, 27 (2016) 9767-9771.

DOI: 10.1007/s10854-016-5041-0

[12] S. Peng, C. Zhao, G. Huang, S. Wang, J. Xu, X. Li, S. Yu, Crystal structure, sintering behavior and microwave dielectric properties of CaxY3−xAl5−xTixO12 (0≤ x≤ 2.0) solid solution ceramics, Journal of Materials Science: Materials in Electronics, 29 (2018) 17047-17053.

DOI: 10.1007/s10854-018-9801-x

[13] C. Chen, W. Li, Effect of Nb2O5 and MgO/Nb2O5 doping on densification, microstructure and wear resistance of alumina, Ceramics International, 45 (2019) 18205-18209.

DOI: 10.1016/j.ceramint.2019.04.189

[14] Y.-F. Hsu, Influence of Nb2O5 additive on the densification and microstructural evolution of fine alumina powders, Materials Science and Engineering: A, 399 (2005) 232-237.

DOI: 10.1016/j.msea.2005.03.101

[15] L.B. Gomes, M.M.O. Lima, A.S. Pereira, C.P. Bergmann, Addition of niobia in alumina and its effects at its sintered microstructure, 22 CBECIMAT: Brazilian congress of engineering and materials scienceBrazil, (2016).

[16] A. Sunny, V. Viswanath, K.P. Surendran, M.T. Sebastian, The effect of Ga3+ addition on the sinterability and microwave dielectric properties of RE3Al5O12 (Tb3+, Y3+, Er3+ and Yb3+) garnet ceramics, Ceramics International, 40 (2014) 4311-4317.

DOI: 10.1016/j.ceramint.2013.08.097

[17] B.H. Toby, R.B. Von Dreele, GSAS-II: the genesis of a modern open-source all purpose crystallography software package, Journal of Applied Crystallography, 46 (2013) 544-549.

DOI: 10.1107/s0021889813003531

[18] B.W. Hakki, P.D. Coleman, A Dielectric Resonator Method of Measuring Inductive Capacities in the Millimeter Range, IRE Transactions on Microwave Theory and Techniques, 8 (1960) 402-410.

DOI: 10.1109/tmtt.1960.1124749

[19] R. Cabral, L. Louro, M. Prado da Silva, J. Campos, E. Lima, Synthesis and characterization of Al2O3-YAG composite and Al2O3-YAG and Al2O3 with Nb2O5 additives, Cerâmica, 58 (2012) 14-19.

DOI: 10.1590/s0366-69132012000100004

[20] M. Rahaman, R. Manalert, Grain boundary mobility of BaTiO3 doped with aliovalent cations, Journal of the European Ceramic Society, 18 (1998) 1063-1071.

DOI: 10.1016/s0955-2219(97)00215-x

[21] C. Peng, Y. Chiang, Grain growth in donor-doped SrTiO3, Journal of Materials Research, 5 (1990) 1237-1245.

[22] S.H. Yoon, J.H. Lee, D.Y. Kim, N. Hwang, Effect of the Liquid‐Phase Characteristic on the Microstructures and Dielectric Properties of Donor‐(Niobium) and Acceptor‐(Magnesium) Doped Barium Titanate, Journal of the American Ceramic Society, 86 (2003) 88-92.

DOI: 10.1111/j.1151-2916.2003.tb03282.x

[23] F. Seitz, On the generation of vacancies by moving dislocations, Advances in Physics, 1 (1952) 43-90.

[24] M. Liu, J. Li, Y. Tang, J. Chen, L. Ao, A. Cao, L. Fang, Tunability of τf in garnet-structured Y3Ga5O12 microwave dielectric ceramics, Journal of the European Ceramic Society, 41 (2021) 7711-7716.

DOI: 10.1016/j.jeurceramsoc.2021.08.033

[25] R.D. Shannon, Dielectric polarizabilities of ions in oxides and fluorides, Journal of Applied Physics, 73 (1993) 348-366.

DOI: 10.1063/1.353856

[26] I. Brown, D. Altermatt, Bond-valence parameters obtained from a systematic analysis of the inorganic crystal structure database, Acta Crystallographica Section B: Structural Science, 41 (1985) 244-247.

DOI: 10.1107/s0108768185002063

[27] D. Yu, D. Xue, Bond analyses of borates from the Inorganic Crystal Structure Database, Acta Crystallographica Section B, 62 (2006) 702-709.

DOI: 10.1107/s0108768106018520

[28] A. Glazer, The classification of tilted octahedra in perovskites, Acta Crystallographica Section B: Structural Crystallography Crystal Chemistry, 28 (1972) 3384-3392.

DOI: 10.1107/s0567740872007976

[29] R. Madhuri, S. Ganesanpotti, Crystal structure, phonon modes, and bond characteristics of AgPb2B2V3O12 (B = Mg, Zn) microwave ceramics, Journal of the American Ceramic Society, 103 (2020) 3157-3167.

DOI: 10.1111/jace.16991
