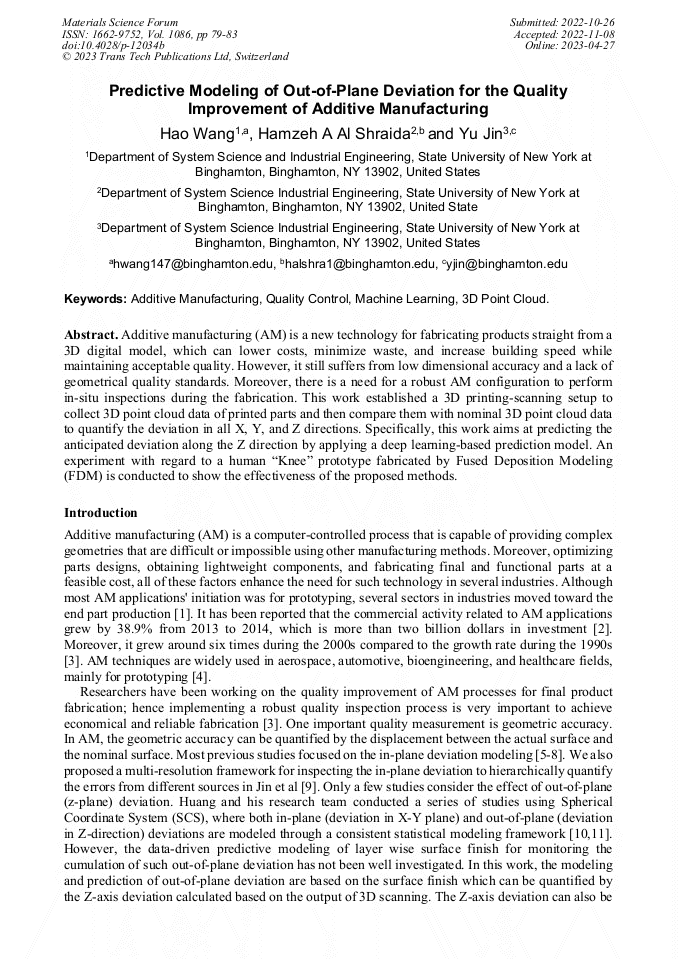

Predictive Modeling of Out-of-Plane Deviation for the Quality Improvement of Additive Manufacturing

Abstract:

Additive manufacturing (AM) is a new technology for fabricating products straight from a 3D digital model, which can lower costs, minimize waste, and increase building speed while maintaining acceptable quality. However, it still suffers from low dimensional accuracy and a lack of geometrical quality standards. Moreover, there is a need for a robust AM configuration to perform in-situ inspections during the fabrication. This work established a 3D printing-scanning setup to collect 3D point cloud data of printed parts and then compare them with nominal 3D point cloud data to quantify the deviation in all X, Y, and Z directions. Specifically, this work aims at predicting the anticipated deviation along the Z direction by applying a deep learning-based prediction model. An experiment with regard to a human “Knee” prototype fabricated by Fused Deposition Modeling (FDM) is conducted to show the effectiveness of the proposed methods.

• Periodical: Materials Science Forum (Volume 1086)
• Pages: 79-83
• DOI: https://doi.org/10.4028/p-12034b
• Online since: April 2023
• Authors: Hao Wang*, Hamzeh A Al. Shraida, Jin Yu
• Keywords: 3D Point Cloud, Additive Manufacturing, Machine Learning, Quality Control

References

[1] Cotteleer, M. and Joyce, J., 2014. 3D opportunity: Additive manufacturing paths to performance, innovation, and growth. Deloitte Review, 14, pp.5-19.

[2] Wong, K.V. and Hernandez, A., 2012. A review of additive manufacturing. International scholarly research notices, 2012.

[3] Kim, H., Lin, Y. and Tseng, T.L.B., 2018. A review on quality control in additive manufacturing. Rapid Prototyping Journal.

[4] Kuan, T., Leong, S., & Wai Yee, Y. (2020). Microstructure modelling for metallic additive manufacturing. Nanyang Technological University, Singapore. Published

DOI: 10.1080/17452759.2019.1677345

[5] Tong, K., Lehtihet, E.A. and Joshi, S., 2003. Parametric error modeling and software error compensation for rapid prototyping. Rapid Prototyping Journal.

DOI: 10.1108/13552540310502202

[6] Tong, K., Joshi, S. and Lehtihet, E.A., 2008. Error compensation for fused deposition modeling (FDM) machine by correcting slice files. Rapid Prototyping Journal.

DOI: 10.1108/13552540810841517

[7] Xu, L., Huang, Q., Sabbaghi, A. and Dasgupta, T., 2013, November. Shape deviation modeling for dimensional quality control in additive manufacturing. In ASME 2013 International Mechanical Engineering Congress and Exposition. American Society of Mechanical Engineers Digital Collection.

DOI: 10.1115/imece2013-66329

[8] Song, S., Wang, A., Huang, Q. and Tsung, F., 2014, August. Shape deviation modeling for fused deposition modeling processes. In 2014 IEEE International Conference on Automation Science and Engineering (CASE) (pp.758-763). IEEE.

DOI: 10.1109/coase.2014.6899411

[9] Jin, Y., Liao, H. and Pierson, H.A., 2020. A multi-resolution framework for automated in-plane alignment and error quantification in additive manufacturing. Rapid Prototyping Journal.

DOI: 10.1108/rpj-07-2019-0183

[10] Zhu, Zuowei, Nabil Anwer, and Luc Mathieu. "Statistical modal analysis for out-of-plane deviation prediction in additive manufacturing based on finite element simulation." Journal of Manufacturing Science and Engineering 141, no. 11 (2019).

DOI: 10.1115/1.4044837

[11] Jin, Yuan, S. Joe Qin, and Qiang Huang. "Modeling inter-layer interactions for out-of-plane shape deviation reduction in additive manufacturing." IISE Transactions 52, no. 7 (2020): 721-731.

DOI: 10.1080/24725854.2019.1676936

[12] Myers, N. O. "Characterization of surface roughness." Wear 5, no. 3 (1962): 182-189.

[13] Hao, Wang, Yu Jin, and Hamzeh A AI Shraida. " Predictive Online Quality Inspection and Compensation of Additive Manufacturing based on a Multi-Resolution Framework." Manuscript to be submitted
