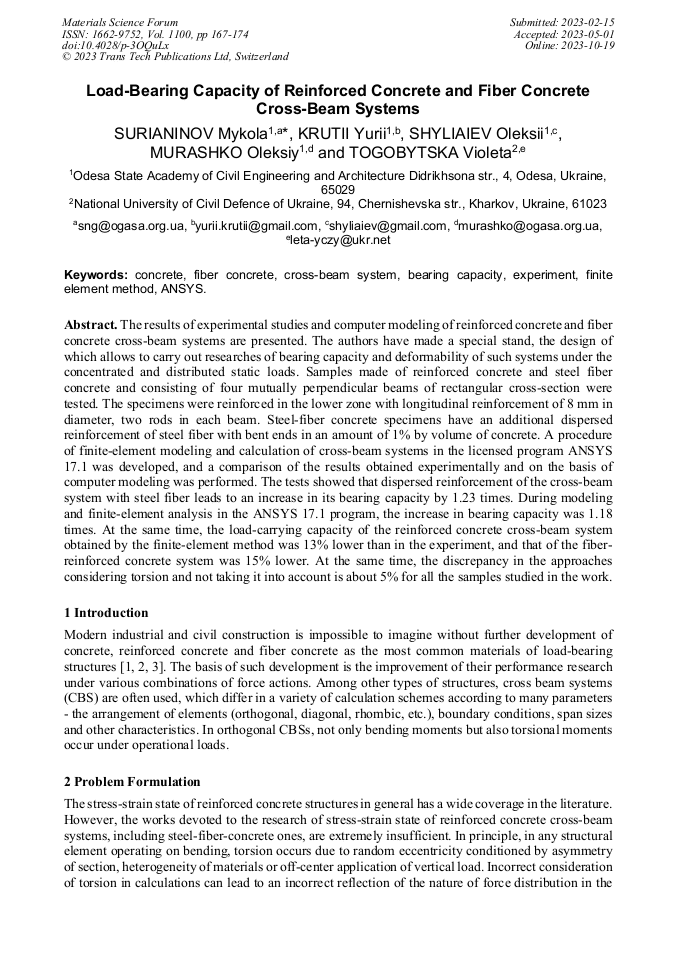

Load-Bearing Capacity of Reinforced Concrete and Fiber Concrete Cross-Beam Systems

Abstract:

The results of experimental studies and computer modeling of reinforced concrete and fiber concrete cross-beam systems are presented. The authors have made a special stand, the design of which allows to carry out researches of bearing capacity and deformability of such systems under the concentrated and distributed static loads. Samples made of reinforced concrete and steel fiber concrete and consisting of four mutually perpendicular beams of rectangular cross-section were tested. The specimens were reinforced in the lower zone with longitudinal reinforcement of 8 mm in diameter, two rods in each beam. Steel-fiber concrete specimens have an additional dispersed reinforcement of steel fiber with bent ends in an amount of 1% by volume of concrete. A procedure of finite-element modeling and calculation of cross-beam systems in the licensed program ANSYS 17.1 was developed, and a comparison of the results obtained experimentally and on the basis of computer modeling was performed. The tests showed that dispersed reinforcement of the cross-beam system with steel fiber leads to an increase in its bearing capacity by 1.23 times. During modeling and finite-element analysis in the ANSYS 17.1 program, the increase in bearing capacity was 1.18 times. At the same time, the load-carrying capacity of the reinforced concrete cross-beam system obtained by the finite-element method was 13% lower than in the experiment, and that of the fiber-reinforced concrete system was 15% lower. At the same time, the discrepancy in the approaches considering torsion and not taking it into account is about 5% for all the samples studied in the work.

• Periodical: Materials Science Forum (Volume 1100)
• Pages: 167-174
• DOI: https://doi.org/10.4028/p-3OQuLx
• Online since: October 2023
• Authors: Mykola Surianinov*, Yurii Krutii, Oleksii Shyliaiev, Oleksiy Murashko, Violeta Togobytska
• Keywords: ANSYS, Bearing Capacity, Concrete, Cross-Beam System, Experiment, Fiber Concrete, Finite Element Method

References

[1] Surianinov M., Andronov V., Otrosh Y., Makovkina T. and Vasiukov S. (2020). Concrete and Fiber Concrete Impact Strength. In Materials Science Forum. Trans Tech Publications Ltd. Volume 1006 - pp.101-106.

DOI: 10.4028/www.scientific.net/msf.1006.101

[2] T. Nikiforova, O. Gukasian, N. Mahas, Choice recommendations for rational concreting technology of steel reinforced concrete structures. International Journal of Engineering and Technology(UAE), 7(3), (2018), 275–279

DOI: 10.14419/ijet.v7i3.2.14419

[3] P. Semko, S. Skliarenko, V. Semko, Concrete filled tubular elements joints investigation. International Journal of Engineering and Technology(UAE). 7(3) (2018) 494–500

DOI: 10.14419/ijet.v7i3.2.14578

[4] Y.H. Bubnov, Stroytelnaia mekhanyka [Structural mechanics], V 2-kh chastiakh, Sankt-Peterburh, (1912–1914) [in Russian].

[5] P.F. Papkovych, Stroytelnaia mekhanyka korablia (T.2) Slozhnyi yzghyb y ustoichyvost sterzhnei, Yzghyb y ustoichyvost plastyn [Ship building mechanics], [Complex bending and stability of the rods, Bending and stability of plates], L.: Sudpromhyz, (1941) [in Russian].

[6] V.A. Postnov, D.M. Rostovtsev, V.P. Suslov, & Yu.P. Kochanov, Stroytelnaia mekhanyka korablia y teoryia upruhosty. Ucheb. dlia vuzov. (T. 2). Yzghyb y ustoichyvost sterzhnei, sterzhnevykh system, plastyn y obolochek. [Structural mechanics of a ship and the theory of elasticity], [Bending and stability of rods, rod systems, plates and shells], L.: Sudostroenye (1987) [in Russian].

[7] S.V. Symeonov, Obshchaia teoryia rascheta sudovykh perekrytyi [General theory of calculation of ship overlaps], Trudy LKY. L. 26 (1959) [in Russian].

[8] S.V. Symeonov, Tekhnycheska teoryia na sъstavenyte stroytelny konstruktsyy [Technical theory on the construction of construction], Stroytelstvo, 6(7) (1959) [in Bulgarian].

[9] Kovalov, A., Otrosh, Y., Surianinov, M., Kovalevska, T. Experimental and Computer Researches of Ferroconcrete Floor Slabs at High-Temperature Influences. Trans Tech Publications Ltd. In Materials Science Forum, 2019, Vol. 968, pp.361-367.

DOI: 10.4028/www.scientific.net/msf.968.361

[10] V. Semko, M. Leshchenko, O. Cherednikova, Standardization of required level probability of no-failure operation of the building envelopes by the criterion of total thermal resistance. International Journal of Engineering and Technology(UAE). 7(3) (2018) 382–387

DOI: 10.14419/ijet.v7i3.2.14557

[11] M.Yu. Prokurov, Raschet perekrestnykh balochnykh system v avtomatyzyrovannom rezhyme [Calculation of cross beam systems in an automated mode], Vestnyk Brianskoho hosudarstvennoho tekhnycheskoho unyversyteta, 1(27) (2011) [in Russian].

[12] A.V. Turkov, V.Y., Korobko, A.A. Makarov, Eksperymentalnye yssledovanyia system perekrestnykh balok iz dereviannykh elementov na kvadratnom plane pry yzmenenyy dynamycheskykh y statycheskykh nahruzok [Experimental studies of systems of cross beams from wooden elements on a square plan with changes in dynamic and static loads], Lesn. zhurn., 5 (2017) 119–126. DOI: 10.17238/issn0536-1036.2017.5.119 [in Russian].

DOI: 10.17238/issn0536-1036.2017.5.119

[13] S.V. Bosakov, O.V. Kozunova, Raschet systemy perekrestnykh balok na vynklerovskom osnovanyy metodom peremeshchenyi s prymenenyem prykladnoho paketa "MATHEMATICA" [Calculation of a system of cross beams on a Winkler base by the displacement method using the application package "MATHEMATICА"], Brest: BrHTU, (2019) 16–22. [in Russian].

[14] Y.Y. Horodnov, A.Y. Sheyn, V.A. Monakhov, Obzor rabot po optymalnomu y ratsyonalnomu konstruyrovanyiu kompozytnykh balochnykh system [Review of works on optimal and rational design of composite beam systems], Rehyonalnaia arkhytektura y stroytelstvo, 1(46) (2021) 109–121 [in Russian].

[15] Yu.D. Zemenkova, (Eds.) Uchebnoe posobye: Metodolohycheskye osnovy nauchnykh yssledovanyi [Study guide: Methodological foundations of scientific research], Tiumen: Yzdatelstvo «Vektor Buk», (2004) [in Russian].

[16] Y.M. Hrushko, V.M. Sydorenko, Osnovy nauchnykh yssledovanyi [Fundamentals of scientific research], Kharkov: Vysshaia shkola, (1983) [in Russian].

[17] BS EN 14889-1:2006. Fibres for concrete. Steel fibres. Definitions ad specifications and conformity. BSI, (2006).

DOI: 10.3403/30110332

[18] D.V. Lazareva, M.M. Soroka, O.S. Shilyaev, Priyomi roboti z PK ANSYS pri rozvyazanni zadach mekhaniki [Techniques for working with the Ansys PC when solving mechanics problems]? Pіd redaktsіeyu M.N, Surianіnova: monografiya? Odesa: ODABA, (2020) [in Ukranian].
