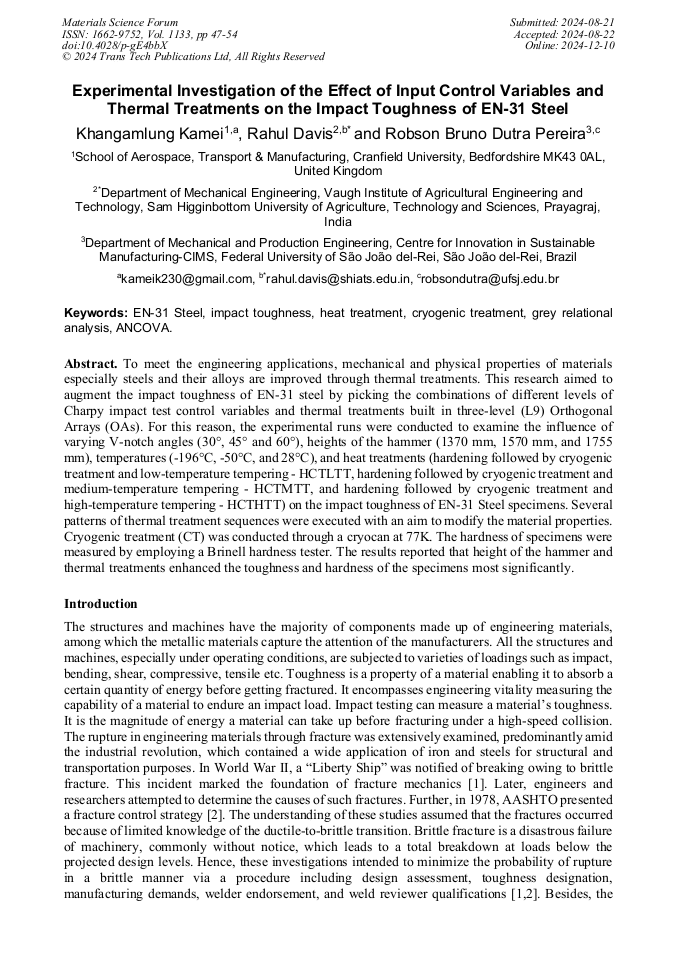

Experimental Investigation of the Effect of Input Control Variables and Thermal Treatments on the Impact Toughness of EN-31 Steel

Abstract:

To meet the engineering applications, mechanical and physical properties of materials especially steels and their alloys are improved through thermal treatments. This research aimed to augment the impact toughness of EN-31 steel by picking the combinations of different levels of Charpy impact test control variables and thermal treatments built in three-level (L9) Orthogonal Arrays (OAs). For this reason, the experimental runs were conducted to examine the influence of varying V-notch angles (30°, 45° and 60°), heights of the hammer (1370 mm, 1570 mm, and 1755 mm), temperatures (-196°C, -50°C, and 28°C), and heat treatments (hardening followed by cryogenic treatment and low-temperature tempering - HCTLTT, hardening followed by cryogenic treatment and medium-temperature tempering - HCTMTT, and hardening followed by cryogenic treatment and high-temperature tempering - HCTHTT) on the impact toughness of EN-31 Steel specimens. Several patterns of thermal treatment sequences were executed with an aim to modify the material properties. Cryogenic treatment (CT) was conducted through a cryocan at 77K. The hardness of specimens were measured by employing a Brinell hardness tester. The results reported that height of the hammer and thermal treatments enhanced the toughness and hardness of the specimens most significantly.

• Periodical: Materials Science Forum (Volume 1133)
• Pages: 47-54
• DOI: https://doi.org/10.4028/p-gE4bbX
• Online since: December 2024
• Authors: Khangamlung Kamei, Rahul Davis*, Robson Bruno Dutra Pereira
• Keywords: ANCOVA, Cryogenic Treatment, EN-31 Steel, Grey Relational Analysis, Heat Treatment, Impact Toughness

References

[1] W. Zhang: Technical Problem Identification for the Failures of the Liberty Ships, Challenges, 7, no. 2: 20. https://doi.org/10.3390/challe7020020 (2016).

[2] American Association of State Highway and Transportation Officials, Guide Specification for Fracture Critical Non-Redundant Steel Bridge Members, Washington DC, 1978.

[3] D. Senthilkumar: Deep cryogenic treatment of En 31 and En 8 steel for the development of wear resistance, Advances in Materials and Processing Technologies, DOI: 10.1080/2374068X. 2021.1878696 (2021).

DOI: 10.1080/2374068x.2021.1878696

[4] J. Vimal, A. Bensely, D.M. Lal, K. Srinivasan: Deep Cryogenic Treatment Improves Wear Resistance of En 31 Steel. Materials and Manufacturing Processes, 23(4), 369–376. doi:10.1080/10426910801938098 (2008).

DOI: 10.1080/10426910801938098

[5] L. Zhang, X. Huang, Y. Wang, Y. Guo, G. Dai, D. Li: Achieving Excellent Strength–Ductility and Impact Toughness Combination by Cyclic Quenching in Medium Mn TRIP-Aided Steel. J. Mat. Eng. and Perform 27, 5769–5777 (2018).

DOI: 10.1007/s11665-018-3662-6

[6] Singh, D., Rao, P.N., and Jayaganthan, R., Microstructures and impact toughness behavior of Al 5083 alloy processed by cryorolling and afterwards annealing. Int. J. Miner. Metall. and Mater. 2013, 20, 759–769.

DOI: 10.1007/s12613-013-0794-4

[7] F. Deirmina, S. Amirabdollahian, M. Pellizzari, A. Molinari: Effect of Different Post-Processing Thermal Treatments on the Fracture Toughness and Tempering Resistance of Additively Manufactured H13 Hot-Work Tool Steel. Metals, 14, 112, (2024).

DOI: 10.3390/met14010112

[8] H. Peng, L. Hu, X. Zhang, X. Wei, L. Li, J. Zhou: Microstructural Evolution, Behavior of Precipitates, and Mechanical Properties of Powder Metallurgical High-Speed Steel S390 During Tempering. Metall. and Mat. Trans. A., 50, 874–883 (2019).

DOI: 10.1007/s11661-018-5040-2

[9] S. S. M. Tavares, C. R. Rodrigues, C. A. S. de Oliveira, C.B. Woyames, J. Dille: Influence of Heat Treatments on Microstructure and Toughness of 9%Ni Steel. J. Mat. Eng. and Perform, 27, 1530–1536 (2018).

DOI: 10.1007/s11665-018-3257-2

[10] K. Yang, B. S. El-Haik.: Taguchi's Orthogonal Array Experiment, Chap. 13 in Design for Six Sigma: A Roadmap for Product Development. 2nd ed. New York: McGraw-Hill. https: //www.accessengineeringlibrary.com/content/book/9780071547673/chapter/chapter13 (2009).

[11] K. Kamei, A.G. William, L.S. Koveile, N. Ahmad, A. Chakravorty, R. Davis: An Experimental Study of the Effect of Thermal Treatments & Charpy Impact Test Parameters on Impact Toughness of EN-31 Steel. IOSR J. Mech. and Civil. Eng. 11, 17-22 (2014).

DOI: 10.9790/1684-11311722

[12] P. Wang, P. Meng, J.Y. Zhai, Z.Q. Zhu: A hybrid method using experiment design and grey relational analysis for multiple criteria decision making problems, Knowledge-Based Systems, Vol 53, pp.100-107 (2013).

DOI: 10.1016/j.knosys.2013.08.025

[13] R. Davis: Application of Taguchi Design of Experiment method in Optimization of Izod Impact Testing, Applied Mechanics and Materials, Trans Tech Publications, Switzerland, Volume 541-542, pp: 663-668, https://doi.org/10.4028/www.scientific.net/AMM.541-542.663 (2014)

DOI: 10.4028/www.scientific.net/amm.541-542.663
