Influence of Cockle Shell Ash and Lime on Geotechnical Properties of Expansive Clay Soil Stabilized at Optimum Silica Fume Content

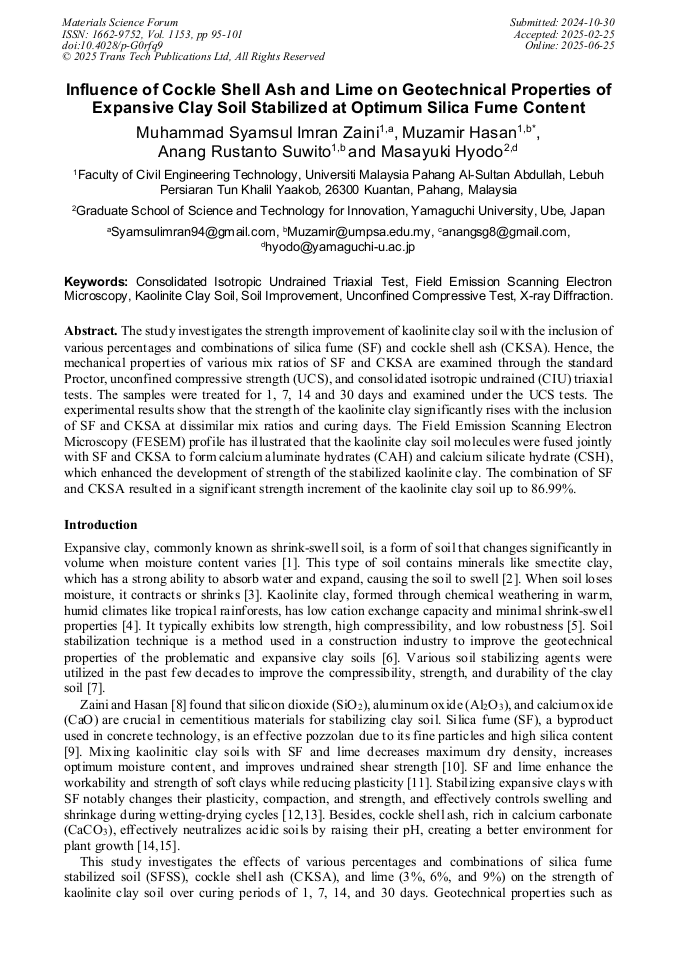

Article Preview

Abstract:

The study investigates the strength improvement of kaolinite clay soil with the inclusion of various percentages and combinations of silica fume (SF) and cockle shell ash (CKSA). Hence, the mechanical properties of various mix ratios of SF and CKSA are examined through the standard Proctor, unconfined compressive strength (UCS), and consolidated isotropic undrained (CIU) triaxial tests. The samples were treated for 1, 7, 14 and 30 days and examined under the UCS tests. The experimental results show that the strength of the kaolinite clay significantly rises with the inclusion of SF and CKSA at dissimilar mix ratios and curing days. The Field Emission Scanning Electron Microscopy (FESEM) profile has illustrated that the kaolinite clay soil molecules were fused jointly with SF and CKSA to form calcium aluminate hydrates (CAH) and calcium silicate hydrate (CSH), which enhanced the development of strength of the stabilized kaolinite clay. The combination of SF and CKSA resulted in a significant strength increment of the kaolinite clay soil up to 86.99%.

You might also be interested in these eBooks
6th Int. Conf. on Advances in Materials, Mechanical and Manufacturing & 13th Int. Conf. on Engineering and Innovative Materials (AMMM & ICEIM) View Preview
Chemical Treatment, Joining and Casting of Special and Functional Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1153)

Pages:

95-101

DOI:

https://doi.org/10.4028/p-G0rfq9

Citation:

Cite this paper

Online since:

June 2025

Authors:

Muhammad Syamsul Imran Zaini, Muzamir Hasan*, Anang Rustanto Suwito, Masayuki Hyodo

Keywords:

Consolidated Isotropic Undrained Triaxial Test, Field Emission Scanning Electron Microscopy, Kaolinite Clay Soil, Soil Improvement, Unconfined Compressive Test, X-Ray Diffraction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2025 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M.S.I. Zaini, M. Hasan, Effects of Industrial and Agricultural Recycled Waste Enhanced with Lime Utilisation in Stabilising Kaolinitic Soil, Int. J. of Sust. Cons. Eng. Technol. 14 (2023) 332-353.

Google Scholar

[2] M.S.I. Zaini, M. Hasan, L.S. Yie, K.A. Masri, R.P. Jaya, M. Hyodo, and M.J. Winter, The Effect of Utilizing Silica Fume and Eggshell Ash on the Geotechnical Properties of Soft Kaolin Clay. J. Teknol. 84 (2022) 159-170.

DOI: 10.11113/jurnalteknologi.v84.17115

Google Scholar

[3] M.S.I. Zaini, M. Hasan, and W.N.B.W. Jusoh, Utilization of bottom ash waste as a granular column to enhance the lateral load capacity of soft kaolin clay soil. Environ. Sci. Pollut. Res. (2023) 1-27.

DOI: 10.1007/s11356-023-25966-x

Google Scholar

[4] M. Hasan, M.S.I. Zaini, N.A.A. Hashim, A. Wahab, K.A. Masri, R.P. Jaya, M. Hyodo, M.J. Winter, M. Sholichin, and R. Haribowo, Stabilization of Kaolin Clay Soil Reinforced with Single Encapsulated 20mm Diameter Bottom Ash Column. in: IOP Conf. Ser. Earth Env. Sci. 930 (2021) 012099.

DOI: 10.1088/1755-1315/930/1/012099

Google Scholar

[5] M.S.I. Zaini, M. Hasan, and M.F. Zolkepli, Influence of Alstonia Angustiloba tree water uptake on slope stability: A case study at the unsaturated slope, Pahang, Malaysia. Bull. Geol. Soc. Malays. 75 (2023) 37-55.

DOI: 10.21203/rs.3.rs-2163737/v1

Google Scholar

[6] M. Hasan, M.S.I. Zaini, N.A. W. Hong, A. Wahab, K.A. Masri, R.P. Jaya, M. Hyodo, M.J. Winter, M. Sholichin, and R. Haribowo, Sustainable ground improvement method using encapsulated polypropylene (PP) column reinforcement. in: IOP Conf. Ser. Earth Env. Sci. 930 (2021) 012016.

DOI: 10.1088/1755-1315/930/1/012016

Google Scholar

[7] M.S.I. Zaini, and M. Hasan, Effectiveness of Silica Fume Eggshell Ash and Lime Use on the Properties of Kaolinitic Clay. Int. J. of Eng. Technol. Innov. 13 (2023) 337-352.

DOI: 10.46604/ijeti.2023.11936

Google Scholar

[8] M.S.I. Zaini, and M. Hasan, Effect of Optimum Utilization of Silica Fume and Lime On the Stabilization of Problematic Soils. Int. J. Integr. Eng. 15 (2023) 352-366.

DOI: 10.30880/ijie.2023.15.01.032

Google Scholar

[9] S. Almuaythir, M.S.I. Zaini, M. Hasan, and M.I. Hoque, Sustainable soil stabilization using industrial waste ash: Enhancing expansive clay properties, Heliyon. 10 (2024) e39124.

DOI: 10.1016/j.heliyon.2024.e39124

Google Scholar

[10] M.S.I. Zaini, M.F. Ishak, M.F. Zolkepli, Forensic assessment on landfills leachate through electrical resistivity imaging at Simpang Renggam in Johor, Malaysia, in: IOP Conf. Ser. Mater. Sci. Eng. 669 (2019) 012005.

DOI: 10.1088/1757-899x/669/1/012005

Google Scholar

[11] M.S.I. Zaini, M. Hasan, and S. Almuaythir, Experimental study on the use of polyoxymethylene plastic waste as a granular column to improve the strength of soft clay soil. Sci. Rep. 14 (2024) 22558.

DOI: 10.1038/s41598-024-73224-y

Google Scholar

[12] M.S.I. Zaini, M. Hasan, and K.A. Masri, Stabilization of kaolinitic soil using crushed tile column. Mag. Civ. Eng. 123 (2023) 38-53.

Google Scholar

[13] M.S.I. Zaini, and M. Hasan, Application of Electrical Resistivity Tomography in Landfill Leachate Detection Assessment. In: Anouzla, A., Souabi, S. (eds) A Review of Landfill Leachate. Springer Water. Springer, Cham.

DOI: 10.1007/978-3-031-55513-8_1

Google Scholar

[14] M.S.I. Zaini, and M. Hasan, Effect of Alstonia Angustiloba tree moisture absorption on the stabilization of unsaturated residual soil slope. Int. J. Environ. Sci. Technol. 21 (2024) 8487–8506.

DOI: 10.1007/s13762-024-05550-7

Google Scholar

[15] M.S.I. Zaini, M. Hasan, S. Almuaythir, and M. Hyodo, Experimental investigations on physico-mechanical properties of kaolinite clay soil stabilized at optimum silica fume content using clamshell ash and lime. Sci. Rep. 14 (2024) 10995.

DOI: 10.1038/s41598-024-61854-1

Google Scholar
