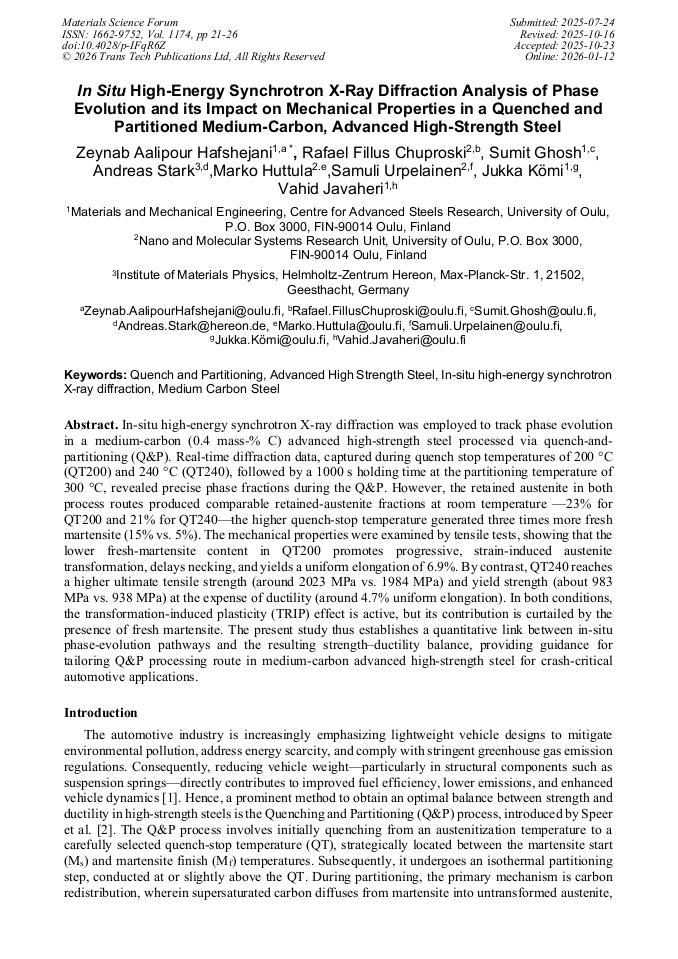

In Situ Synchrotron XRD Analysis of Phase Evolution and its Impact on Mechanical Properties in Quenched and Partitioned Medium-Carbon AHSS

Abstract:

In-situ high-energy synchrotron X-ray diffraction was employed to track phase evolution in a medium-carbon (0.4 wt.% C) advanced high-strength steel processed via quench-and-partitioning (Q&P). Real-time diffraction data, captured during quench stop temperatures of 200 °C (QT200) and 240 °C (QT240), followed by a 1000 s holding time at the partitioning temperature of 300 °C, revealed precise phase fractions during the Q&P. However, the retained austenite in both process routes produced comparable retained-austenite fractions at room temperature —23% for QT200 and 21% for QT240—the higher quench-stop temperature generated three times more fresh martensite (15% vs. 5%). The mechanical properties were examined by tensile tests, showing that the lower fresh-martensite content in QT200 promotes progressive, strain-induced austenite transformation, delays necking, and yields a uniform elongation of 6.9%. By contrast, QT240 reaches a higher ultimate tensile strength (around 2023 MPa vs. 1984 MPa) and yield strength (about 983 MPa vs. 938 MPa) at the expense of ductility (around 4.7% uniform elongation). In both conditions, the TRIP effect is active, but its contribution is curtailed by the presence of fresh martensite. The present study thus establishes a quantitative link between in-situ phase evolution pathways and the resulting strength–ductility balance, providing guidance for tailoring Q&P processing route in medium-carbon advanced high-strength steel for crash-critical automotive applications.

• Periodical: Materials Science Forum (Volume 1174)
• Pages: 21-26
• DOI: https://doi.org/10.4028/p-IFqR6Z
• Online since: January 2026
• Authors: Zeynab Aalipour Hafshejani*, Rafael Fillus Chuproski, Sumit Ghosh, Andreas Stark, Marko Huttula, Samuli Urpelainen, Jukka I. Kömi, Vahid Javaheri
• Keywords: Advanced High Strength Steel, In Situ Synchrotron Xrd, Medium Carbon Steel, Partitioning, Quench

References

[1] R. Kuziak, R. Kawalla, S. Waengler, Advanced high strength steels for automotive industry, (n.d.).

[2] J. Speer, D.K. Matlock, B.C. De Cooman, J.G. Schroth, Carbon partitioning into austenite after martensite transformation, Acta Materialia 51 (2003) 2611–2622.

DOI: 10.1016/s1359-6454(03)00059-4

[3] D.V. Edmonds, K. He, F.C. Rizzo, B.C. De Cooman, D.K. Matlock, J.G. Speer, Quenching and partitioning martensite—A novel steel heat treatment, Materials Science and Engineering: A 438–440 (2006) 25–34.

DOI: 10.1016/j.msea.2006.02.133

[4] F. HajyAkbary, J. Sietsma, G. Miyamoto, T. Furuhara, M.J. Santofimia, Interaction of carbon partitioning, carbide precipitation and bainite formation during the Q&P process in a low C steel, Acta Materialia 104 (2016) 72–83.

DOI: 10.1016/j.actamat.2015.11.032

[5] E.D. Moor, J.G. Speer, D.K. Matlock, J.-H. Kwak, S.-B. Lee, Effect of Carbon and Manganese on the Quenching and Partitioning Response of CMnSi Steels, ISIJ Int. 51 (2011) 137–144.

DOI: 10.2355/isijinternational.51.137

[6] J.G. Speer, F.C.R. Assunção, D.K. Matlock, D.V. Edmonds, The "quenching and partitioning" process: background and recent progress, Mat. Res. 8 (2005) 417–423.

DOI: 10.1590/s1516-14392005000400010

[7] Z. Dai, Z. Yang, C. Zhang, H. Chen, Incomplete carbon partitioning during quenching and partitioning of Fe–C–Mn–Si steels: Modeling and experimental validations, Acta Materialia 200 (2020) 597–607.

DOI: 10.1016/j.actamat.2020.09.045

[8] S. Allain, G. Geandier, J.-C. Hell, M. Soler, F. Danoix, M. Gouné, Effects of Q&P Processing Conditions on Austenite Carbon Enrichment Studied by In Situ High-Energy X-ray Diffraction Experiments, Metals 7 (2017) 232.

DOI: 10.3390/met7070232

[9] Y. Onuki, K. Umemura, K. Fujiwara, Y. Tanaka, T. Tomida, K. Kawano, S. Sato, Microstructure Formation and Carbon Partitioning with Austenite Decomposition during Isothermal Heating Process in Fe-Si-Mn-C Steel Monitored by In Situ Time-of-Flight Neutron Diffraction, Metals 12 (2022) 957.

DOI: 10.3390/met12060957

[10] S. Allain, G. Geandier, J.-C. Hell, M. Soler, F. Danoix, M. Gouné, Effects of Q&P Processing Conditions on Austenite Carbon Enrichment Studied by In Situ High-Energy X-ray Diffraction Experiments, Metals 7 (2017) 232.

DOI: 10.3390/met7070232

[11] S.Y.P. Allain, G. Geandier, J.C. Hell, M. Soler, F. Danoix, M. Gouné, In-situ investigation of quenching and partitioning by High Energy X-Ray Diffraction experiments, Scripta Materialia 131 (2017) 15–18.

DOI: 10.1016/j.scriptamat.2016.12.026

[12] J. Macchi, S. Gaudez, G. Geandier, J. Teixeira, S. Denis, F. Bonnet, S.Y.P. Allain, Dislocation densities in a low-carbon steel during martensite transformation determined by in situ high energy X-Ray diffraction, Materials Science and Engineering: A 800 (2021) 140249.

DOI: 10.1016/j.msea.2020.140249

[13] D. De Knijf, C. Föjer, L.A.I. Kestens, R. Petrov, Factors influencing the austenite stability during tensile testing of Quenching and Partitioning steel determined via in-situ Electron Backscatter Diffraction, Materials Science and Engineering: A 638 (2015) 219–227.

DOI: 10.1016/j.msea.2015.04.075
