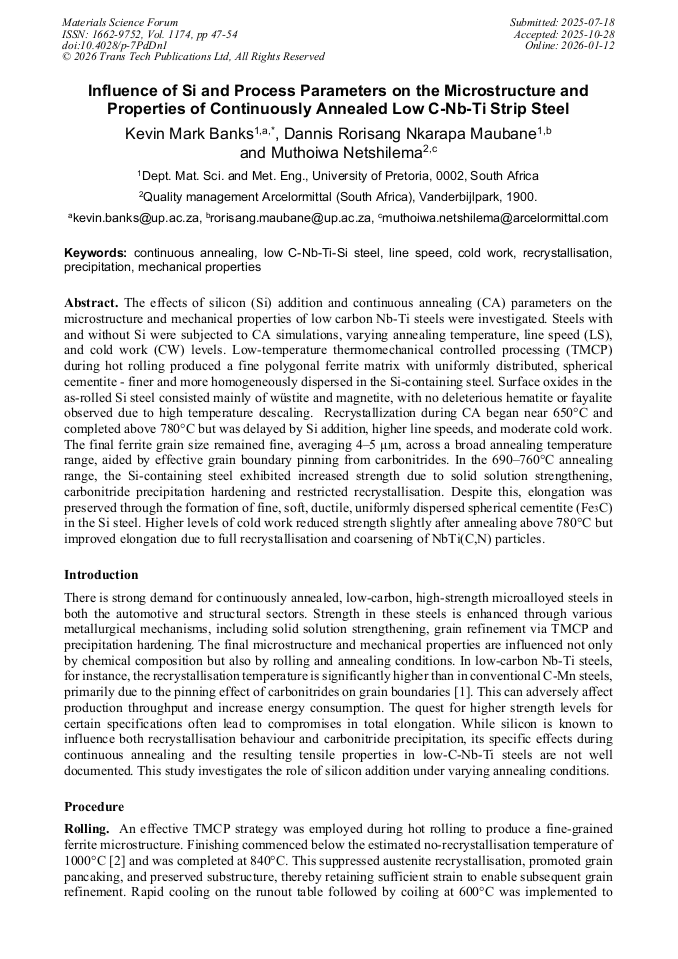

Influence of Si and Process Parameters on the Microstructure and Properties of Continuously Annealed Low C-Nb-Ti Strip Steel

Abstract:

The effects of silicon (Si) addition and continuous annealing (CA) parameters on the microstructure and mechanical properties of low carbon Nb-Ti steels were investigated. Steels with and without Si were subjected to CA simulations, varying annealing temperature, line speed (LS), and cold work (CW) levels. Low-temperature thermomechanical controlled processing (TMCP) during hot rolling produced a fine polygonal ferrite matrix with uniformly distributed, spherical cementite - finer and more homogeneously dispersed in the Si-containing steel. Surface oxides in the as-rolled Si steel consisted mainly of wüstite and magnetite, with no deleterious hematite or fayalite observed due to high temperature descaling. Recrystallization during CA began near 650°C and completed above 780°C but was delayed by Si addition, higher line speeds, and moderate cold work. The final ferrite grain size remained fine, averaging 4–5 μm, across a broad annealing temperature range, aided by effective grain boundary pinning from carbonitrides. In the 690–760°C annealing range, the Si-containing steel exhibited increased strength due to solid solution strengthening, carbonitride precipitation hardening and restricted recrystallisation. Despite this, elongation was preserved through the formation of fine, soft, ductile, uniformly dispersed spherical cementite (Fe₃C) in the Si steel. Higher levels of cold work reduced strength slightly after annealing above 780°C but improved elongation due to full recrystallisation and coarsening of NbTi (C,N) particles.

• Periodical: Materials Science Forum (Volume 1174)
• Pages: 47-54
• DOI: https://doi.org/10.4028/p-7PdDn1
• Online since: January 2026
• Authors: Kevin Mark Banks*, Dannis Rorisang Nkarapa Maubane, Muthoiwa Netshilema
• Keywords: Cold Work, Continuous Annealing, Line Speed, Low C-Nb-Ti-Si Steel, Mechanical Properties, Precipitation, Recrystallisation

References

[1] S. Zajac and R. Lagneborg, Influence of Silicon on Recrystallization and Grain Growth of Low Carbon Nb-Ti Microalloyed Steels. Met. and Mat. Trans. A, 28(4), (1997), 859-864.

[2] D.Q. Bai, S. Yue, W.P. Sun and J.J. Jonas, Effect of Deformation Parameters on the No-Recrystallization Temperature in Nb-Bearing Steels. Metall. Trans. A, 24 (1993), 2151.

DOI: 10.1007/bf02648589

[3] J-X Dong, F. Siciliano Jr., J. J. Jonas, W. J. Liu and E. Essadiqi, Effect of Silicon on the Kinetics of Nb(C, N) Precipitation during the Hot Working of Nb-bearing Steels, ISIJ Int., 40(6) (2000), 613–618.

DOI: 10.2355/isijinternational.40.613

[4] Y. K. Kim, S. M. Kim, K. S. Lee, J. J. Pak, and D. H. Shin, Effect of Repetitive Equal Channel Angular Pressing on Microstructural Stability of Low Carbon Steel, Met. Mater. Int. 7, (2001), 437.

DOI: 10.1007/bf03027084

[5] H. Okada, T. Fukagawa, H. Ishihara. A. Okamoto, M. Azuma and Y. Matsuda, Prevention of Red Scale Formation during Hot Rolling of Steels, ISIJ Int., 35(7), (1995), 886-891.

DOI: 10.2355/isijinternational.35.886

[6] A.S. Tuling, ArcelorMittal (SA) Internal Report (2015).

[7] Z. Mao, A. R. Farkoosh, D. N. Seidman, Effects of alloying elements on carbon diffusion in the austenite (f.c.c.)- and ferrite (b.c.c.)-phases, https://arxiv.org/pdf/2405.18736

DOI: 10.2139/ssrn.4819768

[8] F.Z. Bu, X.M. Wang, L. Chen, S.W. Yang, C.J. Shang and R.D.K. Misra, Influence of cooling rate on the precipitation behavior in Ti–Nb–Mo microalloyed steels during continuous cooling and relationship to strength, Materials Characterization, 102, April (2015), 146-155.

DOI: 10.1016/j.matchar.2015.03.005

[9] G. Krauss, Steels: Processing, Structure, and Performance, ASM International (2005).

[10] M. Ghosh et al, Influence of Silicon on Mechanical Properties and Microstructure of Low-Carbon Ferrite-Pearlite Steels. Mat. Sci. and Eng. A, 607, (2014). 327-334.

[11] S. Hwang, Y. Bai, S. Gao, M-H Park, A. Shibata and N.Tsuji, Mechanism of simultaneous increase of strength and ductility with grain refinement in Si-added high-Mn austenitic steel. Mat. Sci. Eng. A, 894, (2024), 146193.

DOI: 10.1016/j.msea.2024.146193

[12] Y. S. Choi, I. M. Park, J. H. Kim, K. M. Cho and D. L. Lee, Effect of Si on the Thermo-Mechanical Deformation and Spheroidization of Medium Carbon Steels. Metals and Materials International, 11(4) (2005), 327~332.

DOI: 10.1007/bf03027337

[13] H Abe, T Suzuki and J.J. Lavigne, Dissociation and dissolution of cementite in low-carbon steel by cold rolling and annealing. Trans. ISIJ. 21, (1981), 333-337.

DOI: 10.2355/isijinternational1966.21.332
