Mechanical and Thermal Properties of Harmonic Structure Composites with Ti-Ni Alloy and Copper

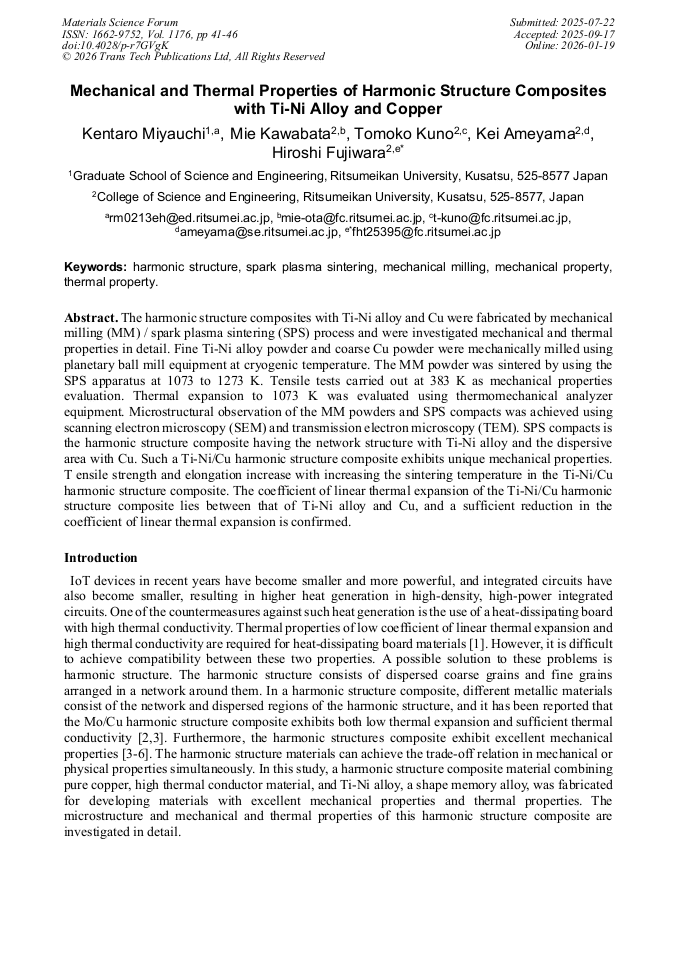

Article Preview

Abstract:

The harmonic structure composites with Ti-Ni alloy and Cu were fabricated by mechanical milling (MM) / spark plasma sintering (SPS) process and were investigated mechanical and thermal properties in detail. Fine Ti-Ni alloy powder and coarse Cu powder were mechanically milled using planetary ball mill equipment at cryogenic temperature. The MM powder was sintered by using the SPS apparatus at 1073 to 1273 K. Tensile tests carried out at 383 K as mechanical properties evaluation. Thermal expansion to 1073 K was evaluated using thermomechanical analyzer equipment. Microstructural observation of the MM powders and SPS compacts was achieved using scanning electron microscopy (SEM) and transmission electron microscopy (TEM). SPS compacts is the harmonic structure composite having the network structure with Ti-Ni alloy and the dispersive area with Cu. Such a Ti-Ni/Cu harmonic structure composite exhibits unique mechanical properties. T ensile strength and elongation increase with increasing the sintering temperature in the Ti-Ni/Cu harmonic structure composite. The coefficient of linear thermal expansion of the Ti-Ni/Cu harmonic structure composite lies between that of Ti-Ni alloy and Cu, and a sufficient reduction in the coefficient of linear thermal expansion is confirmed.

You might also be interested in these eBooks
Polymers, Composites and Ceramic Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1176)

Pages:

41-46

DOI:

https://doi.org/10.4028/p-r7GVgK

Citation:

Cite this paper

Online since:

January 2026

Authors:

Kentaro Miyauchi*, Mie Kawabata, Tomoko Kuno, Kei Ameyama, Hiroshi Fujiwara

Keywords:

Harmonic Structure, Mechanical Milling, Mechanical Property, Spark Plasma Sintering, Thermal Property

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. Jin, H. Mavoori, JOM 50 (1998) 70-72.

Google Scholar

[2] H. Fujiwara, K. Sone, F. Ueguchi, H. Miyamoto, J. Jpn. Soc. Powder Powder Metal. 65 (2018) 465-469.

DOI: 10.2497/jjspm.65.465

Google Scholar

[3] H. Fujiwara, Mater. Sci. Forum 1016 (2021) 113-118.

Google Scholar

[4] H. Fujiwara, T. Kawabata, H. Miyamoto, K. Ameyama, Mater. Trans. 54 (2013) 1619-1623.

Google Scholar

[5] A. Koiso, T. Kuno, M. Kawabata, K. Ameyama, H. Fujiwara, Mater. Sci. Forum 1107 (2023) 55-59.

Google Scholar

[6] K. Ameyama, F. Cazes, H. Couque, G. Dirras, S. Kikuchi, J. Li, F. Mompiou, K. Mondal, D. Orlov, B. Sharma, D. Tingaud, S. K. Vajpai, Mater. Res. Let. 10(2022), 440-471.

DOI: 10.1080/21663831.2022.2057203

Google Scholar

[7] P.L. Potapov, A.V. Shelyakov, D. Schryvers, Scripta Mater. 44 (2001) 1-7.

Google Scholar

[8] C. D. Cirstea, V. Cirstea, V. Marinescu, D. Patroi, T. V. Tiganescu, Rom. J. Phys 68 (2023) 615.

Google Scholar

[9] H. Fujiwara, R. Akada, A. Noro, Y. Yoshita and K. Ameyama, Mater. Trans. 49 (2008) 90-96.

DOI: 10.2320/matertrans.me200703

Google Scholar

[10] J. F. Li, Z.Q. Zheng, X.W. Li, Z.W. Peng, Mater. Des. 30 (2009) 314-318.

Google Scholar
