Investigation of Degradation Behavior of Adhesion between Sealing Resin and Copper by Aging Treatment

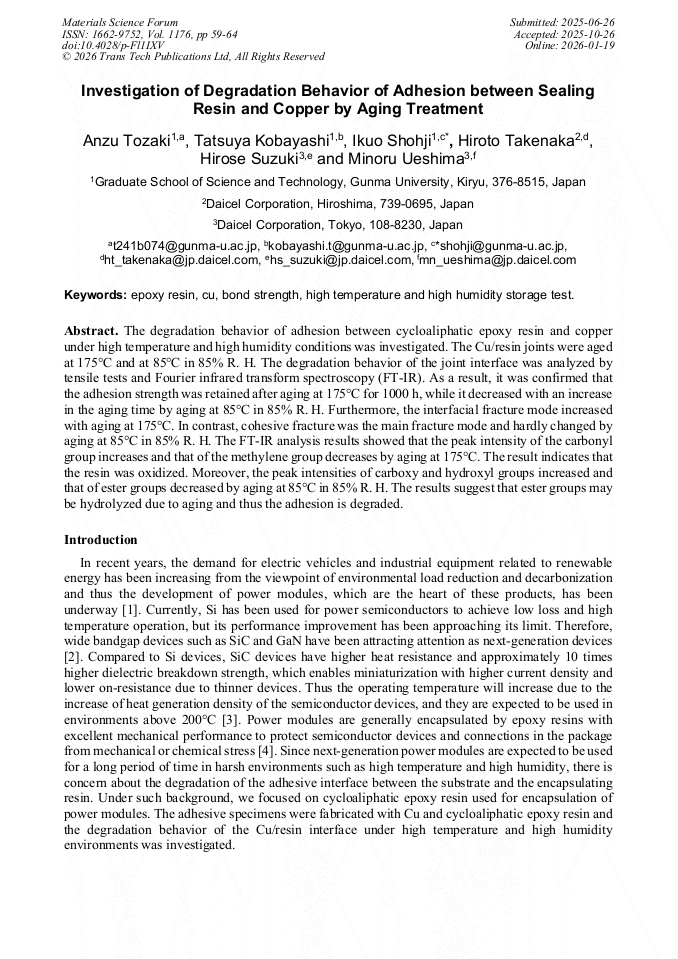

Article Preview

Abstract:

The degradation behavior of adhesion between cycloaliphatic epoxy resin and copper under high temperature and high humidity conditions was investigated. The Cu/resin joints were aged at 175°C and at 85°C in 85% R. H. The degradation behavior of the joint interface was analyzed by tensile tests and Fourier infrared transform spectroscopy (FT-IR). As a result, it was confirmed that the adhesion strength was retained after aging at 175°C for 1000 h, while it decreased with an increase in the aging time by aging at 85°C in 85% R. H. Furthermore, the interfacial fracture mode increased with aging at 175°C. In contrast, cohesive fracture was the main fracture mode and hardly changed by aging at 85°C in 85% R. H. The FT-IR analysis results showed that the peak intensity of the carbonyl group increases and that of the methylene group decreases by aging at 175°C. The result indicates that the resin was oxidized. Moreover, the peak intensities of carboxy and hydroxyl groups increased and that of ester groups decreased by aging at 85°C in 85% R. H. The results suggest that ester groups may be hydrolyzed due to aging and thus the adhesion is degraded.

You might also be interested in these eBooks
Polymers, Composites and Ceramic Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1176)

Pages:

59-64

DOI:

https://doi.org/10.4028/p-Fl1IXV

Citation:

Cite this paper

Online since:

January 2026

Authors:

Anzu Tozaki*, Tatsuya Kobayashi, Ikuo Shohji, Hiroto Takenaka, Hirose Suzuki, Minoru Ueshima

Keywords:

Bond Strength, Cu, Epoxy Resin, High Humidity Storage Test, High Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. Zhao, C. Chen, M. Haga, M. Ueshima, H. Suzuki, H. Takenaka, H. Hirahara, J. Sang, K. Suganuma, Influence of interfacial interaction on the reliability of the bond between encapsulation epoxy and copper substrate, Microelectronics Reliability 149 (2023) 115211.

DOI: 10.1016/j.microrel.2023.115211

Google Scholar

[2] T. Ikeda, Reliability of jointed interfaces in power modules, Journal of Smart Processing 9 (2020) 272-279.

Google Scholar

[3] H. Hozoji, F. Kato, S. Tanaka, J. Shinkai, H. Sato, Technology for improving heat resistance reliability of power modules, Journal of Smart Processing 9 (2020) 264-271.

DOI: 10.7791/jspmee.9.264

Google Scholar

[4] H. Hozoji, Encapsulation materials for power devices, Journal of The Japan Institute of Electronics Packaging 15 (2012) 374-378.

DOI: 10.5104/jiep.15.374

Google Scholar

[5] Y. Tonozuka, T. Kobayashi, I. Shohji, H. Hokazono, K. Takahashi, T. Ezure, Evaluation of deterioration life of interface of copper and epoxy resin under high temperature and high humidity conditions, Journal of Smart Processing 7 (2018) 128-134.

DOI: 10.7791/jspmee.7.128

Google Scholar

[6] R. Suzuki, I. Shohji, T. Kobayashi, Y. Tonozuka, Effect of temperature and humidity on degradation behavior of Cu/epoxy interface under high temperature and high humidity aging, Materials Science Forum 1016 (2021) 1436-1442.

DOI: 10.4028/www.scientific.net/msf.1016.1436

Google Scholar

[7] Y. Tonozuka, I. Shohji, S. Koyama, H. Hokazono, Degradation behaviors of adhesion strength between epoxy resin and copper under aging at high temperature, Procedia Engineering 184 (2017) 648-654.

DOI: 10.1016/j.proeng.2017.04.132

Google Scholar

[8] A. Imai, Degradation mechanism of polymeric materials, Journal of the Japan Society of Colour Material 92 (2019) 136-141.

Google Scholar

[9] Y. C. Lin, Xu Chen, H. J. Zhang, Z. P. Wang, Effects of hygrothermal aging on epoxy-based anisotropic conductive film, Materials Letters 60 (2006) 2958-2963.

DOI: 10.1016/j.matlet.2006.02.024

Google Scholar
