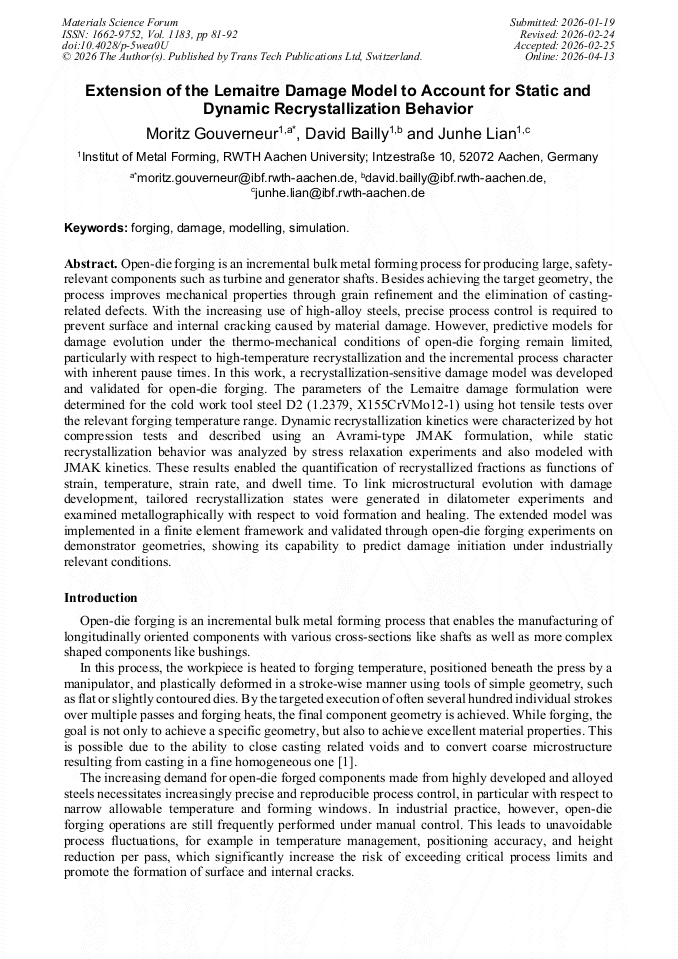

Extension of the Lemaitre Damage Model to Account for Static and Dynamic Recrystallization Behavior

Abstract:

Open-die forging is an incremental bulk metal forming process for producing large, safety-relevant components such as turbine and generator shafts. Besides achieving the target geometry, the process improves mechanical properties through grain refinement and the elimination of casting-related defects. With the increasing use of high-alloy steels, precise process control is required to prevent surface and internal cracking caused by material damage. However, predictive models for damage evolution under the thermo-mechanical conditions of open-die forging remain limited, particularly with respect to high-temperature recrystallization and the incremental process character with inherent pause times. In this work, a recrystallization-sensitive damage model was developed and validated for open-die forging. The parameters of the Lemaitre damage formulation were determined for the cold work tool steel D2 (1.2379, X155CrVMo12-1) using hot tensile tests over the relevant forging temperature range. Dynamic recrystallization kinetics were characterized by hot compression tests and described using an Avrami-type JMAK formulation, while static recrystallization behavior was analyzed by stress relaxation experiments and also modeled with JMAK kinetics. These results enabled the quantification of recrystallized fractions as functions of strain, temperature, strain rate, and dwell time. To link microstructural evolution with damage development, tailored recrystallization states were generated in dilatometer experiments and examined metallographically with respect to void formation and healing. The extended model was implemented in a finite element framework and validated through open-die forging experiments on demonstrator geometries, showing its capability to predict damage initiation under industrially relevant conditions.

• Periodical: Materials Science Forum (Volume 1183)
• Pages: 81-92
• DOI: https://doi.org/10.4028/p-5wea0U
• Online since: April 2026
• Authors: Moritz Gouverneur*, David Bailly, Junhe Lian
• Keywords: Damage, Forging, Modeling, Simulation

References

[1] H. Zhang, H. Tu, C. Yuan, Y. Li, X. Chen, H. Wang, Predicting forging defects using FEM: a brief review, Int J Adv Manuf Technol 141 (2025) 1143–1157.

DOI: 10.1007/s00170-025-16697-z

[2] W.A. Knight, Simplified early cost estimating for hot-forged parts, Int J Adv Manuf Technol 7 (1992) 159–167.

DOI: 10.1007/bf02601619

[3] L. Niu, Q. Zhang, Y. Zhang, J. Wang, W. Luo, D. Liu, T. Ma, X. Velay, Study on Near-Net Shape Forging of Large Marine Crank Throws, Metals 15 (2025) 14.

DOI: 10.3390/met15010014

[4] D. Marini, J.R. Corney, Process selection methodology for near net shape manufacturing, Int J Adv Manuf Technol 106 (2020) 1967–1987.

DOI: 10.1007/s00170-019-04561-w

[5] P. Brozzo, B. Deluca, R. Rendina, A new method for the prediction of formability limits in metal sheets, Proceedings of the 7th Biennial Conference (1972).

[6] P.-O. Bouchard, L. Bourgeon, S. Fayolle, K. Mocellin, An enhanced Lemaitre model formulation for materials processing damage computation, Int J Mater Form 4 (2011) 299–315.

DOI: 10.1007/s12289-010-0996-5

[7] M. Bambach, M. Imran, Extended Gurson–Tvergaard–Needleman model for damage modeling and control in hot forming, CIRP Annals 68 (2019) 249–252.

DOI: 10.1016/j.cirp.2019.04.063

[8] J. Lemaitre, How to use damage mechanics, Nuclear Engineering and Design 80 (1984) 233–245.

DOI: 10.1016/0029-5493(84)90169-9

[9] G. Rüf, C. Sommitsch, B. Buchmayr, On the interaction of ductile damage and materials softening of a Ni-base alloy during hot deformation, International Journal of Materials Research 98 (2007) 1146–1155.

DOI: 10.3139/146.101566

[10] X. Li, C. Liebsch, G. Hirt, J. Lohmar, Modelling of void healing in hot rolling due to recrystallization, Prod. Eng. Res. Devel. 14 (2020) 43–52.

DOI: 10.1007/s11740-019-00938-8

[11] A.E. Tekkaya, P.-O. Bouchard, S. Bruschi, C.C. Tasan, Damage in metal forming, CIRP Annals 69 (2020) 600–623.

DOI: 10.1016/j.cirp.2020.05.005

[12] A.K. Ghosh, A Criterion for ductile fracture in sheets under biaxial loading, Metall Trans A 7 (1976) 523–533.

DOI: 10.1007/bf02643968

[13] D. Zhao, J. Bandstra, H. Kuhn, A New Fracture Criterion for Fracture Prediction in Metalworking Processes, Concurrent engineering approach to materials processing (1992) 107–119.

[14] P. Christiansen, C.V. Nielsen, P.A. Martins, N. Bay, Predicting the onset of cracks in bulk metal forming by ductile damage criteria, Procedia Engineering 207 (2017) 2048–2053.

DOI: 10.1016/j.proeng.2017.10.1106

[15] M. Kukuryk, Analysis of the coupling thermo-mechanical and crack model for the FEM simulation of the multi-stage forging process of die steel, Author(s) (2019), p.20034.

DOI: 10.1063/1.5091895

[16] X. Shang, Z. Cui, M.W. Fu, A ductile fracture model considering stress state and Zener–Hollomon parameter for hot deformation of metallic materials, International Journal of Mechanical Sciences 144 (2018) 800–812.

DOI: 10.1016/j.ijmecsci.2018.06.030

[17] P.F. Gao, J. Guo, M. Zhan, Z.N. Lei, M.W. Fu, Microstructure and damage based constitutive modelling of hot deformation of titanium alloys, Journal of Alloys and Compounds 831 (2020) 154851.

DOI: 10.1016/j.jallcom.2020.154851

[18] J. Lemaitre, A Course on Damage Mechanics, Springer Berlin / Heidelberg, Berlin, Heidelberg (1996).

[19] J. Humphreys, G.S. Rohrer, and A. Rollett, Recrystallization and Related Annealing Phenomena, Elsevier Science, London (2014).

[20] M. Sun, L. Hao, S. Li, D. Li, Y. Li, Modeling flow stress constitutive behavior of SA508-3 steel for nuclear reactor pressure vessels, Journal of Nuclear Materials 418 (2011) 269–280.

DOI: 10.1016/j.jnucmat.2011.07.011

[21] H. Brüggemann, S. Sasaki, M. Röder, T. Katsumura, D. Bailly, Characterization and Modelling of Microstructure Evolution and Flow Stress of Single-Phase Austenite and Ferrite Phases in Duplex Stainless Steels, Metals 15 (2025) 130.

DOI: 10.3390/met15020130

[22] L.P. Karjalainen, Stress relaxation method for investigation of softening kinetics in hot deformed steels, Materials Science and Technology 11 (1995) 557–565.

DOI: 10.1179/mst.1995.11.6.557

[23] G. Gottstein, Physical Foundations of Materials Science, Springer Berlin Heidelberg, Berlin, Heidelberg (2004).

[24] R.K. Abu Al-Rub, G.Z. Voyiadjis, On the coupling of anisotropic damage and plasticity models for ductile materials, International Journal of Solids and Structures 40 (2003) 2611–2643.

DOI: 10.1016/s0020-7683(03)00109-4

[25] A. Heiser, J. Gerlach, D. Bailly, G. Hirt, Investigation of the Influence of Static Recrystallization on Void Evolution After Hot Compression Forming, in: T. Bauernhansl, A. Verl, M. Liewald, and H.-C. Möhring, (Eds.), Production at the Leading Edge of Technology, Springer Nature Switzerland, Cham (2024), p.335–344.

DOI: 10.1007/978-3-031-47394-4_33

[26] DIN EN ISO 6892-1:2020-06, Metallic materials - Tensile testing - Part 1: Method of test at room temperature (ISO 6892-1:2019); German version EN ISO 6892-1:2019.

DOI: 10.31030/3132591

[27] DIN EN 10228-4:2016-10, Non-destructive testing of steel forgings - Part 4: Ultrasonic testing of austenitic and austenitic-ferritic stainless steel forgings; German version EN 10228-4:2016.

DOI: 10.3403/30270663

[28] M. Spittel, T. Spittel, Steel symbol/number: X165CrMoV12/1.2601, in: W. Martienssen and H. Warlimont, (Eds.), Metal Forming Data of Ferrous Alloys - deformation behaviour, Springer Berlin Heidelberg, Berlin, Heidelberg (2009), p.480–485.

DOI: 10.1007/978-3-540-44760-3_71
