A Novel Modified SLAB Method Approach for Efficient Energy Assessment in Ring Rolling Showing Fishtail Effect

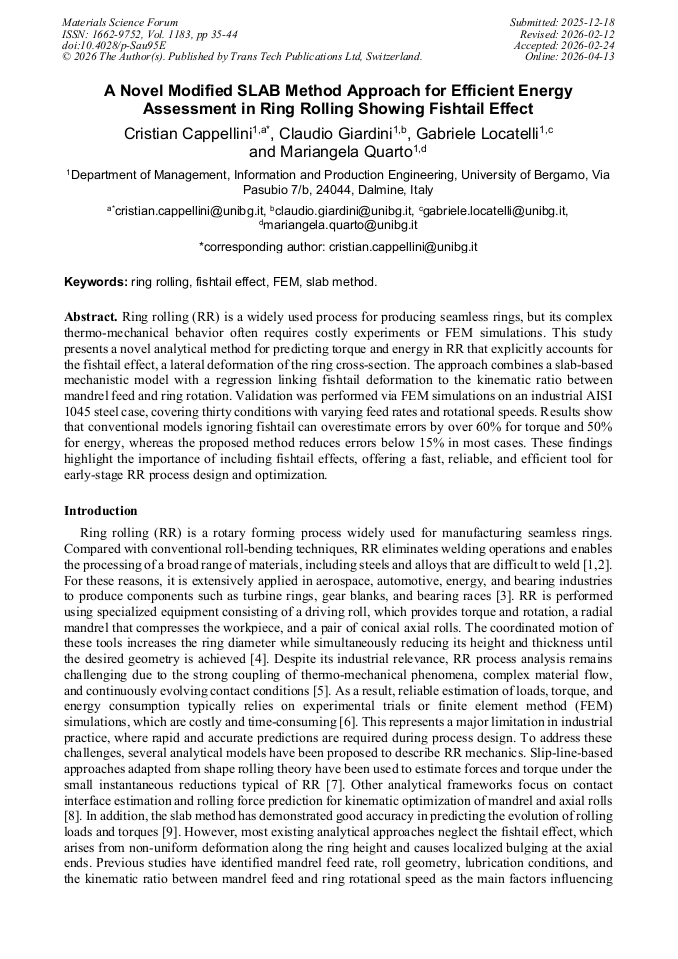

Article Preview
View Pdf By email

Abstract:

Ring rolling (RR) is a widely used process for producing seamless rings, but its complex thermo-mechanical behavior often requires costly experiments or FEM simulations. This study presents a novel analytical method for predicting torque and energy in RR that explicitly accounts for the fishtail effect, a lateral deformation of the ring cross-section. The approach combines a slab-based mechanistic model with a regression linking fishtail deformation to the kinematic ratio between mandrel feed and ring rotation. Validation was performed via FEM simulations on an industrial AISI 1045 steel case, covering thirty conditions with varying feed rates and rotational speeds. Results show that conventional models ignoring fishtail can overestimate errors by over 60% for torque and 50% for energy, whereas the proposed method reduces errors below 15% in most cases. These findings highlight the importance of including fishtail effects, offering a fast, reliable, and efficient tool for early-stage RR process design and optimization.

You have full access to the following eBook
Forging and Rolling Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1183)

Pages:

35-44

DOI:

https://doi.org/10.4028/p-Sau95E

Citation:

Cite this paper

Online since:

April 2026

Authors:

Cristian Cappellini*, Claudio Giardini, Gabriele Locatelli, Mariangela Quarto

Keywords:

FEM, Fishtail Effect, Ring Rolling, Slab Method

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] H. He, Y. Yi, S. Huang, Y. Zhang, An improved process for grain refinement of large 2219 Al alloy rings and its influence on mechanical properties, J. Mater. Sci. Technol. 35 (2019) 55–63.

DOI: 10.1016/j.jmst.2018.09.007

Google Scholar

[2] J.T. Yeom, J.H. Kim, N.K. Park, S.S. Choi, C.S. Lee, Ring-rolling design for a large-scale ring product of Ti–6Al–4V alloy, J. Mater. Process. Technol. 187–188 (2007) 747–751.

DOI: 10.1016/j.jmatprotec.2006.11.042

Google Scholar

[3] J.B. Hawkyard, W. Johnson, J. Kirkland, E. Appleton, Analyses for roll force and torque in ring rolling, with some supporting experiments, Int. J. Mech. Sci. 15 (1973) 873–893.

DOI: 10.1016/0020-7403(73)90018-0

Google Scholar

[4] G. Allegri, L. Giorleo, E. Ceretti, C. Giardini, Driver roll speed influence in Ring Rolling process, Procedia Eng. 207 (2017) 1230–1235.

DOI: 10.1016/j.proeng.2017.10.875

Google Scholar

[5] C. Cappellini, C. Giardini, S. Bocchi, A multi-objective optimization workflow of ring-rolling process parameters based on production energy and time, Procedia CIRP 122 (2024) 683–688.

DOI: 10.1016/j.procir.2024.01.095

Google Scholar

[6] N. Kim, S. Machida, S. Kobayashi, Ring rolling process simulation by the three dimensional finite element method, Int. J. Mach. Tools Manuf. 30 (1990) 569–577.

DOI: 10.1016/0890-6955(90)90008-7

Google Scholar

[7] L. Quagliato, G.A. Berti, D. Kim, N. Kim, Slip line model for forces estimation in the radial-axial ring rolling process, Int. J. Mech. Sci. 138–139 (2018) 17–33.

DOI: 10.1016/j.ijmecsci.2018.01.025

Google Scholar

[8] D. Xie, Y. Wang, Q. Ouyang, L. He, W. Xu, Analytical calculation model for radial-axial coordinated feed strategy in large-scale flat ring rolling based on ultimate bending moment, J. Mater. Process. Technol. 319 (2023) 118072.

DOI: 10.1016/j.jmatprotec.2023.118072

Google Scholar

[9] W. Johnson, G. Needham, Experiments on ring rolling, Int. J. Mech. Sci. 10 (1968) 95–113.

Google Scholar

[10] H. Zayadi, A. Parvizi, H.R. Farahmand, D. Rahmatabadi, Investigation of Ring Rolling Key Parameters for Decreasing Geometrical Ring Defects by 3D Finite Element and Experiments, Arab. J. Sci. Eng. 46 (2021) 12105–12115.

DOI: 10.1007/s13369-021-05849-4

Google Scholar

[11] C. Cappellini, L. Giorleo, Ring rolling with flat dies: An analytical method to optimize geometry, time or energy, J. Mech. Sci. Technol. 38 (2024) 5543–5558.

DOI: 10.1007/s12206-024-0926-y

Google Scholar

[12] C.F. Lugora, A.N. Bramley, Analysis of spread in ring rolling, Int. J. Mech. Sci. 29 (1987) 149–157.

Google Scholar

[13] W. Johnson, P.B. Mellor, Engineering plasticity, E. Horwood; New York: Halsted Press, Chichester, West Sussex, England, 1983.

Google Scholar

[14] S. Kobayashi, Metal Forming and the Finite-Element Method, Oxford University Press, Incorporated, New York, 1989.

Google Scholar

[15] M. Murugesan, D. Jung, Johnson Cook Material and Failure Model Parameters Estimation of AISI-1045 Medium Carbon Steel for Metal Forming Applications, Materials 12 (2019) 609.

DOI: 10.3390/ma12040609

Google Scholar
