Microstructure Modification of Hot Formed Shafts through Customised Spray Cooling from the Forming Heat

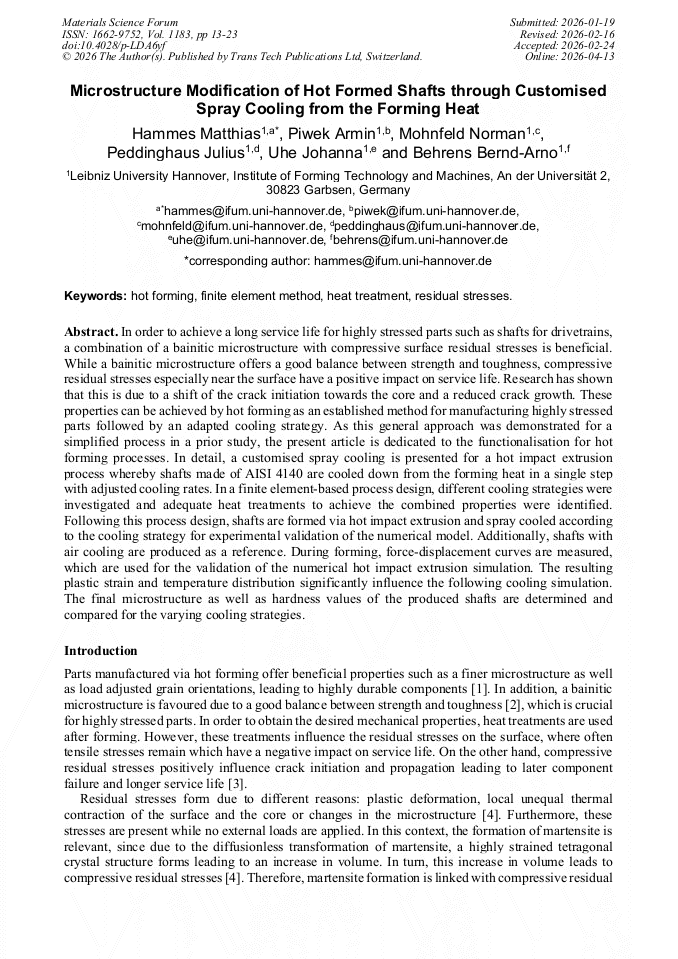

Article Preview
View Pdf By email

Abstract:

In order to achieve a long service life for highly stressed parts such as shafts for drivetrains, a combination of a bainitic microstructure with compressive surface residual stresses is beneficial. While a bainitic microstructure offers a good balance between strength and toughness, compressive residual stresses especially near the surface have a positive impact on service life. Research has shown that this is due to a shift of the crack initiation towards the core and a reduced crack growth . These properties can be achieved by hot forming as an established method for manufacturing highly stressed parts followed by an adapted cooling strategy. As this general approach was demonstrated for a simplified process in a prior study , the present article is dedicated to the functionalisation for hot forming processes. In detail, a customised spray cooling is presented for a hot impact extrusion process whereby shafts made of AISI 4140 are cooled down from the forming heat in a single step with adjusted cooling rates. In a finite element-based process design, different cooling strategies were investigated and adequate heat treatments to achieve the combined properties were identified. Following this process design, shafts are formed via hot impact extrusion and spray cooled according to the cooling strategy for experimental validation of the numerical model. Additionally, shafts with air cooling are produced as a reference. During forming, force-displacement curves are measured, which are used for the validation of the numerical hot impact extrusion simulation. The resulting plastic strain and temperature distribution significantly influence the following cooling simulation. The final microstructure as well as hardness values of the produced shafts are determined and compared for the varying cooling strategies.

You have full access to the following eBook
Forging and Rolling Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1183)

Pages:

13-23

DOI:

https://doi.org/10.4028/p-LDA6yf

Citation:

Cite this paper

Online since:

April 2026

Authors:

Matthias Hammes*, Armin Piwek, Norman Mohnfeld, Julius Peddinghaus, Johanna Uhe, Bernd Arno Behrens

Keywords:

Finite Element Method, Heat Treatment, Hot Forming, Residual Stress

Funder:

The publication of this article was funded by the Leibniz Universität Hannover (LUH) / Technische Informationsbibliothek (TIB)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. A. Suris, C. C. Yurgel, R. Alves de Sousa, Influence of the Grain-Flow Orientation after Hot Forging Process Evaluated through Rotational Flexing Fatigue Test, Metals 13-2 (2023) 187.

DOI: 10.3390/met13020187

Google Scholar

[2] H. K. D. H. Bhadeshia, Bainite in steels: Theory and practice, third ed., Maney Publishing, Leeds/London, 2015.

Google Scholar

[3] A. Wildeis, H.-J. Christ, R. Brandt, Influence of Residual Stresses on the Crack Initiation and Short Crack Propagation in a Martensitic Spring Steel, Metals 12-7 (2022) 1085.

DOI: 10.3390/met12071085

Google Scholar

[4] K. Palaniradja, N. Alagumurthi, V. Soundararajan, Residual Stresses in Case Hardened Materials, The Open Materials Science Journal 4-1 (2010) 92–102.

DOI: 10.2174/1874088X010040300092

Google Scholar

[5] N. Saunders, U. K. Z. Guo, X. Li, A. P. Miodownik, J.-P. Schillé, Using JMatPro to model materials properties and behavior, Journal of the Minerals, Metals & Materials Society 55-12 (2003) 60–65.

DOI: 10.1007/s11837-003-0013-2

Google Scholar

[6] T. Gretzki, C. Krause, I. Frolov, T. Hassel, M. Nicolaus, F.-W. Bach, M. Kästner, O. Abo-Namous, E. Reithmeier, Manufacturing Surface Hardened Components of 42CrMo4 by Water-Air Spray Cooling, Steel Research Int. 80-12 (2009) 906–915.

Google Scholar

[7] D. Rodman, C. Krause, F. Nürnberger, F.-W. Bach, K. Haskamp, M. Kästner, E. Reithmeier, Induction Hardening of Spur Gearwheels Made from 42CrMo4 Hardening and Tempering Steel by Employing Spray Cooling, Steel Research Int. 82-4 (2011) 329–336.

DOI: 10.1002/srin.201000218

Google Scholar

[8] H. S. Hasan, M. J. Peet, J. M. Jalil, H. K. D. H. Bhadeshia, Heat transfer coefficients during quenching of steels, Heat Mass Transfer 47-3 (2011) 315–321.

DOI: 10.1007/s00231-010-0721-4

Google Scholar

[9] B.-A. Behrens, K. Brunotte, H. Wester, C. Kock, Targeted adjustment of residual stresses in hot-formed components by means of process design based on finite element simulation, Arch. Appl. Mech. 91-8 (2021) 3579–3602.

DOI: 10.1007/s00419-021-01928-y

Google Scholar

[10] I. Serebriakov, E. S. Puchi-Cabrera, L. Dubar, P. Moreau, D. Meresse, J. G. La Barbera-Sosa, Friction analysis during deformation of steels under hot-working conditions, Tribology International 158 (2021) 106928.

DOI: 10.1016/j.triboint.2021.106928

Google Scholar

[11] D. Jeong, D. Kim, J. Kim, B. Kim, T. Dean, Effects of surface treatments and lubricants for warm forging die life, Journal of Materials Processing Technology 113-1-3 (2001) 544–550.

DOI: 10.1016/S0924-0136(01)00693-8

Google Scholar

[12] P. R. Burte, Y.-T. Im, T. Altan, S. L. Semiatin, Measurement and Analysis of Heat Transfer and Friction During Hot Forging, Journal of Engineering for Industry 112-4 (1990) 332–339, 1990.

DOI: 10.1115/1.2899596

Google Scholar

[13] B.-A. Behrens, J. Schröder, H. Wester, D. Brands, S. Uebing, C. Kock, Experimental and Numerical Investigations on the Development and Stability of Residual Stresses Arising from Hot Forming Processes, in: G. Daehn, J. Cao, B. Kinsey, E. Tekkaya, A. Vivek, and Y. Yoshida (Eds.), Forming the Future (The Minerals, Metals & Materials Series), Springer International Publishing, Cham, 2021, p.2289–2301.

DOI: 10.1007/978-3-030-75381-8_192

Google Scholar

[14] B.-A. Behrens, A. Chugreev, C. Kock, Macroscopic FE-Simulation of residual stresses in thermo-mechanically processed steels considering phase transformation effects, in: E. Oñate, D.R.J. Owen, D. Peric M. Chiumenti, and E. de Souza Neto, (Eds.), XIV International Conference on Computational Plasticity: Fundamentals and Applications (COMPLAS 2019), Barcelona, 2019.

Google Scholar

[15] B.-A. Behrens, J. Schröder, D. Brands, L. Scheunemann, R. Niekamp, A. Chugreev, M. Sarhil, S. Uebing, C. Kock, Experimental and Numerical Investigations of the Development of Residual Stresses in Thermo-Mechanically Processed Cr-Alloyed Steel 1.3505, Metals 9-4 (2019) 480.

DOI: 10.3390/met9040480

Google Scholar

[16] Z. Keran, M. Math, P. Piljek, FEM Analyses of Friction Coefficient in Open Die Coining Process of Different Grain Sizes, Journal Material Sci. & Eng. 1-1 (2012) 5.

DOI: 10.4172/2169-0022.1000105

Google Scholar

[17] M. Alibeyki, H. Mirzadeh, M. Najafi, A. Kalhor, Modification of Rule of Mixtures for Estimation of the Mechanical Properties of Dual-Phase Steels, Journal of Material Eng. and Perform. 26-6 (2017) 2683–2688.

DOI: 10.1007/s11665-017-2687-6

Google Scholar

[18] F. Nürnberger, O. Grydin, M. Schaper, F.-W. Bach, B. Koczurkiewicz, A. Milenin, Microstructure Transformations in Tempering Steels during Continuous Cooling from Hot Forging Temperatures, Steel research int. 81-4 (2010) 224–233.

DOI: 10.1002/srin.200900132

Google Scholar
