Fast Inverse Identification of the Coefficient of Friction in Cold Strip Rolling Using a Physics-Informed Neural Network

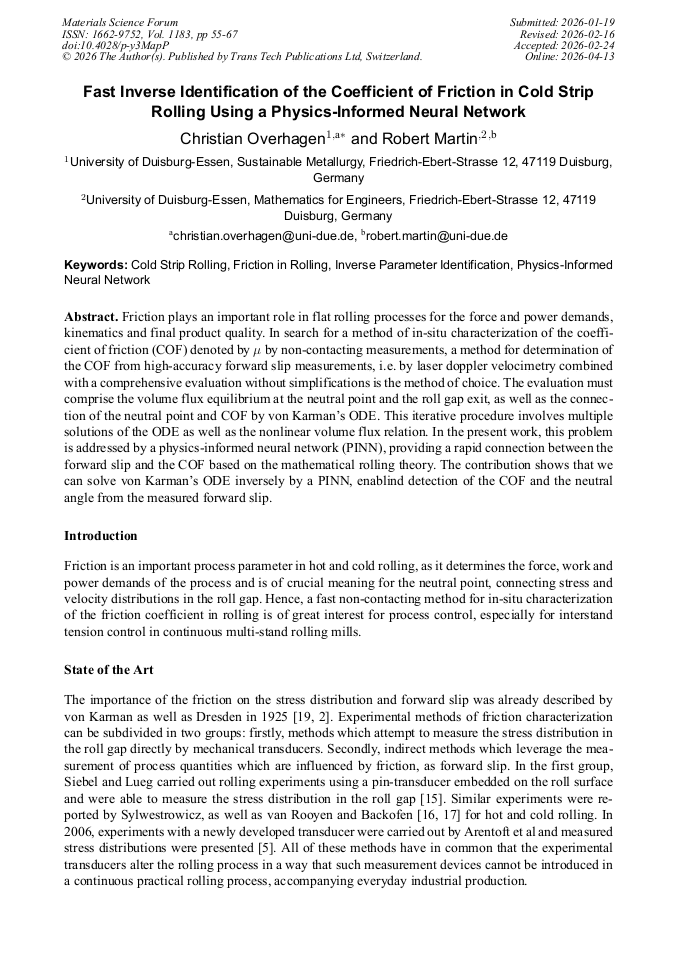

Article Preview
View Pdf By email

Abstract:

Friction plays an important role in flat rolling processes for the force and power demands,kinematics and final product quality. In search for a method of in-situ characterization of the coefficientof friction (COF) by non-contacting measurements, a method for determination of the COF from highaccuracy forward slip measurements, i.e. by laser doppler velocimetry combined with a comprehensiveevaluation without simplifications is the method of choice. The evaluation must comprise the volumeflux equilibrium at the neutral point and the roll gap exit, as well as the connection of the neutral pointand COF by von Karman’s ODE. This iterative procedure involves multiple solutions of the ODE aswell as the nonlinear volume flux relation. In the present work, this problem is addressed by a physicsinformed neural network (PINN), providing a rapid connection between the forward slip and the COFbased on the mathematical rolling theory. The contribution shows that we can solve von Karman’sODE inversely by a PINN, enablind detection of the COF and the neutral angle from the measured forward slip.

You have full access to the following eBook
Forging and Rolling Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1183)

Pages:

55-67

DOI:

https://doi.org/10.4028/p-y3MapP

Citation:

Cite this paper

Online since:

April 2026

Authors:

Christian Overhagen*, Robert Martin

Keywords:

Cold Strip Rolling, Friction in Rolling, Inverse Parameter Identification, Physics Informed Neural Network

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. M. Alexander. On the theory of rolling. Proceedings of the Royal Society of London. Series A, Mathematical and Physical Sciences, 326(1567):535–563, 1972.

DOI: 10.1098/rspa.1972.0025

Google Scholar

[2] D. Dresden. Ueber das voreilen beim walzen. Z. angew. Math. Mech., 5(1):78–79, 1925.

DOI: 10.1002/zamm.19250050108

Google Scholar

[3] W. Hessenberg and R. Sims. The Effect of Tension on Torque and Roll Force in Cold Strip Rolling. Journal of the Iron and Steel Institute, 168:155–164, 1951.

Google Scholar

[4] M. Jarl. Friction and forward slip in hot rolling. Scandinavian Journal of Metallurgy, 17(2), 1988.

Google Scholar

[5] J. Jeswiet, M. Arentoft, and P. Henningsen. Methods and devices used to measure friction in rolling. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 220(1):49–57, 2006-01-01.

DOI: 10.1243/095440506x77580

Google Scholar

[6] J. G. Lenard. Friction and forward slip in cold strip rolling. Tribology Transactions, 35(3):423 428, 1992-01.

DOI: 10.1080/10402009208982138

Google Scholar

[7] E. Li, A. Tieu, and W. Yuen. Forward slip measurements in cold rolling by laser doppler ve locimetry: uncertainty analysis and accuracy improvement. Journal of Materials Processing Technology, 133(3):348–352, 2003-02.

DOI: 10.1016/s0924-0136(02)01049-x

Google Scholar

[8] S.-E. Lundberg. Evaluation of friction in the hot rolling of steel bars by means of on line forward slip measurements. Scand J Metallurgy, 33(3):129–145, 2004-06.

DOI: 10.1111/j.1600-0692.2004.00676.x

Google Scholar

[9] E. Orowan. The calculation of roll pressure in hot and cold flat rolling. Proceedings of the Institution of Mechanical Engineers, 150(1):140–167, 1943-06.

DOI: 10.1243/pime_proc_1943_150_025_02

Google Scholar

[10] C. Overhagen and R. Martin. Roll pass design for round and square sections using an informed artificial neural network. Materials Research Proceedings, 44:444–455, 2024-09-15.

DOI: 10.21741/9781644903254-48

Google Scholar

[11] A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, G. Chanan, T. Killeen, Z. Lin, N. Gimelshein, L. Antiga, A. Desmaison, A. Kopf, E. Yang, Z. DeVito, M. Raison, A. Tejani, S. Chilamkurthy, B. Steiner, L. Fang, J. Bai, and S. Chintala. PyTorch: An imperative style, high-performance deep learning library [software].

Google Scholar

[12] H. Pawelski. Interaction between mechanics and tribology for cold rolling of strip with special emphasis on surface evolution. Technische Universität Bergakademie Freiberg, 2004.

Google Scholar

[13] M. Raissi, P. Perdikaris, and G. Karniadakis. Physics-informed neural networks: A deep learn ing framework for solving forward and inverse problems involving nonlinear partial differential equations. Journal of Computational Physics, 378:686–707, 2019-02.

DOI: 10.1016/j.jcp.2018.10.045

Google Scholar

[14] A. M. RoyandS. Guha. Adata-driven physics-constrained deep learning computational frame work for solving von mises plasticity. Engineering Applications of Artificial Intelligence, 122:106049, 2023-06.

DOI: 10.1016/j.engappai.2023.106049

Google Scholar

[15] E. Siebel and W. Lueg. Untersuchungen über die spannungsverteilung im walzspalt. Mitteilun gen aus dem Kaiser-Wilhelm-Institut fuer Eisenforschung, 15:1–14, 1933.

Google Scholar

[16] C. Smith, F. Scott, and W. Sylwestrowicz. Pressure distribution between stock and rolls in hot and cold flat rolling. Journal of the Iron and Steel Institute, 170:347–359, 1952.

Google Scholar

[17] G. Van Rooyen and W. Backofen. Friction in cold rolling. J. Iron Steel Inst., pages 235–244, 1957.

Google Scholar

[18] R. Venter and A. Abd-Rabbo. Modelling of the rolling process—i. International Journal of Mechanical Sciences, 22(2):83–92, 1980-01.

DOI: 10.1016/0020-7403(80)90044-2

Google Scholar

[19] T. von Karman. Beitrag zur theorie des walzvorgangs. Z. angew. Math. Mech., 5(2):139–141, 1925.

Google Scholar
