Tailored Temperature Gradients in Hybrid Components: Influence of Variable Process Parameters under Cold and Preheated Conditions

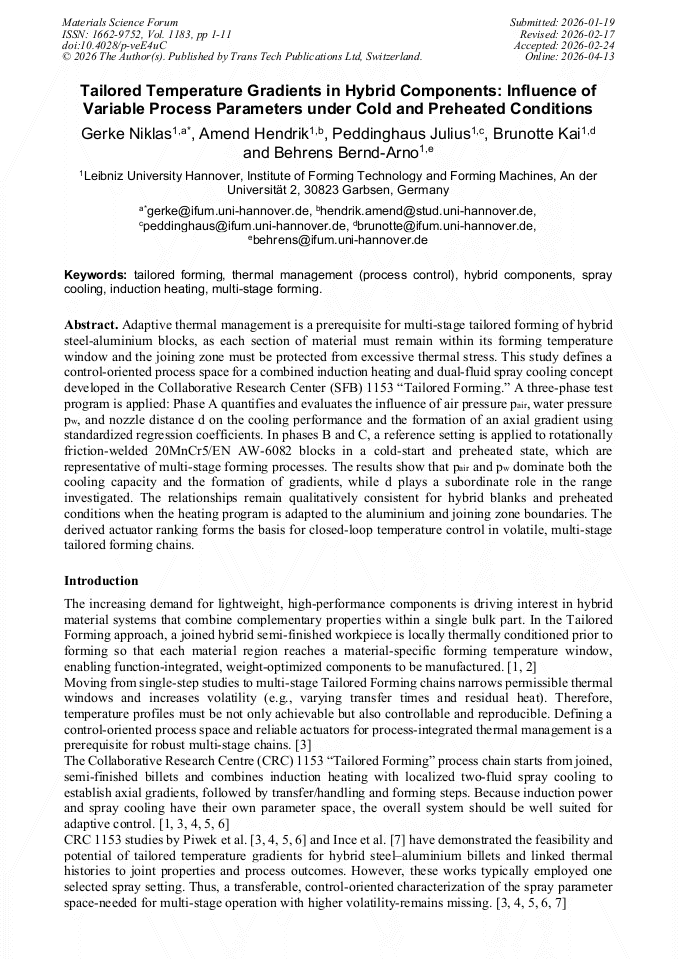

Article Preview
View Pdf By email

Abstract:

Adaptive thermal management is a prerequisite for multi-stage tailored forming of hybrid steel-aluminium blocks, as each section of material must remain within its forming temperature window and the joining zone must be protected from excessive thermal stress. This study defines a control-oriented process space for a combined induction heating and dual-fluid spray cooling concept developed in the Collaborative Research Center (SFB) 1153 “Tailored Forming.” A three-phase test program is applied: Phase A quantifies and evaluates the influence of air pressure pair, water pressure pw, and nozzle distance d on the cooling performance and the formation of an axial gradient using standardized regression coefficients. In phases B and C, a reference setting is applied to rotationally friction-welded 20MnCr5/EN AW-6082 blocks in a cold-start and preheated state, which are representative of multi-stage forming processes. The results show that pair and pw dominate both the cooling capacity and the formation of gradients, while d plays a subordinate role in the range investigated. The relationships remain qualitatively consistent for hybrid blanks and preheated conditions when the heating program is adapted to the aluminium and joining zone boundaries. The derived actuator ranking forms the basis for closed-loop temperature control in volatile, multi-stage tailored forming chains.

You have full access to the following eBook
Forging and Rolling Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1183)

Pages:

1-11

DOI:

https://doi.org/10.4028/p-veE4uC

Citation:

Cite this paper

Online since:

April 2026

Authors:

Niklas Gerke*, Hendrik Amend, Julius Peddinghaus, Kai Brunotte, Bernd Arno Behrens

Keywords:

Hybrid Components, Induction Heating, Multi-Stage Forming, Spray Cooling, Tailored Forming, Thermal Management (Process Control)

Funder:

The publication of this article was funded by the Leibniz Universität Hannover (LUH) / Technische Informationsbibliothek (TIB)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] B.-A. Behrens, J. Uhe, I. Ross, J. Peddinghaus, J. Ursinus, T. Matthias, S. Bährisch, Tailored Forming of hybrid bulk metal components, International Journal of Material Forming, 15 (2022).

DOI: 10.1007/s12289-022-01681-9

Google Scholar

[2] S. E. Thürer, A. Chugreeva, N. Heimes, J. Uhe, B.-A. Behrens, Process chain for the manufacture of hybrid bearing bushings, Production Engineering, 15 (2021).

DOI: 10.1007/s11740-021-01028-4

Google Scholar

[3] A. Piwek, E. Ortlieb, C.-V. Ince, J. Peddinghaus, H. Wester, J. Uhe, A. Raatz, K. Brunotte, Analysis of Temperature and Stress Distribution on the Bond Properties of Hybrid Tailored Formed Components, Adv. Eng. Mater. 27 (2025) 2402031.

DOI: 10.1002/adem.202402031

Google Scholar

[4] A. Piwek, J. Peddinghaus, J. Uhe, K. Brunotte, Influence of enlarged joining zone interfaces on the bond properties of tailored formed hybrid components made of 20MnCr5 steel and EN AW-6082 aluminium, Materials Research Proceedings 41 (2024) 792–801.

DOI: 10.21741/9781644903131-87

Google Scholar

[5] A. Piwek, J. Peddinghaus, J. Uhe, K. Brunotte, Investigation of the joining zone formation of impact extruded hybrid components by varied forming sequence and partial cooling, Materials Research Proceedings 28 (2023) 591–600.

DOI: 10.21741/9781644902479-64

Google Scholar

[6] A. Piwek, J. Peddinghaus, J. Uhe, K. Brunotte, Influencing the mechanical properties of pre-joined hybrid semi-finished products by impact extrusion, METAL 2023, Brno (2023).

DOI: 10.37904/metal.2023.4633

Google Scholar

[7] C.-V. Ince, A. Chugreeva, A. Böhm, A design concept of active cooling for tailored forming workpieces during induction heating, Production Engineering, 15 (2021) 177–186.

DOI: 10.1007/s11740-021-01027-5

Google Scholar

[8] B.-A. Behrens, J. Uhe, T. Petersen, C. Klose, S. E. Thürer, J. Diefenbach, A. Chugreeva, Challenges in the Forging of Steel-Aluminum Bearing Bushings, Materials, 14 (2021) 803.

DOI: 10.3390/ma14040803

Google Scholar

[9] B.-A. Behrens, J. Uhe, et al., Tailored Forming of Hybrid Bevel Gears with Integrated Heat Treatment, Procedia Manufacturing, 2020 (ScienceDirect article: S2351978920313007).

DOI: 10.1016/j.promfg.2020.04.234

Google Scholar

[10] F. P. Incropera, D. P. DeWitt, T. L. Bergman, A. S. Lavine, Fundamentals of Heat and Mass Transfer, 7th ed., Wiley, Hoboken, 2011.

Google Scholar

[11] V. Rudnev, D. Loveless, R. L. Cook, Handbook of Induction Heating, 2nd ed., CRC Press, Boca Raton, 2017.

Google Scholar

[12] G. Liang, I. Mudawar, Review of spray cooling – Part 1: Single-phase and nucleate boiling regimes, and critical heat flux, International Journal of Heat and Mass Transfer, 115 (2017) 1174–1205.

DOI: 10.1016/j.ijheatmasstransfer.2017.06.029

Google Scholar

[13] G. Liang, I. Mudawar, Review of spray cooling – Part 2: High temperature boiling regimes and quenching applications, International Journal of Heat and Mass Transfer, 115 (2017) 1206–1223.

DOI: 10.1016/j.ijheatmasstransfer.2017.06.022

Google Scholar

[14] J. Wendelstorf, K.-H. Spitzer, R. Wendelstorf, Spray water cooling heat transfer at high temperatures and liquid mass fluxes, International Journal of Heat and Mass Transfer, 51 (2008) 4902–4910.

DOI: 10.1016/j.ijheatmasstransfer.2008.01.032

Google Scholar

[15] I. Vladyko, A. Kvochka, M. Raudensky, Analysis of the Influence of Nozzle-to-Surface Distance on the Cooling Process Characteristics, Fluids, 8 (2023) 191.

DOI: 10.3390/fluids8070191

Google Scholar

[16] B.-A. Behrens, A. Chugreeva, J. Diefenbach, C. Kahra, S. E. Thürer, J. Uhe, Microstructural characterization of steel–aluminum hybrid components manufactured by friction welding and die forging, Metals, 10 (2020) 1365.

DOI: 10.3390/met10101365

Google Scholar

[17] I. M. Sobol', Global sensitivity indices for nonlinear mathematical models and their Monte Carlo estimates, Mathematics and Computers in Simulation, 55 (2001) 271–280.

DOI: 10.1016/S0378-4754(00)00270-6

Google Scholar

[18] H. Amend, Einfluss variabler Prozessparameter auf das Erzeugen axialer Temperaturgradienten in hybriden Bauteilen, Master Thesis, Leibniz University Hannover, 2025.

Google Scholar

[19] D. C. Montgomery, Design and Analysis of Experiments, 8th ed., Wiley, Hoboken, 2013.

Google Scholar

[20] J. Benther, et al., Heat transfer during multiple droplet impingement and spray cooling: Review and prospects for enhanced surfaces, International Journal of Heat and Mass Transfer, 178 (2021) 121587.

DOI: 10.1016/j.ijheatmasstransfer.2021.121587

Google Scholar

[21] M. Chabicovsky, P. Kotrbacek, H. Bellerova, J. Kominek, M. Raudensky, Spray Cooling Heat Transfer above Leidenfrost Temperature, Metals, 10 (2020) 1270.

DOI: 10.3390/met10091270

Google Scholar

[22] H. Ghari, et al., Metallurgical characteristics of aluminum–steel joints manufactured by rotary friction welding: A review and statistical analysis, Journal of Materials Research and Technology, 2024 (ScienceDirect article: S2238785424006185).

DOI: 10.1016/j.jmrt.2024.03.089

Google Scholar
