Multiscale Simulation of Asperity Flattening with Realistic Surface Topography and Microstructure

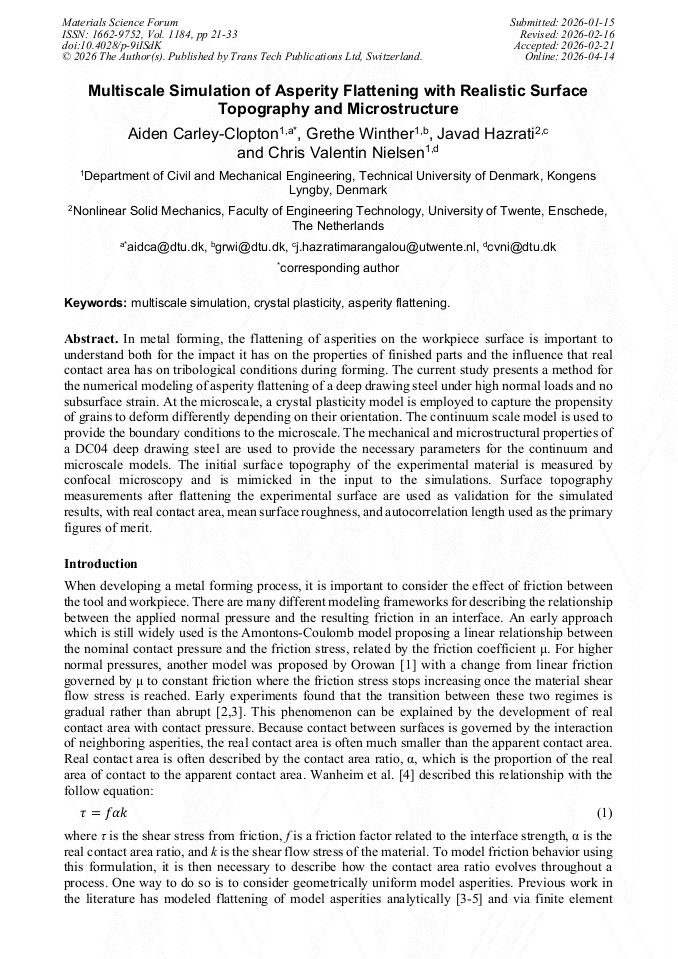

Article Preview

View Pdf By email

Abstract:

In metal forming, the flattening of asperities on the workpiece surface is important to understand both for the impact it has on the properties of finished parts and the influence that real contact area has on tribological conditions during forming. The current study presents a method for the numerical modeling of asperity flattening of a deep drawing steel under high normal loads and no subsurface strain. At the microscale, a crystal plasticity model is employed to capture the propensity of grains to deform differently depending on their orientation. The continuum scale model is used to provide the boundary conditions to the microscale. The mechanical and microstructural properties of a DC04 deep drawing steel are used to provide the necessary parameters for the continuum and microscale models. The initial surface topography of the experimental material is measured by confocal microscopy and is mimicked in the input to the simulations. Surface topography measurements after flattening the experimental surface are used as validation for the simulated results, with real contact area, mean surface roughness, and autocorrelation length used as the primary figures of merit.

You have full access to the following eBook

Friction and Wear in Metal Forming

Info:

Periodical:

Materials Science Forum (Volume 1184)

Pages:

21-33

DOI:

https://doi.org/10.4028/p-9iISdK

Citation:

Cite this paper

Online since:

April 2026

Authors:

Aiden Carley-Clopton*, Grethe Winther, Javad Hazrati, Chris Valentin Nielsen

Keywords:

Asperity Flattening, Crystal Plasticity, Multiscale Simulation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] E. Orowan, The Calculation of Roll Pressure in Hot and Cold Flat Rolling, Proc. Inst. Mech. Eng., 150 (1943) 140-167.

DOI: 10.1243/pime_proc_1943_150_025_02

[2] M. C. Shaw, A. Ber, and P. A. Mamin, Friction Characteristics of Sliding Surfaces Undergoing Subsurface Plastic Flow, J. Basic Eng., 82 (1960) 342–345.

DOI: 10.1115/1.3662595

[3] T. Wanheim, Friction at high normal pressures, Wear, 25 (1973) 225–244.

DOI: 10.1016/0043-1648(73)90074-4

[4] T. Wanheim, N. Bay, and A. S. Petersen, A theoretically determined model for friction in metal working processes, Wear, 28 (1974) 251–258.

DOI: 10.1016/0043-1648(74)90165-3

[5] M. P. F. Sutcliffe, Surface asperity deformation in metal forming processes, Int. J. Mech. Sci. 30 (1988) 847–868.

DOI: 10.1016/0020-7403(88)90010-0

[6] H. Ike and A. Makinouchi, Effect of lateral tension and compression on plane strain flattening processes of surface asperities lying over a plastically deformable bulk, Wear 140(1990)17-38.

DOI: 10.1016/0043-1648(90)90119-u

[7] Z.G. Wang, Y. Yoshikawa, T. Suzuki, and K. Osakada, Determination of friction law in dry metal forming with DLC coated tool, CIRP Ann. 63 (2014) 277–280.

DOI: 10.1016/j.cirp.2014.03.050

[8] C.V. Nielsen, P.A.F. Martins, and N. Bay, Modelling of real area of contact between tool and workpiece in metal forming processes including the influence of subsurface deformation, CIRP Ann. 65 (2016) 261–264.

DOI: 10.1016/j.cirp.2016.04.126

[9] J. Hol, M. V. Cid Alfaro, M. B. De Rooij, and T. Meinders, Advanced friction modeling for sheet metal forming, Wear, 286–287 (2012) 66–78.

DOI: 10.1016/j.wear.2011.04.004

[10] M. Shisode, J. Hazrati, T. Mishra, M. De Rooij, and T. Van Den Boogaard, Evolution of real area of contact due to combined normal load and sub-surface straining in sheet metal, Friction 9 (2021) 840–855.

DOI: 10.1007/s40544-020-0444-6

[11] M. Zwicker, N. Bay, and C. V. Nielsen, A discussion of model asperities as a method to study friction in metal forming, Discov. Mech. Eng. 2 (2023) 3.

DOI: 10.1007/s44245-023-00010-x

[12] P. K. Saha and W. R. D. Wilson, Influence of plastic strain on friction in sheet metal forming, Wear 172 (1994) 167–173.

DOI: 10.1016/0043-1648(94)90284-4

[13] O. Zinovieva, V. Romanova, R. Balokhonov, A. Zinoviev, and Z. Kovalevskaya, Numerical Study of the Influence of Grain Size and Loading Conditions on the Deformation of a Polycrystalline Aluminum Alloy, J. Appl. Math. Phys. 2 (2014) Art. no. 6.

DOI: 10.4236/jamp.2014.26051

[14] A.V. Panin et al., Mesoscopic surface folding in EK-181 steel polycrystals under uniaxial tension, Phys. Mesomech. 15 (2012) 94–103.

DOI: 10.1134/s1029959912010109

[15] Y. Wu, V. Recklin, and P. Groche, Strain Induced Surface Change in Sheet Metal Forming: Numerical Prediction, Influence on Friction and Tool Wear, J. Manuf. Mater. Process. 5 (2021) Art. no. 2.

DOI: 10.3390/jmmp5020029

[16] H. J. Bong and J. Lee, Crystal plasticity finite element–Marciniak-Kuczynski approach with surface roughening effect in predicting formability of ultra-thin ferritic stainless steel sheets, Int. J. Mech. Sci. 191 (2021) 106066.

DOI: 10.1016/j.ijmecsci.2020.106066

[17] Y. Wu, V. Recklin, and P. Groche, Strain Induced Surface Change in Sheet Metal Forming: Numerical Prediction, Influence on Friction and Tool Wear, J. Manuf. Mater. Process. 5 (2021) Art. no. 2.

DOI: 10.3390/jmmp5020029

[18] Sensofar S Neox confocal microscope in DTU Metrology lab, used 2025.

[19] M.P. Shisode, J. Hazrati, T. Mishra, M. B. de Rooij, and A. H. van den Boogaard, Semi-analytical contact model to determine the flattening behavior of coated sheets under normal load, Tribol. Int. 146 (2020) 106182.

DOI: 10.1016/j.triboint.2020.106182

[20] Metallic materials – Tensile testing – Part 1: Method of test at room temperature (ISO 6892-1: 2019) .

[21] R. Quey, P. R. Dawson, and F. Barbe, Large-scale 3D random polycrystals for the finite element method: Generation, meshing and remeshing, Comput. Methods Appl. Mech. Eng. 200 (2011) 1729–1745.

DOI: 10.1016/j.cma.2011.01.002

[22] D. Zhao, C. Xin, T. Jin, X. Yan, S. Ma, and Z. Wang, Evolution of face-centered-cubic polycrystalline plastic anisotropy under biaxial loading by crystal plasticity finite element method, Eng. Comput. 37 (2019) 895–908.

DOI: 10.1108/ec-12-2018-0573

[23] A. Carley-Clopton, G. Winther, O. Mishin, and C. Nielsen, Multiscale simulation of surface roughening of a deep drawing steel due to subsurface plastic deformation, MATEC Web Conf. 408 IDDRG 2025 (2025).

DOI: 10.1051/matecconf/202540801062

[24] F. Roters et al., DAMASK – The Düsseldorf Advanced Material Simulation Kit for modeling multi-physics crystal plasticity, thermal, and damage phenomena from the single crystal up to the component scale, Comput. Mater. Sci. 158 (2019) 420–478.

DOI: 10.1016/j.commatsci.2018.04.030

[25] M. Shisode, J. Hazrati, T. Mishra, M. De Rooij, and T. Van Den Boogaard, Evolution of real area of contact due to combined normal load and sub-surface straining in sheet metal, Friction, 9 (2021) 840–855.

DOI: 10.1007/s40544-020-0444-6

[26] N. Bay and G. Gerved, Tool/workpiece interface stresses in simple upsetting, J. Mech. Work. Technol. 14 (1987) 263–282.

DOI: 10.1016/0378-3804(87)90013-1
