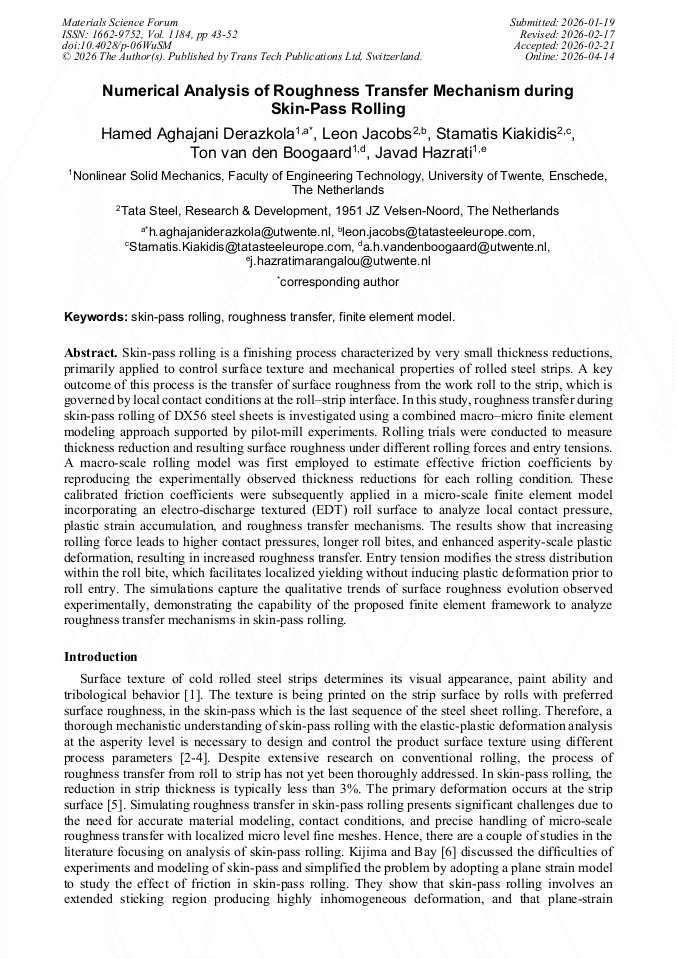

Numerical Analysis of Roughness Transfer Mechanism during Skin-Pass Rolling

Abstract:

Skin-pass rolling is a finishing process characterized by very small thickness reductions, primarily applied to control surface texture and mechanical properties of rolled steel strips. A key outcome of this process is the transfer of surface roughness from the work roll to the strip, which is governed by local contact conditions at the roll–strip interface. In this study, roughness transfer during skin-pass rolling of DX56 steel sheets is investigated using a combined macro–micro finite element modeling approach supported by pilot-mill experiments. Rolling trials were conducted to measure thickness reduction and resulting surface roughness under different rolling forces and entry tensions. A macro-scale rolling model was first employed to estimate effective friction coefficients by reproducing the experimentally observed thickness reductions for each rolling condition. These calibrated friction coefficients were subsequently applied in a micro-scale finite element model incorporating an electro-discharge textured (EDT) roll surface to analyze local contact pressure, plastic strain accumulation, and roughness transfer mechanisms. The results show that increasing rolling force leads to higher contact pressures, longer roll bites, and enhanced asperity-scale plastic deformation, resulting in increased roughness transfer. Entry tension modifies the stress distribution within the roll bite, which facilitates localized yielding without inducing plastic deformation prior to roll entry. The simulations capture the qualitative trends of surface roughness evolution observed experimentally, demonstrating the capability of the proposed finite element framework to analyze roughness transfer mechanisms in skin-pass rolling.

• Periodical: Materials Science Forum (Volume 1184)
• Pages: 43-52
• DOI: https://doi.org/10.4028/p-06WuSM
• Online since: April 2026
• Authors: Hamed Aghajani Derazkola*, Leon Jacobs, Stamatis Kiakidis, Ton van den Boogaard, Javad Hazrati
• Keywords: Finite Element Model, Roughness Transfer, Skin-Pass Rolling

References

[1] F. J. Huertos, F. Clarysse, and M. Vermeulen, 'Identification of the paint process for steel sheet applications', Wear, vol. 266, no. 5–6, p.523–526, 2009.

DOI: 10.1016/j.wear.2008.04.070

[2] M. Vermeulen and J. Scheers, 'Micro-hydrodynamic effects in EBT textured steel sheet', Int. J. Mach. Tools Manuf., vol. 41, no. 13–14, p.1941–1951, 2001.

DOI: 10.1016/s0890-6955(01)00059-1

[3] D. P. Gruber, M. Buder-Stroisznigg, G. Wallner, B. Strauss, L. Jandel, and R. W. Lang, 'A novel methodology for the evaluation of distinctness of image of glossy surfaces', Prog. Org. Coat., vol. 63, no. 4, p.377–381, Nov. 2008.

DOI: 10.1016/j.porgcoat.2008.06.008

[4] J. Scheers, M. Vermeulen, C. De Maré, and K. Meseure, 'Assessment of steel surface roughness and waviness in relation with paint appearance', Int. J. Mach. Tools Manuf., vol. 38, no. 5–6, p.647–656, May 1998.

DOI: 10.1016/S0890-6955(97)00113-2

[5] H. Kijima, 'Mechanism of Roughness Profile Transfer in Skin-pass Rolling of Thin Steel Strip', 2019.

[6] H. Kijima and N. Bay, 'Contact conditions in skin-pass rolling', CIRP Ann. - Manuf. Technol., vol. 56, no. 1, p.301–306, 2007.

DOI: 10.1016/j.cirp.2007.05.070

[7] H. Kijima and N. Bay, 'Skin-pass rolling I-Studies on roughness transfer and elongation under pure normal loading', Int. J. Mach. Tools Manuf., vol. 48, no. 12–13, p.1313–1317, Oct. 2008.

DOI: 10.1016/j.ijmachtools.2008.06.005

[8] H. Kijima and N. Bay, 'Skin-pass rolling II-Studies of roughness transfer under combined normal and tangential loading', Int. J. Mach. Tools Manuf., vol. 48, no. 12–13, p.1308–1312, Oct. 2008.

DOI: 10.1016/j.ijmachtools.2008.06.006

[9] R. Bünten, K. Steinhoff, W. Rasp, R. Kopp, O. Pawelski, Development of a FEM-model for the simulation of the transfer of surface structure in cold-rolling processes, Journal of Materials Processing Technology, Volume 60 (1–4),1996.

DOI: 10.1016/0924-0136(96)02356-4

[10] L.J.M. Jacobs, E.H. Atzema, J. Moerman, M.B. de Rooij, 'Quantification of the influence of anisotropic plastic yielding on cold rolling force', Journal of Materials Processing Technology, vol. 319, 2023, 118055

DOI: 10.1016/j.jmatprotec.2023.118055

[11] D. J. Wentink, D. Matthews, N. M. Appelman, and E. M. Toose, 'A generic model for surface texture development, wear and roughness transfer in skin pass rolling', Wear, vol. 328–329, p.167–176, Apr. 2015.

DOI: 10.1016/j.wear.2015.02.015

[12] L.J.M. Jacobs, "MODELLING FRICTION IN COLD ROLLING", Ph.D. thesis University of Twente, Enschede. 2025

DOI: 10.3990/1.9789036566117

[13] P. Christensen, H. Everfelt, N. Bay, and T. Wanheim, 'Pressure distribution in plate rolling', CIRP Ann., vol. 35, no. 1, p.141–146, 1986.

DOI: 10.1016/s0007-8506(07)61857-5

[14] J. Jeswiet and W. B. Rice, 'The neutral zone and temperature at the roll/strip interface', CIRP Ann., vol. 39, no. 1, p.275–277, 1990.

DOI: 10.1016/s0007-8506(07)61052-x

[15] N.A. Fleck, K.L. Johnson, M.E. Mear, and L.C. Zhang, 'Cold rolling of foil', Proc. Inst. Mech. Eng. Part B J. Eng. Manuf., vol. 206, no. 2, p.119–131, 1992.
