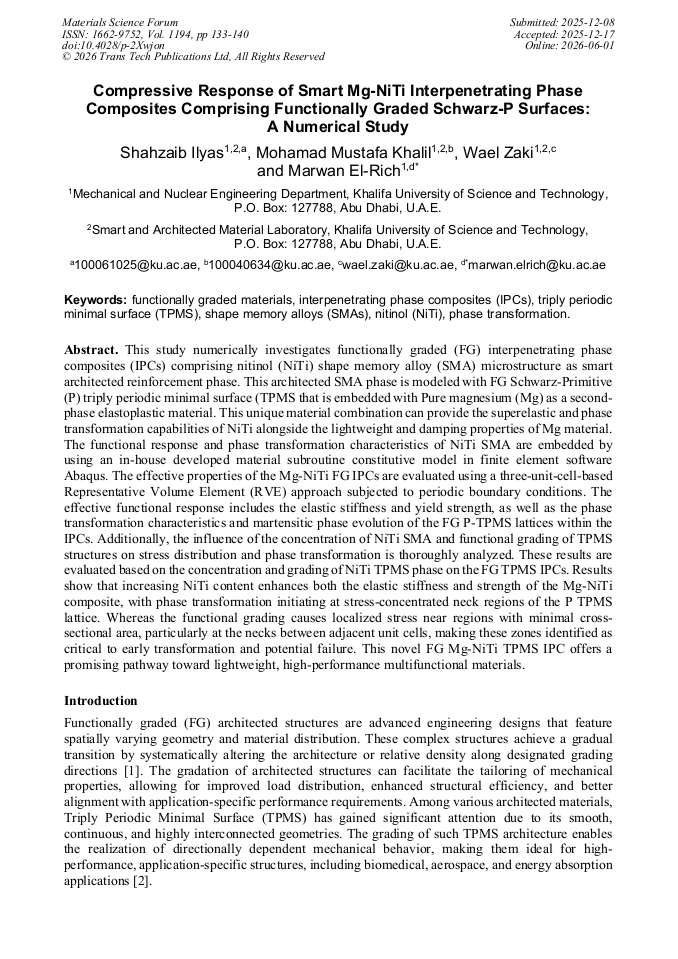

Compressive Response of Smart Mg-NiTi Interpenetrating Phase Composites Comprising Functionally Graded Schwarz-P Surfaces: A Numerical Study

Abstract:

This study numerically investigates functionally graded (FG) interpenetrating phase composites (IPCs) comprising nitinol (NiTi) shape memory alloy (SMA) microstructure as smart architected reinforcement phase. This architected SMA phase is modeled with FG Schwarz-Primitive (P) triply periodic minimal surface (TPMS that is embedded with Pure magnesium (Mg) as a second-phase elastoplastic material. This unique material combination can provide the superelastic and phase transformation capabilities of NiTi alongside the lightweight and damping properties of Mg material. The functional response and phase transformation characteristics of NiTi SMA are embedded by using an in-house developed material subroutine constitutive model in finite element software Abaqus. The effective properties of the Mg-NiTi FG IPCs are evaluated using a three-unit-cell-based Representative Volume Element (RVE) approach subjected to periodic boundary conditions. The effective functional response includes the elastic stiffness and yield strength, as well as the phase transformation characteristics and martensitic phase evolution of the FG P-TPMS lattices within the IPCs. Additionally, the influence of the concentration of NiTi SMA and functional grading of TPMS structures on stress distribution and phase transformation is thoroughly analyzed. These results are evaluated based on the concentration and grading of NiTi TPMS phase on the FG TPMS IPCs. Results show that increasing NiTi content enhances both the elastic stiffness and strength of the Mg-NiTi composite, with phase transformation initiating at stress-concentrated neck regions of the P TPMS lattice. Whereas the functional grading causes localized stress near regions with minimal cross-sectional area, particularly at the necks between adjacent unit cells, making these zones identified as critical to early transformation and potential failure. This novel FG Mg-NiTi TPMS IPC offers a promising pathway toward lightweight, high-performance multifunctional materials.

• Periodical: Materials Science Forum (Volume 1194)
• Pages: 133-140
• DOI: https://doi.org/10.4028/p-2Xwjon
• Online since: June 2026
• Authors: Shahzaib Ilyas, Mohamad Mustafa Khalil, Wael Zaki, Marwan El-Rich*
• Keywords: Functionally Graded Materials, Interpenetrating Phase Composites (IPCs), Nitinol (NiTi), Phase Transformation, Shape Memory Alloys (SMAs), Triply Periodic Minimal Surface (TPMS)

References

[1] F. Xu, X. Zhang, and H. Zhang, "A review on functionally graded structures and materials for energy absorption," Engineering Structures, vol. 171, pp.309-325, 2018/09/15/ 2018.

DOI: 10.1016/j.engstruct.2018.05.094

[2] S. Yu, J. Sun, and J. Bai, "Investigation of functionally graded TPMS structures fabricated by additive manufacturing," Materials & Design, vol. 182, p.108021, 2019/11/15/ 2019.

DOI: 10.1016/j.matdes.2019.108021

[3] D. Chen, K. Gao, J. Yang, and L. Zhang, "Functionally graded porous structures: Analyses, performances, and applications – A Review," Thin-Walled Structures, vol. 191, p.111046, 2023/10/01/ 2023.

DOI: 10.1016/j.tws.2023.111046

[4] A. N. Alagha, S. Hussain, and W. Zaki, "Additive manufacturing of shape memory alloys: A review with emphasis on powder bed systems," Materials & Design, vol. 204, p.109654, 2021.

DOI: 10.1016/j.matdes.2021.109654

[5] S. Ilyas, R. K. Abu Al-Rub, B. El-Khasawneh, and W. Zaki, "Numerical Prediction of the Effective Mechanical Behavior of Interpenetrating Phase Composites Comprising Architected Nitinol Cores," in Smart Materials, Adaptive Structures and Intelligent Systems, 2023, vol. 87523: American Society of Mechanical Engineers, p. V001T01A011.

DOI: 10.1115/SMASIS2023-111103

[6] S. Ilyas, "Effective Behavior of Dual-Phase Interpenetrating Composites Comprising an Additively Manufactured Smart Nitinol Core," Khalifa University of Science, 2023.

[7] W. Zaki and Z. Moumni, "A three-dimensional model of the thermomechanical behavior of shape memory alloys," Journal of the Mechanics and Physics of Solids, vol. 55, no. 11, pp.2455-2490, 2007/11/01/ 2007.

DOI: 10.1016/j.jmps.2007.03.012

[8] T. M. Pollock, "Weight loss with magnesium alloys," Science, vol. 328, no. 5981, pp.986-987, 2010.

DOI: 10.1126/science.1182848

[9] K. Sugimoto, K. Niiya, T. Okamoto, and K. Kishitake, "A study of damping capacity in magnesium alloys," Transactions of the Japan Institute of Metals, vol. 18, no. 3, pp.277-288, 1977.

DOI: 10.2320/matertrans1960.18.277

[10] Y. Cui et al., "Enhanced damping capacity of magnesium alloys by tensile twin boundaries," Scripta Materialia, vol. 101, pp.8-11, 2015.

DOI: 10.1016/j.scriptamat.2015.01.002

[11] R. Schaller, "Metal matrix composites, a smart choice for high damping materials," Journal of Alloys and Compounds, vol. 355, no. 1-2, pp.131-135, 2003.

DOI: 10.1016/S0925-8388(03)00239-1

[12] M. Zhang et al., "3D printed Mg-NiTi interpenetrating-phase composites with high strength, damping capacity, and energy absorption efficiency," Science advances, vol. 6, no. 19, p. eaba5581, 2020.

DOI: 10.1126/sciadv.aba5581

[13] O. Al‐Ketan and R. K. Abu Al‐Rub, "MSLattice: A free software for generating uniform and graded lattices based on triply periodic minimal surfaces," Material Design & Processing Communications, vol. 3, no. 6, p. e205, 2021.

DOI: 10.1002/mdp2.205

[14] W. Zaki, "An approach to modeling tensile–compressive asymmetry for martensitic shape memoryalloys," Smart Materials and Structures, vol. 19, no. 2, p.025009, 2010.

DOI: 10.1088/0964-1726/19/2/025009

[15] J. Wang, Z. Moumni, W. Zhang, Y. Xu, and W. Zaki, "A 3D finite-strain-based constitutive model for shape memory alloys accounting for thermomechanical coupling and martensite reorientation," Smart Materials and Structures, vol. 26, no. 6, p.065006, 2017/05/02 2017.

DOI: 10.1088/1361-665X/aa6c17

[16] K. Krishnan, D.-W. Lee, M. Al Teneji, and R. K. Abu Al-Rub, "Effective stiffness, strength, buckling and anisotropy of foams based on nine unique triple periodic minimal surfaces," International Journal of Solids and Structures, vol. 238, p.111418, 2022/03/01/ 2022.

DOI: 10.1016/j.ijsolstr.2021.111418

[17] K. Abu Al-Rub Rashid, D.-W. Lee, A. Khan Kamran, and N. Palazotto Anthony, "Effective Anisotropic Elastic and Plastic Yield Properties of Periodic Foams Derived from Triply Periodic Schoen's I-WP Minimal Surface," Journal of Engineering Mechanics, vol. 146, no. 5, p.04020030, 2020/05/01 2020.

DOI: 10.1061/(ASCE)EM.1943-7889.0001759

[18] Z. Hashin and S. Shtrikman, "A variational approach to the theory of the elastic behaviour of multiphase materials," Journal of the Mechanics and Physics of Solids, vol. 11, no. 2, pp.127-140, 1963.

DOI: 10.1016/0022-5096(63)90060-7
