Metamaterial-Inspired Auxetic and Chiral Aluminium Composite Sandwich Cores under High Velocity Impact: Comparative Analysis

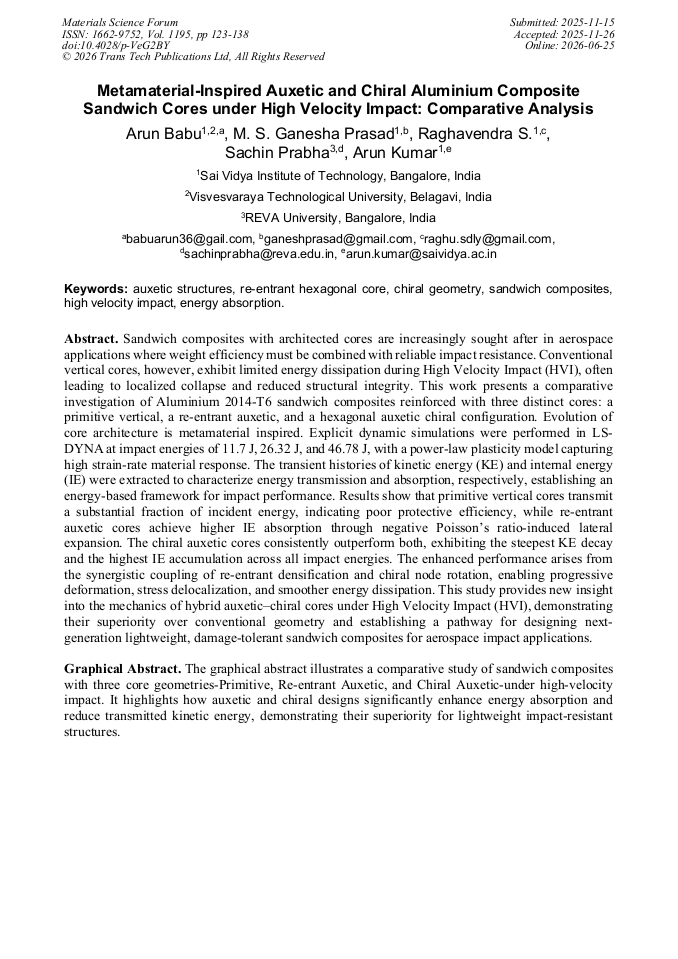

Article Preview

Abstract:

Sandwich composites with architected cores are increasingly sought after in aerospace applications where weight efficiency must be combined with reliable impact resistance. Conventional vertical cores, however, exhibit limited energy dissipation during High Velocity Impact (HVI), often leading to localized collapse and reduced structural integrity. This work presents a comparative investigation of Aluminium 2014-T6 sandwich composites reinforced with three distinct cores: a primitive vertical, a re-entrant auxetic, and a hexagonal auxetic chiral configuration. Evolution of core architecture is metamaterial inspired. Explicit dynamic simulations were performed in LS-DYNA at impact energies of 11.7 J, 26.32 J, and 46.78 J, with a power-law plasticity model capturing high strain-rate material response. The transient histories of kinetic energy (KE) and internal energy (IE) were extracted to characterize energy transmission and absorption, respectively, establishing an energy-based framework for impact performance. Results show that primitive vertical cores transmit a substantial fraction of incident energy, indicating poor protective efficiency, while re-entrant auxetic cores achieve higher IE absorption through negative Poisson’s ratio-induced lateral expansion. The chiral auxetic cores consistently outperform both, exhibiting the steepest KE decay and the highest IE accumulation across all impact energies. The enhanced performance arises from the synergistic coupling of re-entrant densification and chiral node rotation, enabling progressive deformation, stress delocalization, and smoother energy dissipation. This study provides new insight into the mechanics of hybrid auxetic–chiral cores under High Velocity Impact (HVI), demonstrating their superiority over conventional geometry and establishing a pathway for designing next-generation lightweight, damage-tolerant sandwich composites for aerospace impact applications.

You might also be interested in these eBooks
Composite Materials, Properties and Processing of Steel and Alloys View Preview

Info:

Periodical:

Materials Science Forum (Volume 1195)

Pages:

123-138

DOI:

https://doi.org/10.4028/p-VeG2BY

Citation:

Cite this paper

Online since:

June 2026

Authors:

Arun Babu, M.S. Ganesha Prasad, S. Raghavendra, Sachin Prabha*, Arun Kumar

Keywords:

Auxetic Structures, Chiral Geometry, Energy Absorption, High Velocity Impact, Re-Entrant Hexagonal Core, Sandwich Composites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] H. Zhu, X. Zhang, Y. Chen, Energy absorption of auxetic honeycomb structures under impact loading, Compos. Struct. 152 (2016) 43–59.

DOI: 10.1016/j.compstruct.2016.05.006

Google Scholar

[2] Y. Bai, X. Yang, Dynamic crushing behavior of re-entrant lattice cores under axial impact, Int. J. Impact Eng. 130 (2019) 10–22.

DOI: 10.1016/j.ijimpeng.2019.04.002

Google Scholar

[3] M.S. Salim, A.K. Ariffin, S. Anuar, Simulation of auxetic core behavior under ballistic impact, Mater. Today: Proc. 47 (2021) 4037–4042.

DOI: 10.1016/j.matpr.2021.04.236

Google Scholar

[4] S. Attarilar, M. Ebrahimi, J. Yang, C. Liu, D. Zhang, Mechanical properties of auxetic metallic metamaterials: A review, Mater. Res. Express 8(8) (2021) 082001.

Google Scholar

[5] L. Xu, Y. Sun, Y. Wang, Design optimization of re-entrant auxetic cores for improved impact resistance, Mater. Des. 195 (2020) 109040.

DOI: 10.1016/j.matdes.2020.109040

Google Scholar

[6] T.C. Lim, W.L. Tan, C.W. Lim, Drop-weight testing of 3D printed auxetic sandwich panels, Addit. Manuf. 32 (2020) 101040.

Google Scholar

[7] K.L. Alderson, A. Alderson, D. Attard, V.R. Simkins, Blast resistance of chiral auxetic lattices, Phys. Status Solidi B 254(7) (2017) 1600803.

DOI: 10.1002/pssb.201600803

Google Scholar

[8] V. Kumar, N. Chandra, N. Jain, Hybrid auxetic core designs for enhanced structural performance under impact, Compos. Struct. 286 (2022) 115319.

DOI: 10.1016/j.compstruct.2022.115319

Google Scholar

[9] L. Wu, Z. Wang, Numerical analysis of chiral–reentrant hybrid sandwich panels under dynamic loads, Mater. Des. 226 (2023) 111547.

DOI: 10.1016/j.matdes.2022.111547

Google Scholar

[10] Y. He, H. Lu, J. Zhang, X. Zeng, Additive manufacturing of complex metallic auxetic cores: Trends and applications, Adv. Eng. Mater. 26(1) (2024) 2300842.

Google Scholar

[11] A.S. Khan, H. Liu, H. Zhang, Mechanical response and modeling of aluminum alloys under different strain rates, Int. J. Plast. 83 (2016) 119–139.

DOI: 10.1016/j.ijplas.2016.04.008

Google Scholar

[12] M. Naveed, M. Asif, A. Hussain, Thermo-mechanical behavior of AA2014-T6 alloy under varying strain rates, J. Alloys Compd. 938 (2023) 168574.

DOI: 10.1016/j.jallcom.2022.168574

Google Scholar

[13] M. Prasad, A. Kumar, Dynamic characterization of 2xxx-series aluminum alloys using Split-Hopkinson Pressure Bar, Def. Technol. 18(1) (2022) 190–199.

DOI: 10.1016/j.dt.2021.03.004

Google Scholar

[14] M. Müller, A.G. Knyazeva, Elastic constants of aluminum alloys: A review, Mech. Mater. 133 (2019) 1–10.

Google Scholar

[15] Y. Zhou, R. Wang, Y. Liu, On the homogenized modeling of auxetic honeycomb cores using equivalent material properties, Compos. Struct. 200 (2018) 781–789.

DOI: 10.1016/j.compstruct.2018.06.041

Google Scholar

[16] Z. Chen, X. Wang, Numerical evaluation of re-entrant auxetic structures using homogenization-based techniques, Mater. Des. 192 (2020) 108727.

DOI: 10.1016/j.matdes.2020.108727

Google Scholar

[17] N. Abedrabbo, F. Pourboghrat, Strain hardening and plasticity modeling of aluminum 2xxx and 6xxx series alloys, Int. J. Mech. Sci. 99 (2015) 191–202.

DOI: 10.1016/j.ijmecsci.2015.05.003

Google Scholar

[18] A.K. Srivastava, R.M. Reddy, Evaluation of mechanical properties of aluminium alloy AA 2014 under different ageing conditions, Int. Press Corp. (2014), http://inpressco.com/wp-content/uploads/2014/02/Paper53295-297.pdf.

Google Scholar

[19] M. Namvar, et al., Auxetic metamaterials for bone-implanted medical devices, Mater. Sci. Eng. C 156 (2024) 114397.

Google Scholar

[20] A. Kumar, et al., Modified re-entrant auxetic metamaterials with energy absorption characteristics, Thin-Walled Struct. (2024).

Google Scholar

[21] Y. Liu, H. Zhang, J. Wang, Numerical investigation of impact resistance in novel auxetic sandwich structures, Compos. Struct. 260 (2021) 113267.

DOI: 10.1016/j.compstruct.2020.113267

Google Scholar

[22] T. Belytschko, W.K. Liu, B. Moran, K. Elkhodary, Nonlinear finite elements for continua and structures, Wiley, 2000.

Google Scholar

[23] J.O. Hallquist, LS-DYNA Theory Manual, Livermore Software Technology Corporation, 2006.

Google Scholar

[24] Z. Wang, X. Li, Y. Chen, Adaptive time integration and non-reflecting boundary conditions in high-speed impact simulations, Int. J. Impact Eng. 157 (2021) 103966.

DOI: 10.1016/j.ijimpeng.2021.103966

Google Scholar

[25] D. Prall, R.S. Lakes, Properties of a chiral honeycomb with a Poisson's ratio of –1, Int. J. Mech. Sci. 39(3) (1997) 305–314.

DOI: 10.1016/S0020-7403(96)00025-2

Google Scholar

[26] A. Spadoni, M. Ruzzene, S. Gonella, Structural and wave propagation properties of chiral cellular materials, J. Mech. Phys. Solids 53(4) (2005) 784–807.

DOI: 10.1016/j.jmps.2004.08.004

Google Scholar

[27] S.A. Khan, M.F. Khan, Numerical simulation of high velocity impact on aluminum panels using different material models, J. Mech. Eng. Sci. 14(3) (2020) 6752–6765.

Google Scholar

[28] P. Sharma, M. Singh, N. Singh, Quasi-brittle fracture of aluminium alloy 2014 under ballistic impact, Procedia Eng. 173 (2017) 206–213.

DOI: 10.1016/j.proeng.2016.12.142

Google Scholar
