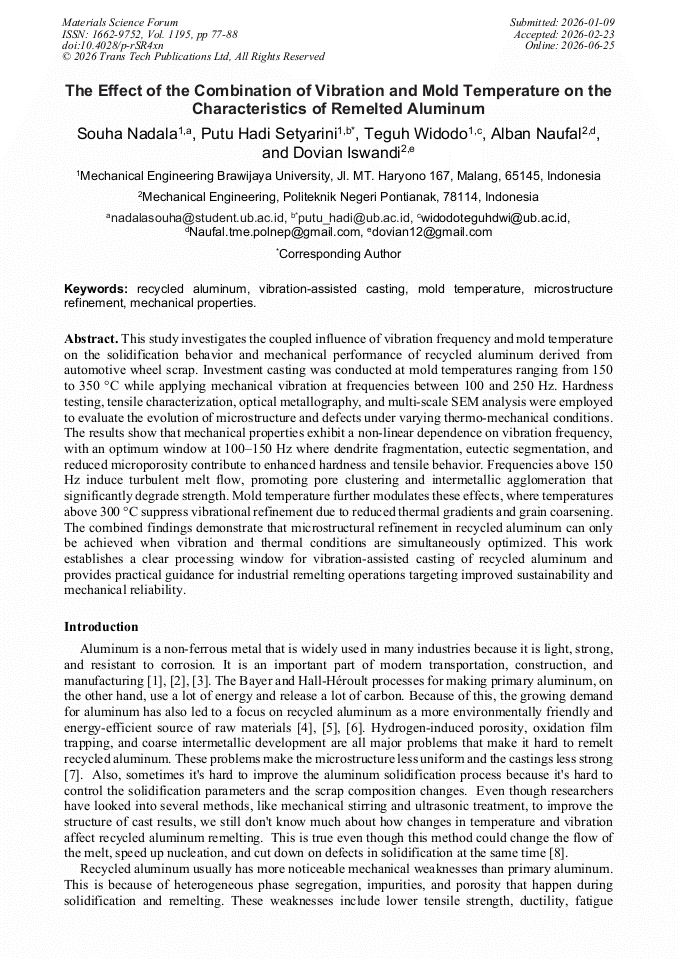

The Effect of the Combination of Vibration and Mold Temperature on the Characteristics of Remelted Aluminum

Abstract:

This study investigates the coupled influence of vibration frequency and mold temperature on the solidification behavior and mechanical performance of recycled aluminum derived from automotive wheel scrap. Investment casting was conducted at mold temperatures ranging from 150 to 350 °C while applying mechanical vibration at frequencies between 100 and 250 Hz. Hardness testing, tensile characterization, optical metallography, and multi-scale SEM analysis were employed to evaluate the evolution of microstructure and defects under varying thermo-mechanical conditions. The results show that mechanical properties exhibit a non-linear dependence on vibration frequency, with an optimum window at 100–150 Hz where dendrite fragmentation, eutectic segmentation, and reduced microporosity contribute to enhanced hardness and tensile behavior. Frequencies above 150 Hz induce turbulent melt flow, promoting pore clustering and intermetallic agglomeration that significantly degrade strength. Mold temperature further modulates these effects, where temperatures above 300 °C suppress vibrational refinement due to reduced thermal gradients and grain coarsening. The combined findings demonstrate that microstructural refinement in recycled aluminum can only be achieved when vibration and thermal conditions are simultaneously optimized. This work establishes a clear processing window for vibration-assisted casting of recycled aluminum and provides practical guidance for industrial remelting operations targeting improved sustainability and mechanical reliability.

• Periodical: Materials Science Forum (Volume 1195)
• Pages: 77-88
• DOI: https://doi.org/10.4028/p-rSR4xn
• Online since: June 2026
• Authors: Souha Nadala, Putu Hadi Setyarini*, Teguh Widodo, Alban Naufal, Dovian Iswandi
• Keywords: Mechanical Properties, Microstructure Refinement, Mold Temperature, Recycled Aluminum, Vibration-Assisted Casting

References

[1] R. Montanari, A. Palombi, M. Richetta, and A. Varone, "Additive Manufacturing of Aluminum Alloys for Aeronautic Applications: Advantages and Problems," Metals (Basel)., vol. 13, no. 4, 2023.

DOI: 10.3390/met13040716

[2] Z. Xie et al., "Mechanical and Corrosion Properties of AA2024 Aluminum Alloy with Multimodal Gradient Structures," Metals (Basel)., vol. 15, no. 2, p.1–24, 2025.

DOI: 10.3390/met15020177

[3] H. Page, C. A. Griffiths, and A. J. Thomas, "Economic and Environmental Analysis of Aluminium Recycling from Retired Commercial Aircraft," p.1–23, 2025.

DOI: 10.3390/su17198556

[4] T. Peng, L. Ren, E. Du, X. Ou, and X. Yan, "Life Cycle Energy Consumption and Greenhouse Gas Emissions Analysis of Primary and Recycled Aluminum in China," Processes, vol. 10, no. 11, Nov. 2022.

DOI: 10.3390/pr10112299

[5] T. H. E. Way et al., "Ways to reduce emissions from aluminum electrolysis Oxygen evolving inert anodes," p.1–9.

[6] S. Al-Alimi et al., "Recycling aluminium for sustainable development: A review of different processing technologies in green manufacturing," Results Eng., vol. 23, no. July, p.102566, 2024.

DOI: 10.1016/j.rineng.2024.102566

[7] O. Asghar, M. Franceschi, P. Ferro, and F. Bonollo, "Development of New Aluminium Alloys for Future Automotive Structural Components With Less Criticality and Higher Casting Processability," Int. J. Met., no. July, 2025.

DOI: 10.1007/s40962-025-01715-3

[8] S. Seifeddine, M. Tiryakio, T. Bogdanoff, and B. Johan, "Materials Characterization On the secondary cracks during crack propagation in an Al-Si-Cu-Mg alloy : An in-situ study," vol. 203, no. June, 2023.

DOI: 10.1016/j.matchar.2023.113046

[9] D. Raabe et al., "Making sustainable aluminum by recycling scrap: The science of 'dirty' alloys," Prog. Mater. Sci., vol. 128, p.0–150, 2022.

DOI: 10.1016/j.pmatsci.2022.100947

[10] D.-I. hc Bernd Friedrich, "Mapping Study on Aluminium Melt Purification from Post Consumer Scrap," p.1–196, 2023, [Online]. Available: http://www.mimi-tech.com.

[11] M. Waqas et al., "Influence of Vibration-Assisted Dynamic Solidification on Microstructure and Mechanical Properties of Permanent Mold Cast Aluminum Alloy 2024 with Conformal Cooling," p.1–26, 2025.

DOI: 10.3390/jmmp9120416

[12] M. Dada and P. Popoola, Recent advances in joining technologies of aluminum alloys: a review, vol. 4, no. 1. Springer International Publishing, 2024.

DOI: 10.1007/s43939-024-00155-w

[13] A. Li, Z. Wang, and Z. Sun, "Effect of Ultrasonic Vibration on Microstructure and Fluidity of Aluminum Alloy," Materials (Basel)., vol. 16, no. 11, 2023.

DOI: 10.3390/ma16114110

[14] H. Nunes, O. Emadinia, R. Soares, and M. F. Vieira, "Adding Value to Secondary Aluminum Casting Alloys : A Review on Trends and Achievements," p.1–24, 2023.

DOI: 10.3390/ma16030895

[15] S. Ko and S. Kim, "A Simulation Study on Evaluating the Influence of Impurities on Hydrogen Production in Geological Carbon Dioxide Storage," p.1–19, 2023.

[16] Y. Li et al., "Effects of Al, Y, and Zn Additions on the Microstructure and Mechanical Properties of Mg−3Li Alloy," Adv. Eng. Mater., vol. 24, no. 8, 2022.

DOI: 10.1002/adem.202101502

[17] R. Pastirčák, M. Brůna, M. Matejka, and D. Bolibruchová, "Effect of Input Parameters on the Structure and Properties of Castings Obtained via Crystallization under Pressure," Metals (Basel)., vol. 13, no. 8, 2023.

DOI: 10.3390/met13081424

[18] V. Buch, "Effect of vibration casting on the properties and microstructure of aluminium alloy castings," vol. 10, no. October, p.1–7, 2023.

DOI: 10.1142/S2737599423400108

[19] A. Alloy, "Effect of Mechanical Vibration on the Mechanical Properties and Solidification Feeding in Low-Pressure Sand Casting of," 2022.

[20] S. Varun and T. K. Chavan, "Materials Today : Proceedings Influence of mold vibration on microstructural behaviour and mechanical properties of LM25 aluminium alloy using gravity die casting process," Mater. Today Proc., vol. 46, p.4412–4418, 2021.

DOI: 10.1016/j.matpr.2020.09.671

[21] L. Zhang, S. Wang, H. Wang, J. Wang, and W. Bian, "Materials Science & Engineering A Mechanical properties and microstructure revolution of vibration assisted wire arc additive manufacturing 2319 aluminum alloy," Mater. Sci. Eng. A, vol. 885, no. 26, p.145634, 2023.

DOI: 10.1016/j.msea.2023.145634

[22] J. Pre-proof et al., "concepts Influence of secondary aluminum content on casting and weldability of high pressure die cast materials for sustainable automotive body concepts," J. Adv. Join. Process., p.100361, 2025.

DOI: 10.1016/j.jajp.2025.100361

[23] A. G. Borisov, A. Nuradynov, and V. U. Sheigam, "Impact of Cooling Rate on the Results of Vibration Treatment of the Aluminum Casting," J. Met. Mater. Res., vol. 6, no. 1, p.25–30, 2023.

DOI: 10.30564/jmmr.v6i1.5640

[24] Q. He et al., "Microstructural characterization of recycled Al–Mg–Si-based alloys upon the synergistic effect of ultrasonic technology (UT) and novel refiners," J. Mater. Res. Technol., vol. 31, no. May, p.481–495, 2024.

DOI: 10.1016/j.jmrt.2024.06.014

[25] G. Scampone, R. Pirovano, S. Mascetti, and G. Timelli, "Experimental and numerical investigations of oxide-related defects in Al alloy gravity die castings," Int. J. Adv. Manuf. Technol., vol. 117, no. 5–6, p.1765–1780, 2021.

DOI: 10.1007/s00170-021-07680-5

[26] H. jung Kang et al., "Effects of gate system design on pore defects and mechanical properties of pore-free die-cast Al-Si-Cu alloy," Mater. Today Commun., vol. 31, no. May, p.103673, 2022.

DOI: 10.1016/j.mtcomm.2022.103673

[27] M. A. El-Sayed, K. Essa, and H. Hassanin, "Influence of Bifilm Defects Generated during Mold Filling on the Tensile Properties of Al–Si–Mg Cast Alloys," Metals (Basel)., vol. 12, no. 1, p.1–15, 2022.

DOI: 10.3390/met12010160

[28] Q. Zhang, T. Liljenfors, S. Jonsson, and A. E. W. Jarfors, "On the application of reduced pressure test for the prediction of ductility of 46000 alloy: Role of pore's morphology and distribution," J. Mater. Res. Technol., vol. 31, no. May, p.927–934, 2024.

DOI: 10.1016/j.jmrt.2024.06.128

[29] G. Zhao, J. Zhang, and X. Yang, "An Analysis of the Mapping Relationship between Microstructure and Solidification Parameters during Aluminum Fused Coating," Metals (Basel)., vol. 13, no. 9, 2023.

DOI: 10.3390/met13091594

[30] L. Širanec, D. Bolibruchová, and M. Chalupová, "Mold Temperature and Its Effect on Selected Properties of Cast AlSi5Cu2Mg Alloy," Arch. Foundry Eng., vol. 22, no. 2, p.57–62, 2022.

DOI: 10.24425/afe.2022.140225

[31] A. Rahman, "A Comprehensive Study of Cooling Rate Effects on Diffusion , Microstructural Evolution , and Characterization of Aluminum Alloys," 2025.

[32] W. Wu et al., "Synergistic Effects of Nd Content and Cooling Rate on the Organization and Properties of Al-Nd Alloys," Crystals, vol. 15, no. 1, 2025.

DOI: 10.3390/cryst15010040

[33] Y. Zheng et al., "Effect of post heat treatment on microstructure, mechanical property and corrosion behavior of AlSi10Mg alloy fabricated by selective laser melting," Prog. Nat. Sci. Mater. Int., vol. 34, no. 1, p.89–101, 2024.

DOI: 10.1016/j.pnsc.2024.02.001

[34] V. K. Amith, S. S. Baloor, A. Polishetty, G. Bolar, and A. N. Govindhan, "Heat treatment and its effect on machining induced surface roughness of cast and additive manufactured AlSi10Mg," Sci. Rep., vol. 15, no. 1, p.1–17, 2025.

DOI: 10.1038/s41598-025-10732-5

[35] R. F. Jaime, H. Puga, M. Prokic, C. Söderhjelm, and D. Apelian, "Fundamentals of Ultrasonic Treatment of Aluminum Alloys," Int. J. Met., vol. 18, no. 4, p.2783–2807, 2024.

DOI: 10.1007/s40962-023-01253-w

[36] X. He et al., "Microstructure and Hot Tearing Sensitivity Simulation and Parameters Optimization for the Centrifugal Casting of Al-Cu Alloy," Comput. Mater. Contin., vol. 80, no. 2, p.2873–2895, 2024.

DOI: 10.32604/cmc.2024.052571

[37] Y. Cao et al., "In-situ study on grain refinement mechanism of Al-13Cu alloys modified by high entropy alloy particles and ultrasonic treatment," Ultrason. Sonochem., vol. 121, no. May, p.107532, 2025.

DOI: 10.1016/j.ultsonch.2025.107532

[38] X. Zhang et al., "Research status and prospect of grain refinement in aluminum alloy," J. Mater. Res. Technol., vol. 34, no. November 2024, p.1880–1893, 2025, doi: 10.1016/j.jmrt. 2024.12.205.

[39] W. Zhao, F. Chen, W. Ma, and S. Cao, "Effect of ultrasonic power on microstructure and mechanical properties of WAAM 4043 aluminum alloys under ultrasonic-magnetic composite field," J. Mater. Res. Technol., vol. 38, no. July, p.4455–4468, 2025.

DOI: 10.1016/j.jmrt.2025.08.223

[40] S. O. Al-Mashikhi, N. M. Raffi, R. M. M. Al-Maashani, A. M. A. Al-Zawamri, A. M. Al-Shanfari, and M. Al-Rawas, "Effect of Molding Temperature on Mechanical Properties of Pure Aluminum Sand Casting," Eur. J. Theor. Appl. Sci., vol. 1, no. 3, p.160–166, 2023.

DOI: 10.59324/ejtas.2023.1(3).17

[41] H. Cao et al., "Study on the Influence of Injection Velocity on the Evolution of Hole Defects in Die-Cast Aluminum Alloy," Materials (Basel)., vol. 17, no. 20, 2024.

DOI: 10.3390/ma17204990

[42] A. Bjurenstedt, E. Ghassemali, S. Seifeddine, and A. K. Dahle, "The effect of Fe-rich intermetallics on crack initiation in cast aluminium: An in-situ tensile study," Mater. Sci. Eng. A, vol. 756, no. July 2018, p.502–507, 2019.

DOI: 10.1016/j.msea.2018.07.044
