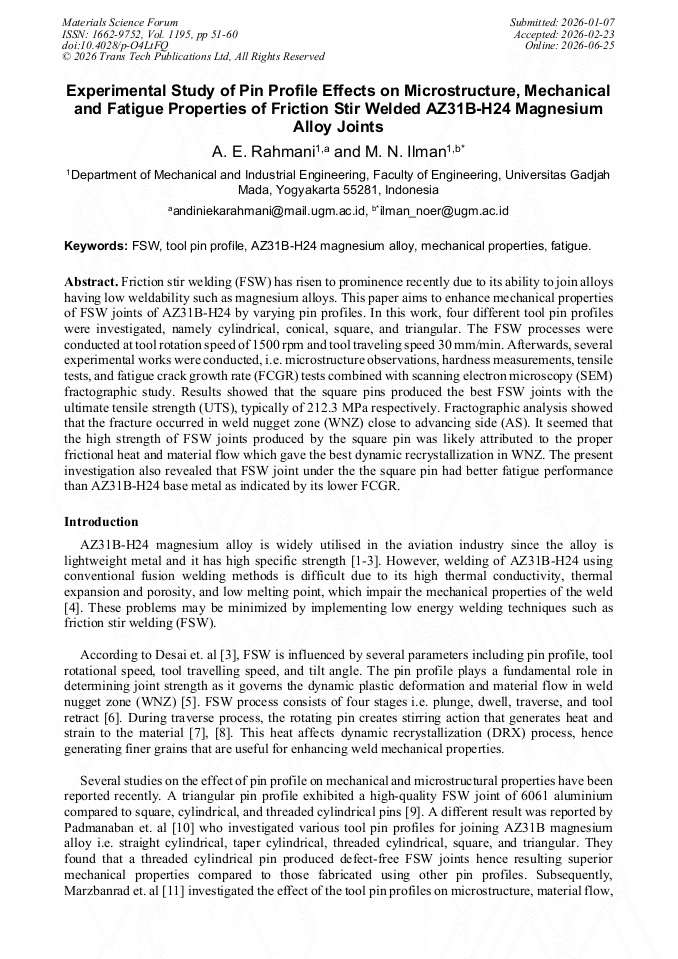

Experimental Study of Pin Profile Effects on Microstructure, Mechanical and Fatigue Properties of Friction Stir Welded AZ31B-H24 Magnesium Alloy Joints

Abstract:

Friction stir welding (FSW) has risen to prominence recently due to its ability to join alloys having low weldability such as magnesium alloys. This paper aims to enhance mechanical properties of FSW joints of AZ31B-H24 by varying pin profiles. In this work, four different tool pin profiles were investigated, namely cylindrical, conical, square, and triangular. The FSW processes were conducted at tool rotation speed of 1500 rpm and tool traveling speed 30 mm/min. Afterwards, several experimental works were conducted, i.e. microstructure observations, hardness measurements, tensile tests, and fatigue crack growth rate (FCGR) tests combined with scanning electron microscopy (SEM) fractographic study. Results showed that the square pins produced the best FSW joints with the ultimate tensile strength (UTS), typically of 212.3 MPa respectively. Fractographic analysis showed that the fracture occurred in weld nugget zone (WNZ) close to advancing side (AS). It seemed that the high strength of FSW joints produced by the square pin was likely attributed to the proper frictional heat and material flow which gave the best dynamic recrystallization in WNZ. The present investigation also revealed that FSW joint under the the square pin had better fatigue performance than AZ31B-H24 base metal as indicated by its lower FCGR.

• Periodical: Materials Science Forum (Volume 1195)
• Pages: 51-60
• DOI: https://doi.org/10.4028/p-O4LtFQ
• Online since: June 2026
• Authors: A.E. Rahmani*, M.N. Ilman
• Keywords: AZ31B-H24 Magnesium Alloy, Fatigue, FSW, Mechanical Properties, Tool Pin Profile

References

[1] T. Shen et al., "The improvement on mechanical anisotropy of AZ31 magnesium alloy sheets by multi cross-rolling process," J Alloys Compd, vol. 963, Nov. 2023.

DOI: 10.1016/j.jallcom.2023.171252

[2] J. Li et al., "Microstructure and mechanical property of multi-pass low-strain rolled Mg-Al-Zn-Mn alloy sheet," J Alloys Compd, vol. 835, Sep. 2020.

DOI: 10.1016/j.jallcom.2020.155228

[3] A. M. Desai, B. C. Khatri, V. Patel, and H. Rana, "Friction stir welding of AZ31 magnesium alloy: A review," in Materials Today: Proceedings, Elsevier Ltd, 2020, p.6576–6584.

DOI: 10.1016/j.matpr.2021.03.082

[4] W. Xunhong and W. Kuaishe, "Microstructure and properties of friction stir butt-welded AZ31 magnesium alloy," Materials Science and Engineering: A, vol. 431, no. 1–2, p.114–117, Sep. 2006.

DOI: 10.1016/j.msea.2006.05.128

[5] R. S. Mishra and Z. Y. Ma, "Friction stir welding and processing," Materials Science and Engineering: R: Reports, vol. 50, no. 1–2, p.1–78, Aug. 2005.

DOI: 10.1016/j.mser.2005.07.001

[6] M. Mijajlovic and D. Milcic, "Analytical Model for Estimating the Amount of Heat Generated During Friction Stir Welding: Application on Plates Made of Aluminium Alloy 2024 T351," in Welding Processes, InTech, 2012.

DOI: 10.5772/53563

[7] M. Mehta, A. De, and T. DebRoy, "Material adhesion and stresses on friction stir welding tool pins," Science and Technology of Welding and Joining, vol. 19, no. 6, p.534–540, Aug. 2014.

DOI: 10.1179/1362171814Y.0000000221

[8] K. Elangovan and V. Balasubramanian, "Influences of tool pin profile and tool shoulder diameter on the formation of friction stir processing zone in AA6061 aluminium alloy," Mater Des, vol. 29, no. 2, p.362–373, Jan. 2008.

DOI: 10.1016/j.matdes.2007.01.030

[9] P. A. Colegrove and H. R. Shercliff, "Development of Trivex friction stir welding tool Part 1 – two-dimensional flow modelling and experimental validation," Science and Technology of Welding and Joining, vol. 9, no. 4, p.345–351, Aug. 2004.

DOI: 10.1179/136217104225021670

[10] G. Padmanaban and V. Balasubramanian, "Selection of FSW tool pin profile, shoulder diameter and material for joining AZ31B magnesium alloy - An experimental approach," Mater Des, vol. 30, no. 7, p.2647–2656, Aug. 2009.

DOI: 10.1016/j.matdes.2008.10.021

[11] J. Marzbanrad, M. Akbari, P. Asadi, and S. Safaee, "Characterization of the Influence of Tool Pin Profile on Microstructural and Mechanical Properties of Friction Stir Welding," Metallurgical and Materials Transactions B: Process Metallurgy and Materials Processing Science, vol. 45, no. 5, p.1887–1894, Oct. 2014.

DOI: 10.1007/s11663-014-0089-9

[12] M. Yuqing, K. Liming, L. Fencheng, C. Yuhua, and X. Li, "Effect of tool pin-tip profiles on material flow and mechanical properties of friction stir welding thick AA7075-T6 alloy joints," International Journal of Advanced Manufacturing Technology, vol. 88, no. 1–4, p.949–960, Jan. 2017.

DOI: 10.1007/s00170-016-8882-z

[13] Ö. Ekinci and A. İmak, "Effect of Tool Tilt Angle on The Mechanical Properties of Friction Stir lap Welds of AZ31B Magnesium Alloy Sheets," Türk Doğa ve Fen Dergisi, vol. 13, no. 3, p.50–56, Sep. 2024.

DOI: 10.46810/tdfd.1481217

[14] J. C. Tan and M. J. Tan, "Dynamic continuous recrystallization characteristics in two stage deformation of Mg–3Al–1Zn alloy sheet," Materials Science and Engineering: A, vol. 339, no. 1–2, p.124–132, Jan. 2003.

DOI: 10.1016/S0921-5093(02)00096-5

[16] Y. Chen et al., "Effect of texture and banded structure on the crack initiation mechanism of a friction stir welded magnesium alloy joint in very high cycle fatigue regime," Int J Fatigue, vol. 136, Jul. 2020.

DOI: 10.1016/j.ijfatigue.2020.105617

[17] M. Prihajatno, M. N. Ilman, R. A. Sriwijaya, M. R. Muslih, and R. Apriansyah, "Tensile and fatigue properties of friction stir AZ31B-H24 magnesium alloy welded joints under the influences of pin geometry and tool rotation rate," Journal of Advanced Joining Processes, vol. 9, p.100202, Jun. 2024.

DOI: 10.1016/j.jajp.2024.100202

[18] D. Broek, Elementary engineering fracture mechanics. Springer Science & Business Media, 2012.
