The Effect of α-Fe2O3 and Fe3O4 as Transport Layer on the Photovoltaic Performance of Perovskite-Based Solar Cells

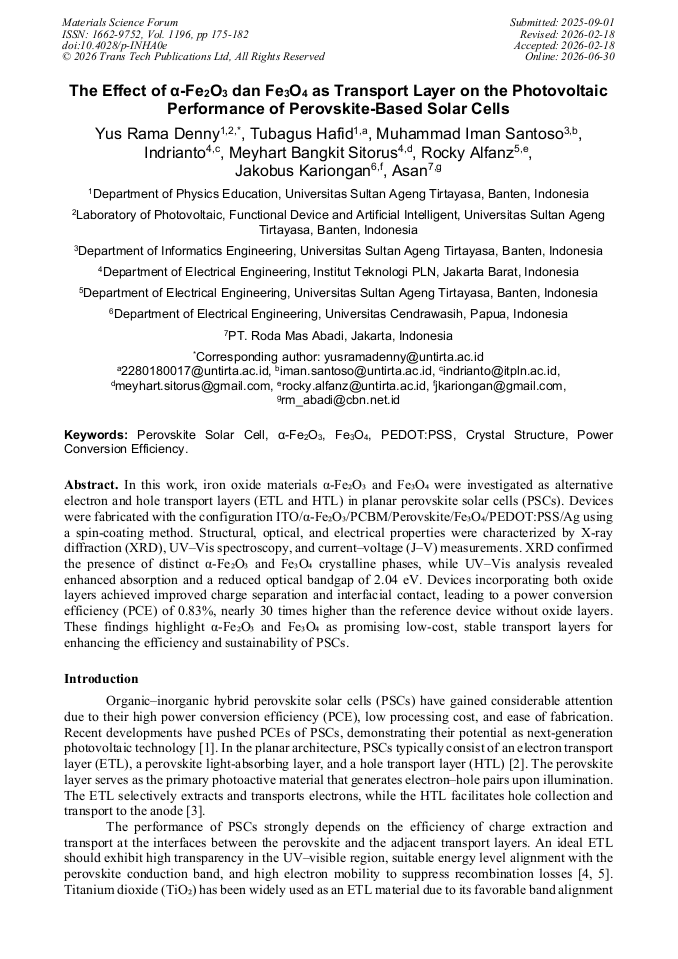

Article Preview

Abstract:

In this work, iron oxide materials α-Fe2O3 and Fe3O4 were investigated as alternative electron and hole transport layers (ETL and HTL) in planar perovskite solar cells (PSCs). Devices were fabricated with the configuration ITO/α-Fe2O3/PCBM/Perovskite/Fe3O4/PEDOT:PSS/Ag using a spin-coating method. Structural, optical, and electrical properties were characterized by X-ray diffraction (XRD), UV–Vis spectroscopy, and current–voltage (J–V) measurements. XRD confirmed the presence of distinct α-Fe2O3 and Fe3O4 crystalline phases, while UV–Vis analysis revealed enhanced absorption and a reduced optical bandgap of 2.04 eV. Devices incorporating both oxide layers achieved improved charge separation and interfacial contact, leading to a power conversion efficiency (PCE) of 0.83%, nearly 30 times higher than the reference device without oxide layers. These findings highlight α-Fe2O3 and Fe3O4 as promising low-cost, stable transport layers for enhancing the efficiency and sustainability of PSCs.

You might also be interested in these eBooks
Metallic Materials, Composites, Polymers and Functional Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1196)

Pages:

175-182

DOI:

https://doi.org/10.4028/p-INHA0e

Citation:

Cite this paper

Online since:

June 2026

Authors:

Yus Rama Denny*, Tubagus Hafid, Muhammad Iman Santoso, Indrianto Indrianto, Meyhart Bangkit Sitorus, Rocky Alfanz, Jakobus Kariongan, Asan Asan

Keywords:

Crystal Structure, Fe3O4, PEDOT:PSS, Perovskite Solar Cell, Power Conversion Efficiency, α-Fe2O3

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J. Zhao, Z. Li, M. Wang, Q. Wang, and Z. Jin, 'Exploring the film growth in perovskite solar cells', J. Mater. Chem. A, vol. 9, no. 10, p.6029–6049, Mar. 2021.

DOI: 10.1039/D0TA11448K

Google Scholar

[2] K. Fu, A. Ho-Baillie, H. K. Mulmudi, and P. T. T. Trang, Perovskite Solar Cells: Technology and Practices. Apple Academic Press, Incorporated, 2019.

DOI: 10.1201/9780429469749

Google Scholar

[3] A.K. Jena, A. Kulkarni, and T. Miyasaka, 'Halide Perovskite Photovoltaics: Background, Status, and Future Prospects', Chem. Rev., vol. 119, no. 5, p.3036–3103, Mar. 2019.

DOI: 10.1021/acs.chemrev.8b00539

Google Scholar

[4] P. Roy, N. Kumar Sinha, S. Tiwari, and A. Khare, 'A review on perovskite solar cells: Evolution of architecture, fabrication techniques, commercialization issues and status', Sol. Energy, vol. 198, p.665–688, Mar. 2020.

DOI: 10.1016/j.solener.2020.01.080

Google Scholar

[5] K. Valadi, S. Gharibi, R. Taheri-Ledari, S. Akin, A. Maleki, and A. E. Shalan, 'Metal oxide electron transport materials for perovskite solar cells: a review', Environ. Chem. Lett., vol. 19, no. 3, p.2185–2207, June 2021.

DOI: 10.1007/s10311-020-01171-x

Google Scholar

[6] Q. Hou et al., 'Synergistic Hematite-Fullerene Electron-Extracting Layers for Improved Efficiency and Stability in Perovskite Solar Cells', ChemElectroChem, vol. 5, no. 5, p.726–731, 2018.

DOI: 10.1002/celc.201701054

Google Scholar

[7] S. Wang et al., 'A low-temperature carbon electrode with good perovskite compatibility and high flexibility in carbon based perovskite solar cells', Chem. Commun., vol. 55, no. 19, p.2765–2768, Feb. 2019.

DOI: 10.1039/C8CC09905G

Google Scholar

[8] F. Ansari, M. Salavati-Niasari, O. Amiri, N. Mir, B. Abdollahi Nejand, and V. Ahmadi, 'Magnetite as Inorganic Hole Transport Material for Lead Halide Perovskite-Based Solar Cells with Enhanced Stability', Ind. Eng. Chem. Res., vol. 59, no. 2, p.743–750, Jan. 2020.

DOI: 10.1021/acs.iecr.9b05173

Google Scholar

[9] A. A. Qureshi, S. Javed, M. A. Akram, L. Schmidt-Mende, and A. Fakharuddin, 'Solvent-Assisted Crystallization of an α-Fe2O3 Electron Transport Layer for Efficient and Stable Perovskite Solar Cells Featuring Negligible Hysteresis', ACS Omega, vol. 8, no. 20, p.18106–18115, May 2023.

DOI: 10.1021/acsomega.3c01405

Google Scholar

[10] Y. Guo et al., 'Ni-doped α-Fe2O3 as electron transporting material for planar heterojunction perovskite solar cells with improved efficiency, reduced hysteresis and ultraviolet stability', Nano Energy, vol. 38, p.193–200, Aug. 2017.

DOI: 10.1016/j.nanoen.2017.05.026

Google Scholar

[11] A.A. Qureshi, E.R. Schütz, S. Javed, L. Schmidt-Mende, and A. Fakharuddin, 'An Fe3O4 based hole transport bilayer for efficient and stable perovskite solar cells', Energy Adv., vol. 2, no. 11, p.1905–1914, Nov. 2023.

DOI: 10.1039/D3YA00014A

Google Scholar

[12] B. Gu et al., 'Fabrication of UV-Stable Perovskite Solar Cells with Compact Fe2O3 Electron Transport Layer by FeCl3 Solution and Fe3O4 Nanoparticles', Nanomaterials, vol. 12, no. 24, p.4415, Jan. 2022.

DOI: 10.3390/nano12244415

Google Scholar

[13] M.A. Raman, M. F. Rahman, and A. B. M. Ismail, 'Band Gap Engineering of Spin-Coated α-Fe2O3 for Solar Water Splitting Utilizing a Facile Zinc Doping Route', Adv. Energy Convers. Mater., p.272–280, Oct. 2024.

DOI: 10.37256/aecm.5220245492

Google Scholar

[14] G.J. Matt, N.S. Sariciftci, and T. Fromherz, 'Anomalous charge transport behavior of Fullerene based diodes', Appl. Phys. Lett., vol. 84, no. 9, p.1570–1572, Mar. 2004.

DOI: 10.1063/1.1651642

Google Scholar

[15] W.-J. Yin, T. Shi, and Y. Yan, 'Unusual defect physics in CH3NH3PbI3 perovskite solar cell absorber', Appl. Phys. Lett., vol. 104, no. 6, p.063903, Feb. 2014.

DOI: 10.1063/1.4864778

Google Scholar
