Properties of Nd-Fe-B Magnetic Powder Prepared by Reduction-Diffusion Process Using a Spray-Dried Precursor

Tae Suk Jang; Dae Hoon Lee; Chul Jin Choi; Byoung Kee Kim

doi:10.4028/www.scientific.net/MSF.449-452.1057

Paper Titles

Magnetotransport in Ferromagnetic (Ga,Mn)N Epitaxial Films
p.1041

Synthesis and Crystal Structure of Hexagonal DyMnO₃
p.1045

Influence of Annealing Temperature on Magnetic Properties in Co-Based Amorphous Ribbons
p.1049

Structure Dependent Oxidation of Al Thin Films for MTJ Tunnel Barrier
p.1053

Properties of Nd-Fe-B Magnetic Powder Prepared by Reduction-Diffusion Process Using a Spray-Dried Precursor
p.1057

Magnetotransport Properties in Semimetallic Bismuth Thin Films
p.1061

Origin of Thermal Stability of IrMn Based Specular Spin Valve Type GMR Multilayer
p.1065

Planar Hall Effect of GaMnAs
p.1069

Measurements of Magnetic Compton Profiles of Amorphous Fe-Tb Thin Films Using Circularly Polarized X-Rays
p.1073

HomeMaterials Science ForumMaterials Science Forum Vols. 449-452Properties of Nd-Fe-B Magnetic Powder Prepared by...

Properties of Nd-Fe-B Magnetic Powder Prepared by Reduction-Diffusion Process Using a Spray-Dried Precursor

Abstract:

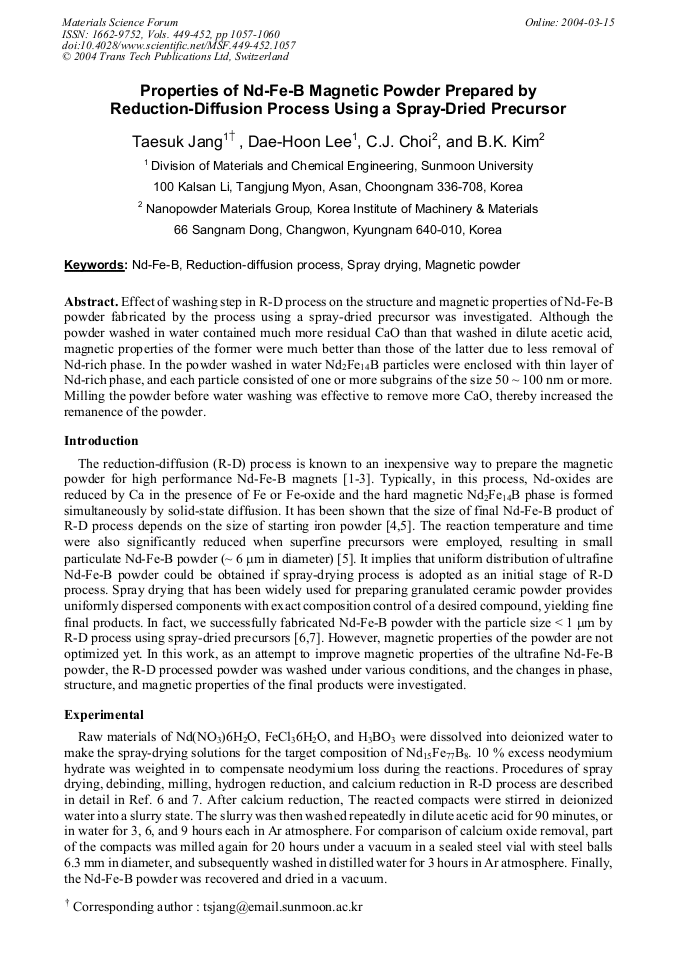

Effect of washing step in R-D process on the structure and magnetic properties of Nd-Fe-B powder fabricated by the process using a spray-dried precursor was investigated. Although the powder washed in water contained much more residual CaO than that washed in dilute acetic acid, magnetic properties of the former were much better than those of the latter due to less removal of Nd-rich phase. In the powder washed in water Nd2Fe14B particles were enclosed with thin layer of Nd-rich phase, and each particle consisted of one or more subgrains of the size 50 ~ 100 nm or more. Milling the powder before water washing was effective to remove more CaO, thereby increased the remanence of the powder.
