Synthesis, Magnetic and Mössbauer Studies of Mechanically Alloyed Fe0.63Si0.37 Alloys

Abstract:

Article Preview

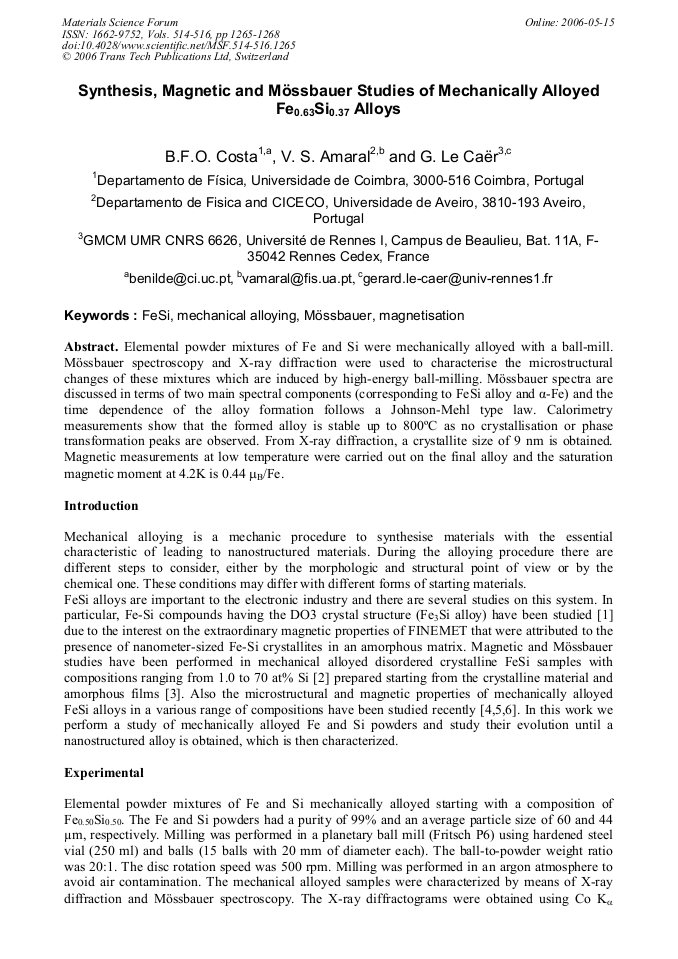

Elemental powder mixtures of Fe and Si were mechanically alloyed with a ball-mill. Mössbauer spectroscopy and X-ray diffraction were used to characterise the microstructural changes of these mixtures which are induced by high-energy ball-milling. Mössbauer spectra are discussed in terms of two main spectral components (corresponding to FeSi alloy and α-Fe) and the time dependence of the alloy formation follows a Johnson-Mehl type law. Calorimetry measurements show that the formed alloy is stable up to 800°C as no crystallisation or phase transformation peaks are observed. From X-ray diffraction, a crystallite size of 9 nm is obtained. Magnetic measurements at low temperature were carried out on the final alloy and the saturation magnetic moment at 4.2K is 0.44 μB/Fe.

Info:

Periodical:

Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho

Pages:

1265-1268

DOI:

10.4028/www.scientific.net/MSF.514-516.1265

Citation:

B. F.O. Costa et al., "Synthesis, Magnetic and Mössbauer Studies of Mechanically Alloyed Fe0.63Si0.37 Alloys", Materials Science Forum, Vols. 514-516, pp. 1265-1268, 2006

Online since:

May 2006

Export:

Price:

$35.00

[1] G. Rixecker, P. Schaaf and U. Gonser,. Phys. Stat. Sol (a), 139 (1993), 309-320.

[2] E. P. Elsukov et al., J. Phys. Condens. Matter 4 (1992) 7597-7606.

[3] Ph. Mangin and G. Marchal, J. Appl. Phys. 49 (1978) 1709-1711.

[4] T.J. Zhou, Z. Yu and Y.W. Du, Appl. Phys. A 70 (2000) 75-78.

[5] E. P. Yelsukov et al., J. Mag. Magn. Mater. 214 (2000) 258-268.

[6] Li Tie, Li Yu-zhi and Zhang Yu-heng, J. Phys: Condens. Matter 9 (1997) 1381-1388.

DOI: 10.1088/0953-8984/9/6/021

[7] G. Williamson and W.H. Hall, Acta Metall. 1 (1952) 22-31.

[8] G. Le Caër and J.M. Dubois, J. Phys. E, 12 (1979) 1083-1090.

[9] R. W. Cahn, Physical Metallurgy (North-Holland Publishing Company, 1970) 0 10 20 30 40 50 60 0 5 10 15 20 25 30 35 0, 0 0, 2 0, 4 0, 6 0, 8 31 32 33 34 M(Am2kg-1) 1/µ0H(T-1) M(Am 2kg -1) µ0H(T) T=4. 2 K Figure 5. Magnetisation as a function of magnetic field at T=4. 2K for the final sample. Inset: Determination of saturation from high field limit.

In order to see related information, you need to Login.
