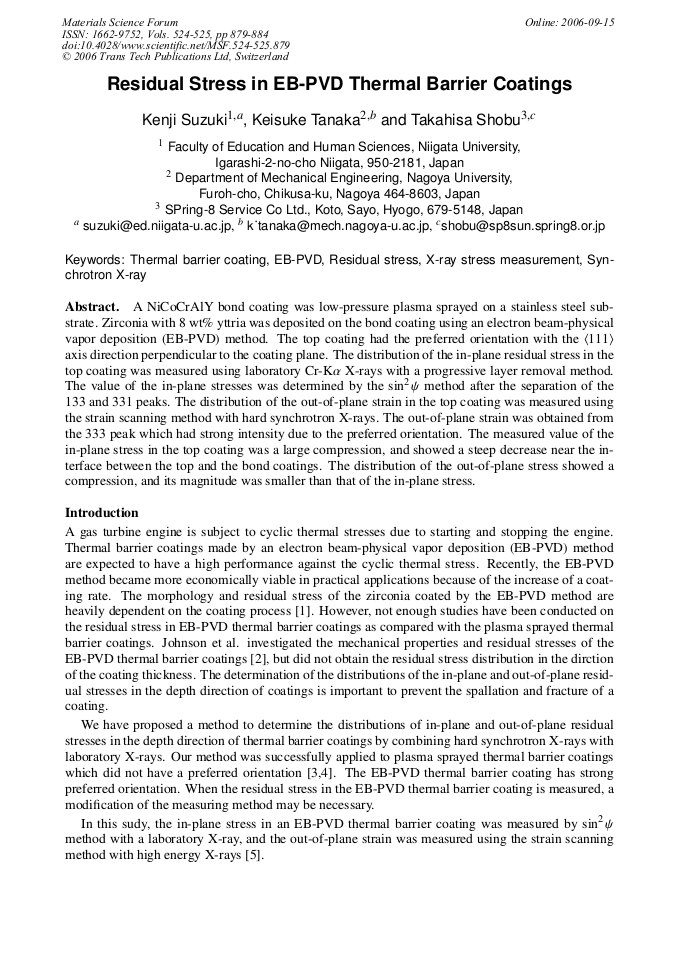

Residual Stress in EB-PVD Thermal Barrier Coatings

Abstract:

A NiCoCrAlY bond coating was low-pressure plasma sprayed on a stainless steel sub- strate. Zirconia with 8 wt% yttria was deposited on the bond coating using an electron beam-physical vapor deposition (EB-PVD) method. The top coating had the preferred orientation with the h111i axis direction perpendicular to the coating plane. The distribution of the in-plane residual stress in the top coating was measured using laboratory Cr-K X-rays with a progressive layer removal method. The value of the in-plane stresses was determined by the sin2 method after the separation of the 133 and 331 peaks. The distribution of the out-of-plane strain in the top coating was measured using the strain scanning method with hard synchrotron X-rays. The out-of-plane strain was obtained from the 333 peak which had strong intensity due to the preferred orientation. The measured value of the in-plane stress in the top coating was a large compression, and showed a steep decrease near the in- terface between the top and the bond coatings. The distribution of the out-of-plane stress showed a compression, and its magnitude was smaller than that of the in-plane stress.

• Periodical: Materials Science Forum (Volumes 524-525)
• Pages: 879-884
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.524-525.879
• Online since: September 2006
• Authors: Kenji Suzuki, Keisuke Tanaka, Takahisa Shobu
• Keywords: EB-PVD, Residual Stress, Synchrotron X-Ray, Thermal Barrier Coating (TBC), X-Ray Stress Measurement

References

[1] N. Yamaguchi, K. Wada, K. Kimura and H. Matsubara: J. Ceramic Soc. Japan, Vol. 111 (2003), p.883.

[2] C.A. Johnson, J.A. Ruud, R. Bruce and D. Wortman: Surface and Coating Technology, Vol. 108-109 (1998), p.80.

[3] K. Suzuki and K. Tanaka: Textures and Microstructures, Vol. 35, 3/4 (2003), p.207.

[4] K. Suzuki and K. Tanaka: Mater. Sci. Forum, Vol. 490-491 (2005), p.631.

[5] P.J. Withers: Analysis of residual stress by diffraction using neutron and synchrotron radiation, ed. by Fitzpatrick, M.E. and Lodini, A., Taylor & Francis (2003) , p.170.

DOI: 10.1201/9780203608999

[6] R.P. Ingel and D. Lewis, J. Am. Ceram., Vol. 71 (1988), p.265.

[7] W.C. Oliver, G.M. Pharr: J. Mater. Res. Vol. 7-6 (1992), p.1564.

[8] K. Wada, N. Yamaguchi and H. Matsubara, Surface and Coatings Technology, Vol. 184 (2004), p.55.

[9] K. Tanaka, K. Suzuki and Y. Yamamoto: ICRS2, Elsevier Applied Science (1989), p.15.

[10] K. Tanaka, N. Mine, K. Suzuki, R. Kawase: J. Soc. Mater. Sci., Japan, Vol. 40 (1991), p.96.

[11] P.J. Withers, M. Rreuss, P.J. Webster, D.J. Hughes and A.M. Korsunsky: Material Sci. Forum, Vol. 404-407 (2002), p.1.

[12] S. Machiya, Y. Akiniwa, K. Suzuki, K. Tanaka, T. Kurimura, H. Oguma: Trans. of JSME, Vol. 54 (2005), p.1530.

[13] K. Wada, N. Yamaguchi and H. Matsubara: Surface and Coatings Technology, Vol. 191 (2005), p.367.
