Stress Corrosion Cracking of Alloys 600, 690, and 800 in a Tetrathionate Solution at 340°C

Eun Hee Lee; Kyung Mo Kim

doi:10.4028/www.scientific.net/MSF.534-536.745

Paper Titles

Sintering Processing of Compressor Flanges
p.729

Sintering Stainless Steels with Boron Addition in Nitrogen Base Atmosphere
p.733

Stable and Unstable Crack Growth in Chromium Pre-Alloyed Steel
p.737

Strain Hardening Behaviour of PM Alloys with Heterogeneous Microstructure
p.741

Stress Corrosion Cracking of Alloys 600, 690, and 800 in a Tetrathionate Solution at 340°C
p.745

Study of Elastic Moduli of Sintered Low Alloy Steels by Acoustic Pulse Method
p.749

The Effect of Chemical Composition of Sintering Atmosphere on the Structure and Mechanical Properties of PM Manganese Steels with Chromium and Molybdenum Additions
p.753

The Effect of Cooling Rate on the Structure and Mechanical Properties of Fe-3%Mn-(Cr)-(Mo)-C PM Steels
p.757

The Sintering Behaviour of Fe-Mn-C Powder System, Correlation between Thermodynamics and Sintering Process, Mn Distribution and Microstructure
p.761

HomeMaterials Science ForumMaterials Science Forum Vols. 534-536Stress Corrosion Cracking of Alloys 600, 690, and...

Stress Corrosion Cracking of Alloys 600, 690, and 800 in a Tetrathionate Solution at 340°C

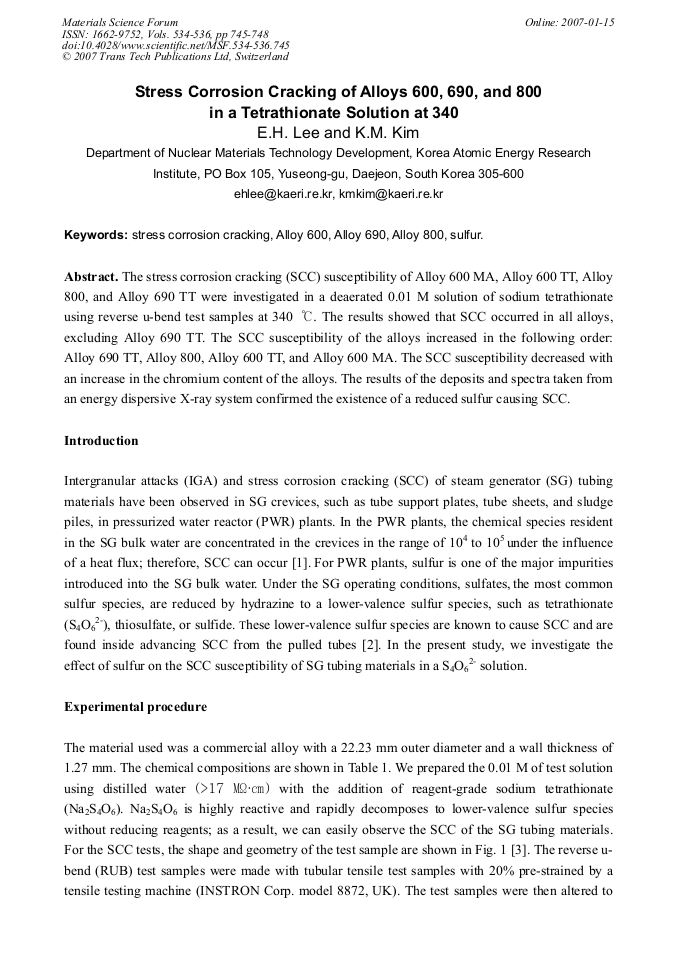

Abstract:

The stress corrosion cracking (SCC) susceptibility of Alloy 600 MA, Alloy 600 TT, Alloy 800, and Alloy 690 TT were investigated in a deaerated 0.01 M solution of sodium tetrathionate using reverse u-bend test samples at 340 °C. The results showed that SCC occurred in all alloys, excluding Alloy 690 TT. The SCC susceptibility of the alloys increased in the following order: Alloy 690 TT, Alloy 800, Alloy 600 TT, and Alloy 600 MA. The SCC susceptibility decreased with an increase in the chromium content of the alloys. The results of the deposits and spectra taken from an energy dispersive X-ray system confirmed the existence of a reduced sulfur causing SCC.
