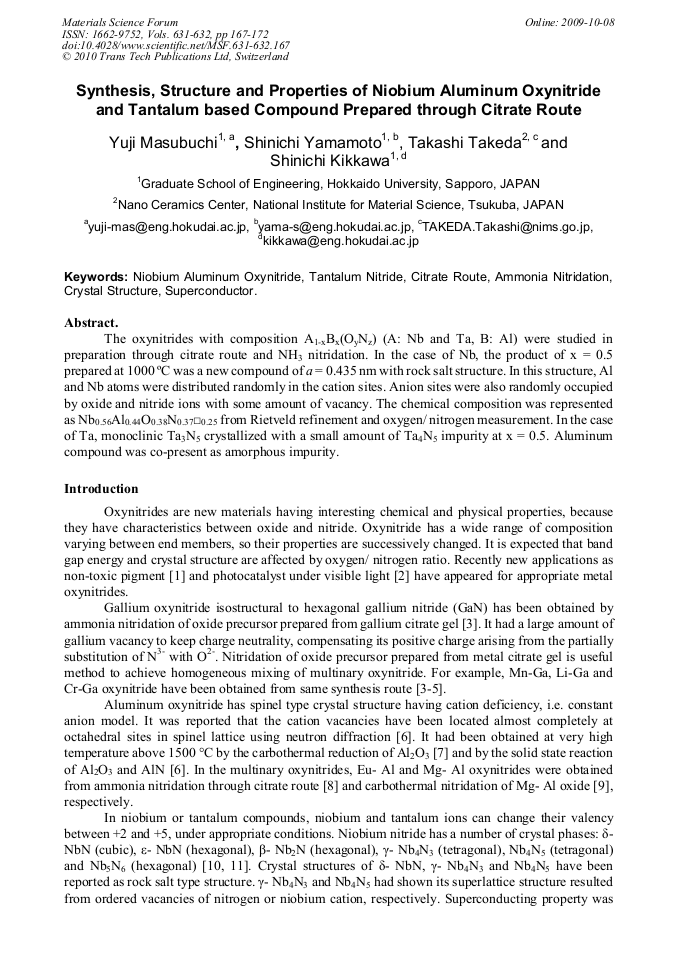

Synthesis, Structure and Properties of Niobium Aluminum Oxynitride and Tantalum Based Compound Prepared through Citrate Route

Abstract:

The oxynitrides with composition A1-xBx(OyNz) (A: Nb and Ta, B: Al) were studied in preparation through citrate route and NH3 nitridation. In the case of Nb, the product of x = 0.5 prepared at 1000 °C was a new compound of a = 0.435 nm with rock salt structure. In this structure, Al and Nb atoms were distributed randomly in the cation sites. Anion sites were also randomly occupied by oxide and nitride ions with some amount of vacancy. The chemical composition was represented as Nb0.56Al0.44O0.38N0.37□0.25 from Rietveld refinement and oxygen/ nitrogen measurement. In the case of Ta, monoclinic Ta3N5 crystallized with a small amount of Ta4N5 impurity at x = 0.5. Aluminum compound was co-present as amorphous impurity.

• Periodical: Materials Science Forum (Volumes 631-632)
• Pages: 167-172
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.631-632.167
• Online since: October 2009
• Authors: Yasuji Masubuchi, Shinichi Yamamoto, Takashi Takeda, Shinichi Kikkawa
• Keywords: Ammonia Nitridation, Citrate Route, Crystal Structure, Niobium Aluminum Oxynitride, Superconductor, Tantalum Nitride

References

[1] M. Jansen and H.P. Letschert, Nature 404 (2000), p.980.

[2] G. Hitoki, A. Ishikawa, T. Takada, J.N. Kondo, M. Hara and K. Domen, Chem. Lett. (2002), p.736.

[3] S. Kikkawa, K. Nagasaka, T. Takeda, M. Bailey, T. Sakurai and Y. Miyamoto, J. Solid State Chem. 180 (2007), p. (1984).

[4] S. Kikkawa, S. Ohtaki, T. Takeda, A. Yoshiasa, T. Sakurai and Y. Miyamoto, J. Alloys Compd. 450 (2008), p.152.

[5] S. Yamamoto, S. Kikkawa, Y. Masubuchi, T. Takeda, H. Wolff, R. Dronskowski and A. Yoshiasa, Solid State Comm. 147 (2008), p.41.

DOI: 10.1016/j.ssc.2008.04.023

[6] H.X. Willems, G. DE With, R. Metselaar, R.B. Helmholdt and K.K. Petersen, J. Mater. Sci. Lett. 12 (1993), p.1470.

[7] M. Ish-Shalom, J. Mater. Sci. Lett. 1 (1982), p.147.

[8] S. Kikkawa, N. Hatta and T. Takeda, J. Am. Ceram. Soc. 91 (2008), p.924.

[9] W. Dai, W. Lin, A. Yamaguchi, J. Ommyoji, J. Yu and Z. Zou, J. Ceram. Soc. Jpn. 115 (2007), p.42.

[10] N. Terao, Jpn. J. Appl. Phys. 4 (1965), p.353.

[11] N. Terao, J. Less-Common Metals 23 (1971), p.159.

[12] B. Scheerer, J. Crystal Growth 49 (1980), p.61.

[13] V. Buscablia, F. caracciolo, M. Ferretti, M. Minguzzi and R. Musenich, J. Alloys Compd. 266 (1998), p.201.

[14] G. Brauer, J. Less-Common Metals 2 (1960), p.131.

[15] A. Tyutyunnik, J. Grins and G. Svensson, J. Alloys Compd. 278 (1998), p.83.

[16] X.Z. Chen and H.A. Eick, J. Solid State Chem. 127 (1996), p.19.

[17] N. Terao, Jpn. J. Appl. Phys. 10 (1971), p.248.

[18] C.M. Fang, E. Orham, G.A. de Wijs, H.T. Hintzen, R.A. de Groot, R. Marchand, J.Y. Saillard and G. de With, J. Mater. Chem. 11 (2001), p.1248.

DOI: 10.1039/b005751g

[19] D. Armytage and B.E.F. Fender, Acta Cryst. B 30 (1974), p.809.

[20] H. Schilling, M. Lerch, A. Borger, K.D. Becker, H. Wolff, R. Dronskowski, T. Bredow, M. Tovar and C. Baehtz, J. Solid State Chem. 179 (2006), p.2416.

DOI: 10.1016/j.jssc.2006.04.036

[21] F. Izumi and T. Ikeda, Mater. Sci. Forum 198 (2000), p.321.
