Microstructure and Texture Evolution in a High Manganes Austenitic Steel During Tensile Test

Abstract:

Article Preview

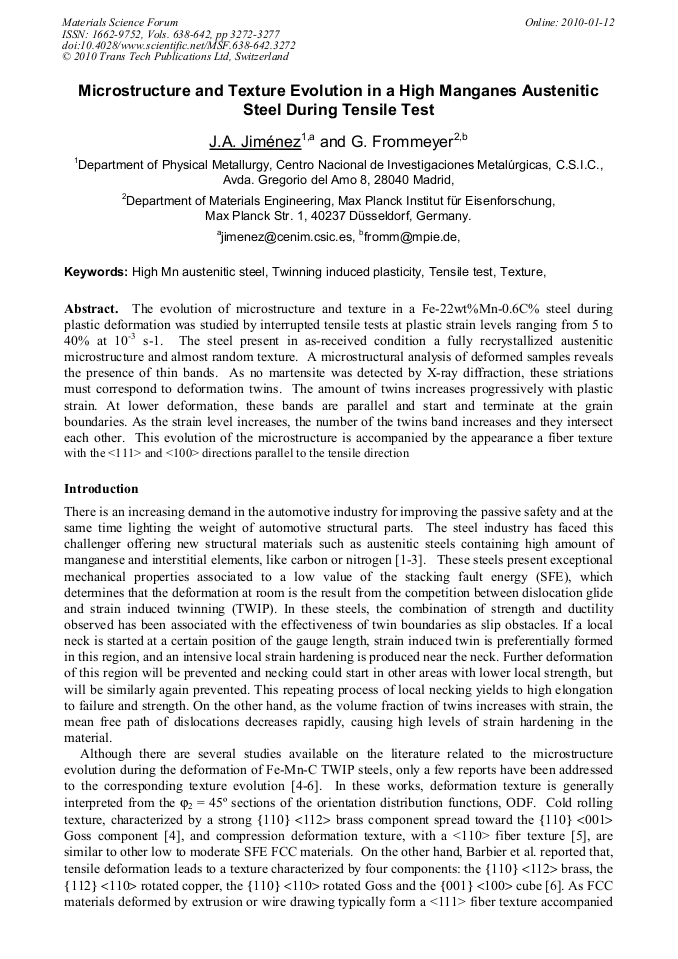

The evolution of microstructure and texture in a Fe-22wt%Mn-0.6C% steel during plastic deformation was studied by interrupted tensile tests at plastic strain levels ranging from 5 to 40% at 10-3 s-1. The steel present in as-received condition a fully recrystallized austenitic microstructure and almost random texture. A microstructural analysis of deformed samples reveals the presence of thin bands. As no martensite was detected by X-ray diffraction, these striations must correspond to deformation twins. The amount of twins increases progressively with plastic strain. At lower deformation, these bands are parallel and start and terminate at the grain boundaries. As the strain level increases, the number of the twins band increases and they intersect each other. This evolution of the microstructure is accompanied by the appearance a fiber texture with the <111> and <100> directions parallel to the tensile direction

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Main Theme:

Edited by:

T. Chandra, N. Wanderka, W. Reimers , M. Ionescu

Pages:

3272-3277

DOI:

10.4028/www.scientific.net/MSF.638-642.3272

Citation:

J. A. Jiménez and G. Frommeyer, "Microstructure and Texture Evolution in a High Manganes Austenitic Steel During Tensile Test", Materials Science Forum, Vols. 638-642, pp. 3272-3277, 2010

Online since:

January 2010

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
