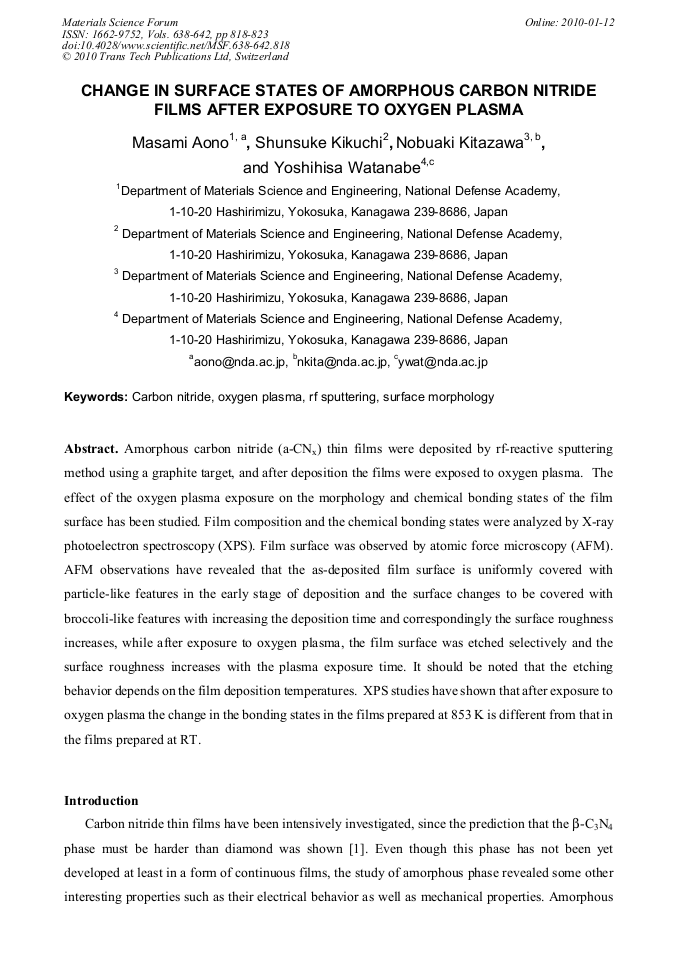

Change in Surface States of Amorphous Carbon Nitride Films after Exposure to Oxygen Plasma

Abstract:

Amorphous carbon nitride (a-CNx) thin films were deposited by rf-reactive sputtering method using a graphite target, and after deposition the films were exposed to oxygen plasma. The effect of the oxygen plasma exposure on the morphology and chemical bonding states of the film surface has been studied. Film composition and the chemical bonding states were analyzed by X-ray photoelectron spectroscopy (XPS). Film surface was observed by atomic force microscopy (AFM). AFM observations have revealed that the as-deposited film surface is uniformly covered with particle-like features in the early stage of deposition and the surface changes to be covered with broccoli-like features with increasing the deposition time and correspondingly the surface roughness increases, while after exposure to oxygen plasma, the film surface was etched selectively and the surface roughness increases with the plasma exposure time. It should be noted that the etching behavior depends on the film deposition temperatures. XPS studies have shown that after exposure to oxygen plasma the change in the bonding states in the films prepared at 853 K is different from that in the films prepared at RT.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 818-823
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.818
• Online since: January 2010
• Authors: Masami Aono, Shunsuke Kikuchi, Nobuaki Kitazawa, Yoshihisa Watanabe
• Keywords: Carbon Nitride, Oxygen Plasma, RF Sputtering, Surface Morphology

References

[1] A. Y. Liu and M. L. Cohen: Science Vol. 245 (1989), p.841.

[2] T. Katsuno, S. Nitta, and H. Habuchi: Diamond Relat. Mater. Vol. 11 (2002), p.1215.

[3] S. Nitta, M. Aono, T. Katsuno, Y. Naruse: Diamond Relat. Mater. Vol. 12 (2003), p.219.

[4] M. Aono Y. Naruse, S. Nitta, and T. Katsuno: Diamond Relat. Mater. Vol. 10 (2001), p.1219.

[5] T. Katsuno, S. Nitta, H. Habuchi, V. Stolojan, S. R. P. Silva: Appl. Phys. Lett. Vol. 85 (2004), p.2803.

[6] Y. Naruse, S. Nitta, H. Habuchi: Mat. Res. Soc. Symp. Proc. Vol. 675 (2001), p. W10. 5. 1.

[7] S. Kumar and C. Godet: Solid State Commun. Vol. 130 (2004), p.331.

[8] R. -S. Chu and S. -T. Shiue: Surface and Coatings Technol. Vol. 202 (2008), p.5364.

[9] M. Aono and S. Nitta: Diamond Relat. Mater. Vol. 11 (2002), p.1219.

[10] K. J. Boyd, D. Marton, S.S. Todorov, A.H. Al-Bayati, J. Kulik, R.A. Zuhr, J.W. Rabalais: J. Vac. Sci. Technol. A Vol. 13 (1995), p.2110.

[11] B. Kleinsorge, A. C. Ferrari, J. Robertson, W. I. Milne, S. Waidmann, and S. Hearne: Diamond Relat. Mater. Vol. 9 (2000), p.643.

DOI: 10.1016/s0925-9635(99)00309-x

[12] J. Schwan, V. Batori, S. Ulrich, H. Ehrhardt, and S. R. P. Silva: J. Appl. Phys. Vol. 84 (1998), p. (2071).

[13] M. Aono, N. Tamura, S. Kikuchi, N. Kitazawa, and Y. Watanabe: to be published.
