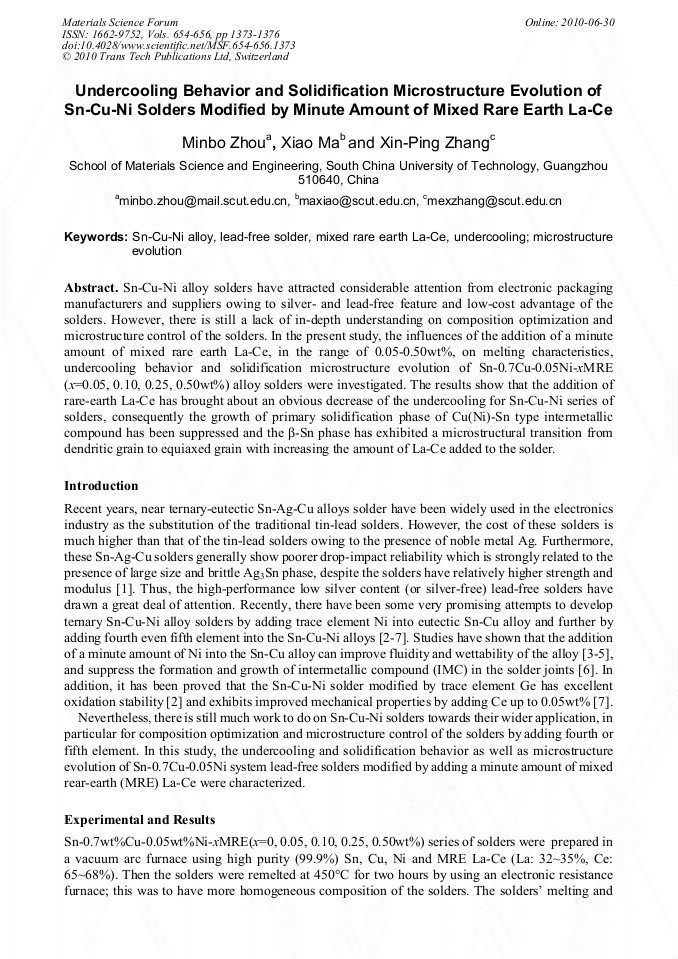

Undercooling Behavior and Solidification Microstructure Evolution of Sn-Cu-Ni Solders Modified by Minute Amount of Mixed Rare Earth La-Ce

Abstract:

Sn-Cu-Ni alloy solders have attracted considerable attention from electronic packaging manufacturers and suppliers owing to silver- and lead-free feature and low-cost advantage of the solders. However, there is still a lack of in-depth understanding on composition optimization and microstructure control of the solders. In the present study, the influences of the addition of a minute amount of mixed rare earth La-Ce, in the range of 0.05-0.50wt%, on melting characteristics, undercooling behavior and solidification microstructure evolution of Sn-0.7Cu-0.05Ni-xMRE (x=0.05, 0.10, 0.25, 0.50wt%) alloy solders were investigated. The results show that the addition of rare-earth La-Ce has brought about an obvious decrease of the undercooling for Sn-Cu-Ni series of solders, consequently the growth of primary solidification phase of Cu(Ni)-Sn type intermetallic compound has been suppressed and the β-Sn phase has exhibited a microstructural transition from dendritic grain to equiaxed grain with increasing the amount of La-Ce added to the solder.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 1373-1376
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.1373
• Online since: June 2010
• Authors: Min Bo Zhou, Xiao Ma, Xin Ping Zhang
• Keywords: Lead-Free Solder, Micro-Structure Evolution, Mixed Rare Earth La-Ce, Sn-Cu-Ni Alloy, Undercooling

References

[1] R.S. Pandher, B.G. Lewis, R. Vangaveti and B. Singh. Proceedings of 57th Electronic Components and Technology Conference (2007 ), p.669.

[2] T. Nishimura and N. Tetsuro, U. S. Patent 6, 180, 055 B1. (2001).

[3] M.J. Rizvi, C. Bailey, Y.C. Chan and H. Lu: J. Alloy. Compd. Vol. 438 (2007), p.116.

[4] T. Ventura, C. Gourlay, K. Nogita, T. Nishimura, M. Rappaz and A. Dahle: J. Electron. Mater. Vol. 37(2008), p.32.

[5] C.M. Gourlay, J. Read, K. Nogita and A.K. Dahle: J. Electron. Mater. Vol. 37(2008), p.51.

[6] M.J. Rizvi, C. Bailey, Y.C. Chan and H. Lu: J. Alloy. Compd. Vol. 438(2007), p.122.

[7] J.X. Wang, S.B. Xue, Z.J. Han, S.L. Yu, Y. Chen, Y.P. Shi and H. Wang: J. Alloy. Compd. Vol. 467(2009), p.219.

[8] K. Nogita and T. Nishimura: Scr. Mater. Vol. 59(2008), p.191.

[9] K. Nogita: Intermetallics. Vol. 18(2009), p.145.

[10] S. Gruner, I. Kaban, R. Kleinhempel, W. Hoyer, P. Jóvári and R.G. Delaplane: Journal of Non-Crystalline Solids. Vol. 351(2005), p.3490.

DOI: 10.1016/j.jnoncrysol.2005.08.037

[11] W.D. Callister: Materials Science and Engineering-An Introduction (John Wiley & Sons, New York 2007).

[12] C.M.L. Wu, D.Q. Yu, C.M.T. Law and L. Wang: Materials Science and Engineering R-Reports. Vol. 44(2004).
