The Character of Melt of A357 Alloy and Its Influences on the Solidification Microstructures

Rong Zhang; Li Min Zhang; Zhi Huai Yang; Lin Liu

doi:10.4028/www.scientific.net/MSF.654-656.1412

Paper Titles

Formation of Primary Intermetallic Compounds in Sn-Ag-Cu Alloys
p.1397

Electromagnetic Continuous Casting Process for Near Net Shape Aluminum Alloy Billet
p.1400

Monte Carlo Simulation of Thermophysical Properties for Al-Ce Liquid Alloys
p.1404

Semisolid Sinter-Forging of Hyper-Eutectic Al-Si Alloy Using Rapid Resistance Heating
p.1408

The Character of Melt of A357 Alloy and Its Influences on the Solidification Microstructures
p.1412

Improving the Microstructures and Mechanical Properties of Hypereutectic Al-Si Alloys by Spray Forming Technique
p.1416

Mechanical Properties and Microstructure of Aluminum Alloy Al-6061 Obtained by the Liquid Forging Process
p.1420

Effect of Various Processing Route on Microstructure and Mechanical Properties of Spray-Deposited Al-8.6Zn-2.6Mg-2.2Cu Alloy
p.1424

Microstructure and Mechanical Properties of a Friction Stir Processed Al-Zn-Mg-Cu Alloy
p.1428

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656The Character of Melt of A357 Alloy and Its...

The Character of Melt of A357 Alloy and Its Influences on the Solidification Microstructures

Abstract:

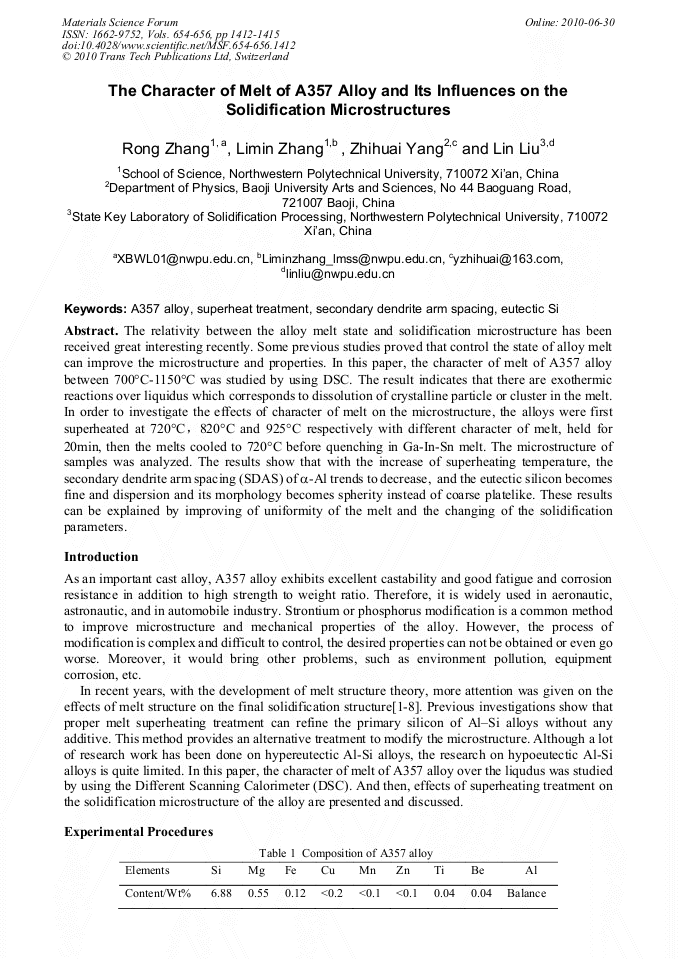

The relativity between the alloy melt state and solidification microstructure has been received great interesting recently. Some previous studies proved that control the state of alloy melt can improve the microstructure and properties. In this paper, the character of melt of A357 alloy between 700°C-1150°C was studied by using DSC. The result indicates that there are exothermic reactions over liquidus which corresponds to dissolution of crystalline particle or cluster in the melt. In order to investigate the effects of character of melt on the microstructure, the alloys were first superheated at 720°C，820°C and 925°C respectively with different character of melt, held for 20min, then the melts cooled to 720°C before quenching in Ga-In-Sn melt. The microstructure of samples was analyzed. The results show that with the increase of superheating temperature, the secondary dendrite arm spacing (SDAS) of -Al trends to decrease, and the eutectic silicon becomes fine and dispersion and its morphology becomes spherity instead of coarse platelike. These results can be explained by improving of uniformity of the melt and the changing of the solidification parameters.
