On Applicability of Time-Resolved Optical Techniques for Characterization of Differently Grown 3C-SiC Crystals and Heterostructures

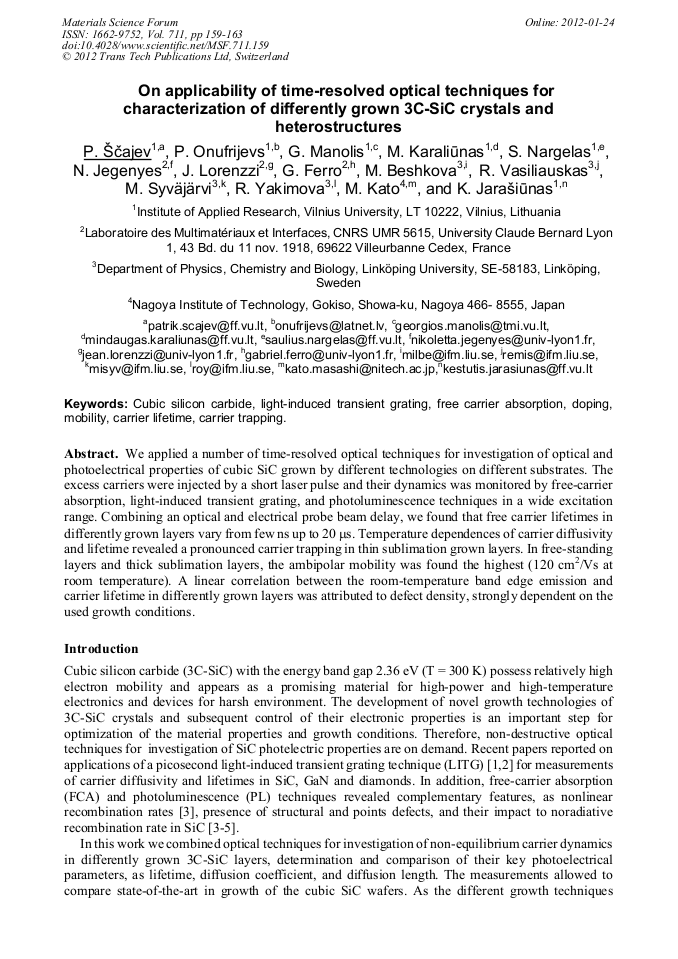

Article Preview

Abstract:

We applied a number of time-resolved optical techniques for investigation of optical and photoelectrical properties of cubic SiC grown by different technologies on different substrates. The excess carriers were injected by a short laser pulse and their dynamics was monitored by free-carrier absorption, light-induced transient grating, and photoluminescence techniques in a wide excitation range. Combining an optical and electrical probe beam delay, we found that free carrier lifetimes in differently grown layers vary from few ns up to 20 μs. Temperature dependences of carrier diffusivity and lifetime revealed a pronounced carrier trapping in thin sublimation grown layers. In free-standing layers and thick sublimation layers, the ambipolar mobility was found the highest (120 cm2/Vs at room temperature). A linear correlation between the room-temperature band edge emission and carrier lifetime in differently grown layers was attributed to defect density, strongly dependent on the used growth conditions.

You might also be interested in these eBooks

Info:

[1] K. Jarašiūnas, in: Wide Bandgap Materials and New Developments, edited by M. Syvajarvi and R. Yakimova (Research Singpost, 2006), Chapter 5, p.117.

Google Scholar

[2] K. Neimontas, T. Malinauskas, R. Aleksiejūnas, M. Sūdžius, K. Jarašiūnas, L. Storasta, J.P. Bergman, and E. Janzen: Semicond. Sci. Technol. Vol. 21 (2006), pp.952-958.

DOI: 10.1088/0268-1242/21/7/021

Google Scholar

[3] P. Ščajev, V. Gudelis, K. Jarašiūnas and P.B. Klein, J. Appl. Phys. 108 (2010), p.023705.

Google Scholar

[4] P. B. Klein, J. Appl. Phys. Vol. 103 (2008), p.033702.

Google Scholar

[5] G. Feng, J. Suda and T. Kimoto, Mater. Sci. Forum Vols. 679-680 (2011), pp.302-305.

Google Scholar

[6] G. Ferro, Mater. Sci. Forum Vols. 645-648 (2010), pp.49-54.

Google Scholar

[7] G. Manolis, G. Zoulis, S. Juillaguet, J. Lorenzzi, G. Ferro, J. Camassel and K. Jarašiūnas, Mater. Sci. Forum Vols. 645-648 (2010), pp.443-446.

DOI: 10.4028/www.scientific.net/msf.645-648.443

Google Scholar

[8] N. Jegenyes, G. Manolis, J. Lorenzzi, V. Soulière, D. Dompoint, A. Boulle, G. Ferro, K. Jarašiūnas, Mater. Sci. Forum Vols. 679-680 (2011), pp.153-156.

DOI: 10.4028/www.scientific.net/msf.679-680.153

Google Scholar

[9] P. Ščajev, J. Hassan, K. Jarašiūnas, M. Kato, A. Henry and J. P. Bergman, Journ. Electron. Matt. Vol. 40 (2010), pp.394-399.

Google Scholar

[10] G. Manolis, M. Beshkova, M. Syväjärvi, R. Yakimova and K. Jarašiūnas, Mater. Sci. Forum Vols. 679-680 (2011), pp.161-164.

DOI: 10.4028/www.scientific.net/msf.679-680.161

Google Scholar

[11] P. Ščajev, K. Jarašiūnas, A. Kadys, J. Storasta, P. L. Abramov, S. P. Lebedev, and A. A. Lebedev, AIP Conference Proceedings Vol. 1292 (2010), pp.107-110.

Google Scholar

[12] J. Pernot, S. Contreras, and J. Camassel, J. Appl. Phys. Vol. 98 (2005), p.023706.

Google Scholar

[13] C. Persson, U. Lindefelt, and B. E. Sernelius, Solid State Electron. Vol. 44 (2000), pp.471-476.

Google Scholar

[14] P. Grivickas, A. Martinez, I. Mikulskas, V. Grivickas, R. Tomašiunas, J. Linnros and U. Lindefelt, Mater. Sci. Forum Vols. 354-356 (2001), pp.353-356.

DOI: 10.4028/www.scientific.net/msf.353-356.353

Google Scholar

[15] S. G. Sridhara, T. J. Eperjesi, R. P. Devaty, W. J. Choyke, Mater. Sci. Eng. Vol. B61-62 (1999), pp.229-233.

Google Scholar
