Preparation of Porous Alumina Powder Using Sol Containing Trehalose Dihydrate

Takeshi Miki; Yutaka Tai

doi:10.4028/www.scientific.net/MSF.724.217

Paper Titles

Effects of β-Si₃N₄ Seeds Addition on Microstructure and Mechanical Properties of Porous Si₃N₄ Ceramics
p.201

Synthesis of ZnO Nanorods with Tunable Aspect Ratio
p.205

Effect of Size and Stress Field on Electronic Properties of ZnO Nanowires
p.209

Hydrogen Permeability of NiO-Doped Alumina with Nickel Composites Membrane
p.213

Preparation of Porous Alumina Powder Using Sol Containing Trehalose Dihydrate
p.217

Research on Production of Bluecoke with Low Temperature Carbonization Process
p.221

Synthesis and Characterization of Sn Doped SiO₂ by Reverse Micelle and Sol-Gel Process
p.225

Development of Dynamically-Formed Membranes Using Colloidal Silica and Kaolin
p.229

Preparation of Lanthanum Oxide Nanoparticles by Chemical Precipitation Method
p.233

HomeMaterials Science ForumMaterials Science Forum Vol. 724Preparation of Porous Alumina Powder Using Sol...

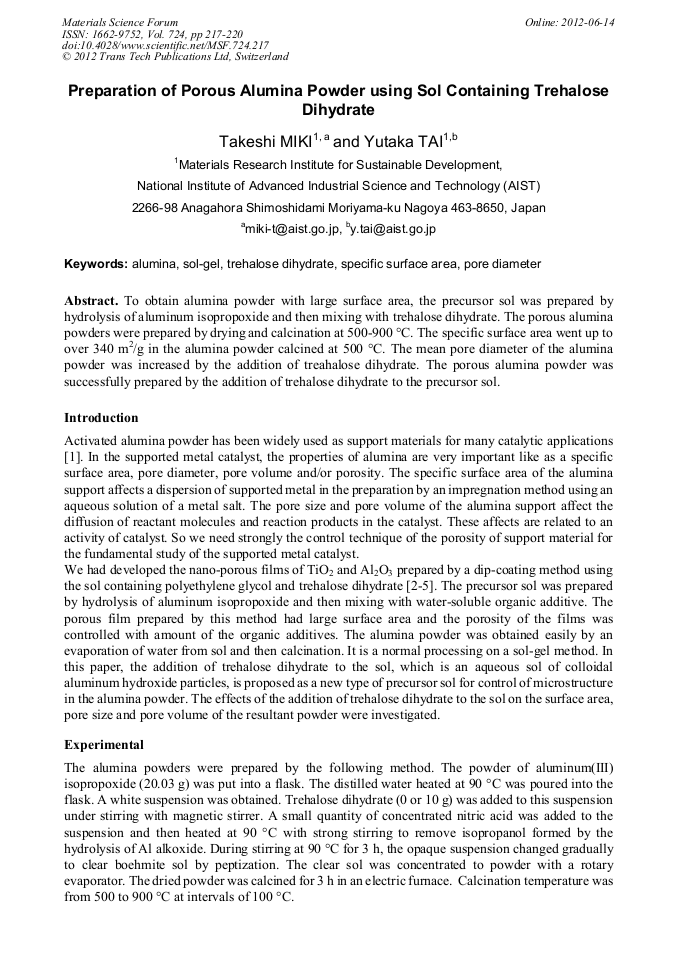

Preparation of Porous Alumina Powder Using Sol Containing Trehalose Dihydrate

Abstract:

To obtain alumina powder with large surface area, the precursor sol was prepared by hydrolysis of aluminum isopropoxide and then mixing with trehalose dihydrate. The porous alumina powders were prepared by drying and calcination at 500-900 °C. The specific surface area went up to over 340 m²/g in the alumina powder calcined at 500 °C. The mean pore diameter of the alumina powder was increased by the addition of treahalose dihydrate. The porous alumina powder was successfully prepared by the addition of trehalose dihydrate to the precursor sol.
