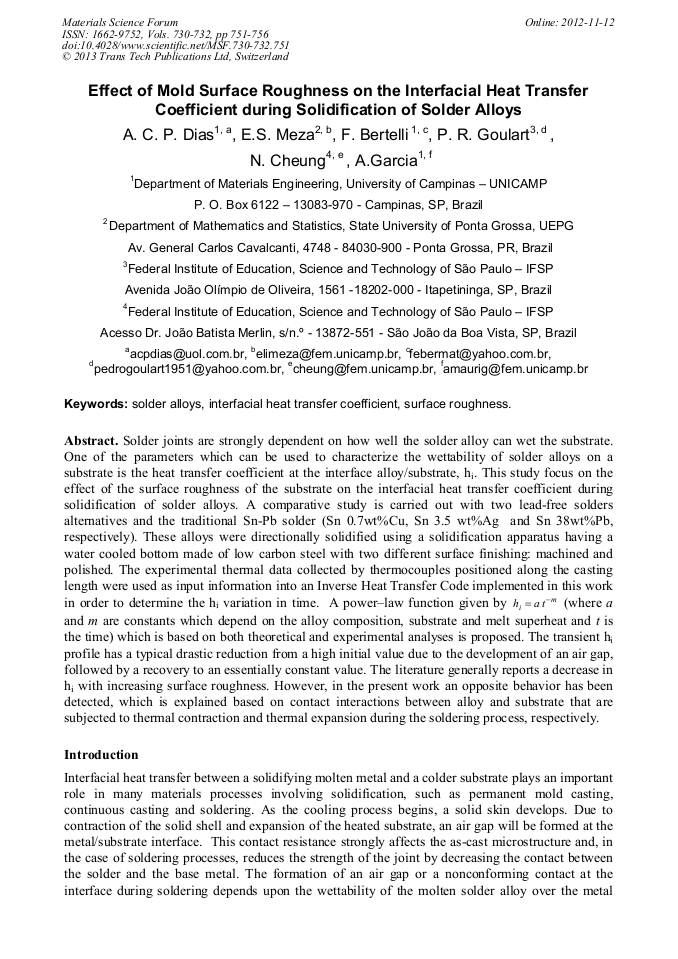

Effect of Mold Surface Roughness on the Interfacial Heat Transfer Coefficient During Solidification of Solder Alloys

Abstract:

Solder joints are strongly dependent on how well the solder alloy can wet the substrate. One of the parameters which can be used to characterize the wettability of solder alloys on a substrate is the heat transfer coefficient at the interface alloy/substrate, h_i. This study focus on the effect of the surface roughness of the substrate on the interfacial heat transfer coefficient during solidification of solder alloys. A comparative study is carried out with two lead-free solders alternatives and the traditional Sn-Pb solder (Sn 0.7wt%Cu, Sn 3.5 wt%Ag and Sn 38wt%Pb, respectively). These alloys were directionally solidified using a solidification apparatus having a water cooled bottom made of low carbon steel with two different surface finishing: machined and polished. The experimental thermal data collected by thermocouples positioned along the casting length were used as input information into an Inverse Heat Transfer Code implemented in this work in order to determine the h_i variation in time. A power–law function given by (where a and m are constants which depend on the alloy composition, substrate and melt superheat and t is the time) which is based on both theoretical and experimental analyses is proposed. The transient h_i profile has a typical drastic reduction from a high initial value due to the development of an air gap, followed by a recovery to an essentially constant value. The literature generally reports a decrease in h_i with increasing surface roughness. However, in the present work an opposite behavior has been detected, which is explained based on contact interactions between alloy and substrate that are subjected to thermal contraction and thermal expansion during the soldering process, respectively.

• Periodical: Materials Science Forum (Volumes 730-732)
• Pages: 751-756
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.730-732.751
• Online since: November 2012
• Authors: Antonio Carlos Pires Dias, Elisangela dos Santos Meza, F. Bertelli, Pedro R. Goulart, Noé Cheung, Amauri Garcia
• Keywords: Interfacial Heat Transfer Coefficient, Solder Alloys, Surface Roughness (SR)

References

[1] X. Li, F. Zhang, F. Zu, X. Lv, Z. Zhao, D. Yang, Effect of liquid–liquid structure transition on solidification and wettability of Sn–0. 7Cu solder, J. Alloys Compd. 505 (2010) 472-475.

DOI: 10.1016/j.jallcom.2010.06.087

[2] W. D. Griffiths , R. Kayikci, The effect of varying chill surface roughness on interfacial heat transfer during casting solidification, J. Mater. Sci. 42(2007) 4036-4043.

DOI: 10.1007/s10853-006-0388-x

[3] T. Loulou, E. A. Artyukhin, J. P. Bardon, Estimation of thermal contract resistance during the first stages of metal solidification process: II—experimental setup and results, Int. J. Heat Mass Tran. 42(1999) 2129-2142.

DOI: 10.1016/s0017-9310(98)00338-x

[4] M. Kamal, T. El-Ashram, Microcreep of rapidly solidified Sn–0. 7 wt. % Cu–In solder alloys, Mater. Sci. Eng. A 456 (2007) 1-4.

DOI: 10.1016/j.msea.2007.01.056

[5] J. Shen, Y. Liu, Y. Han, H. Gao, C. Wei, Y. Yang, Effects of cooling rates on microstructure and microhardness of lead-free Sn-3. 5% Ag solders, Trans. Nonferrous Met. Soc. China 16 (2006) 59-64.

DOI: 10.1016/s1003-6326(06)60011-3

[6] A.U. Telang, T.R. Bieler, Characterization of microstructure and crystal orientation of the tin phase in single shear lap Sn–3. 5Ag solder joint specimens, Scripta Mater. 52 (2005) 1027-1031.

DOI: 10.1016/j.scriptamat.2005.01.043

[7] D. Q. Yu, L. Wang, C. M. L. Wu, C. M. T. Law, The formation of nano-Ag3Sn particles on the intermetallic compounds during wetting reaction, J. Alloys Compd. 389 (2005) 153.

DOI: 10.1016/j.jallcom.2004.08.017

[8] N. Cheung, I. L. Ferreira, M. M. Pariona, J. M.V. Quaresma, A. Garcia, Melt characteristics and solidification growth direction with respect to gravity affecting the interfacial heat transfer coefficient of chill castings, Mater. Design 30 (2009).

DOI: 10.1016/j.matdes.2009.02.025

[9] J. C. Hwang, H. T. Chuang, S. H. Jong, W. S. Hwang, Measurement of heat transfer coefficient at metal/mould interface during casting, AFS Trans. 102 (1994) 877-883.

[10] M. Krishnan, D. G. R. Sharma, Determination of the interfacial heat transfer coefficient h in unidirectional heat flow by Beck's non linear estimation procedure, Int. Commun. Heat Mass Transfer 23 (1996) 203-214.

DOI: 10.1016/0735-1933(96)00006-1

[11] J. V. Beck, Nonlinear estimation applied to the nonlinear inverse heat conduction problem, Int. J. Heat Mass Tran. 13 (1970) 703-716.

DOI: 10.1016/0017-9310(70)90044-x

[12] K. Ho, R. D. Pehlke, Transient methods for determination of metal - mold interfacial heat transfer, AFS Trans. 91 (1983) 689-698.

[13] C.A. Siqueira, N. Cheung, A. Garcia, The columnar to equiaxed transition during solidification of Sn–Pb alloys, J. Alloys Compd. 351 (2003) 126-134.

DOI: 10.1016/s0925-8388(02)01026-5

[14] P.R. Goulart, J.E. Spinelli, N. Cheung, I.L. Ferreira, A. Garcia, Cellular growth during transient directional solidification of hypoeutectic Al–Fe alloys, J. Alloys Compd. 470 (2009), 589-599.

DOI: 10.1016/j.jallcom.2009.09.029
